Industrial Fastener Training Program

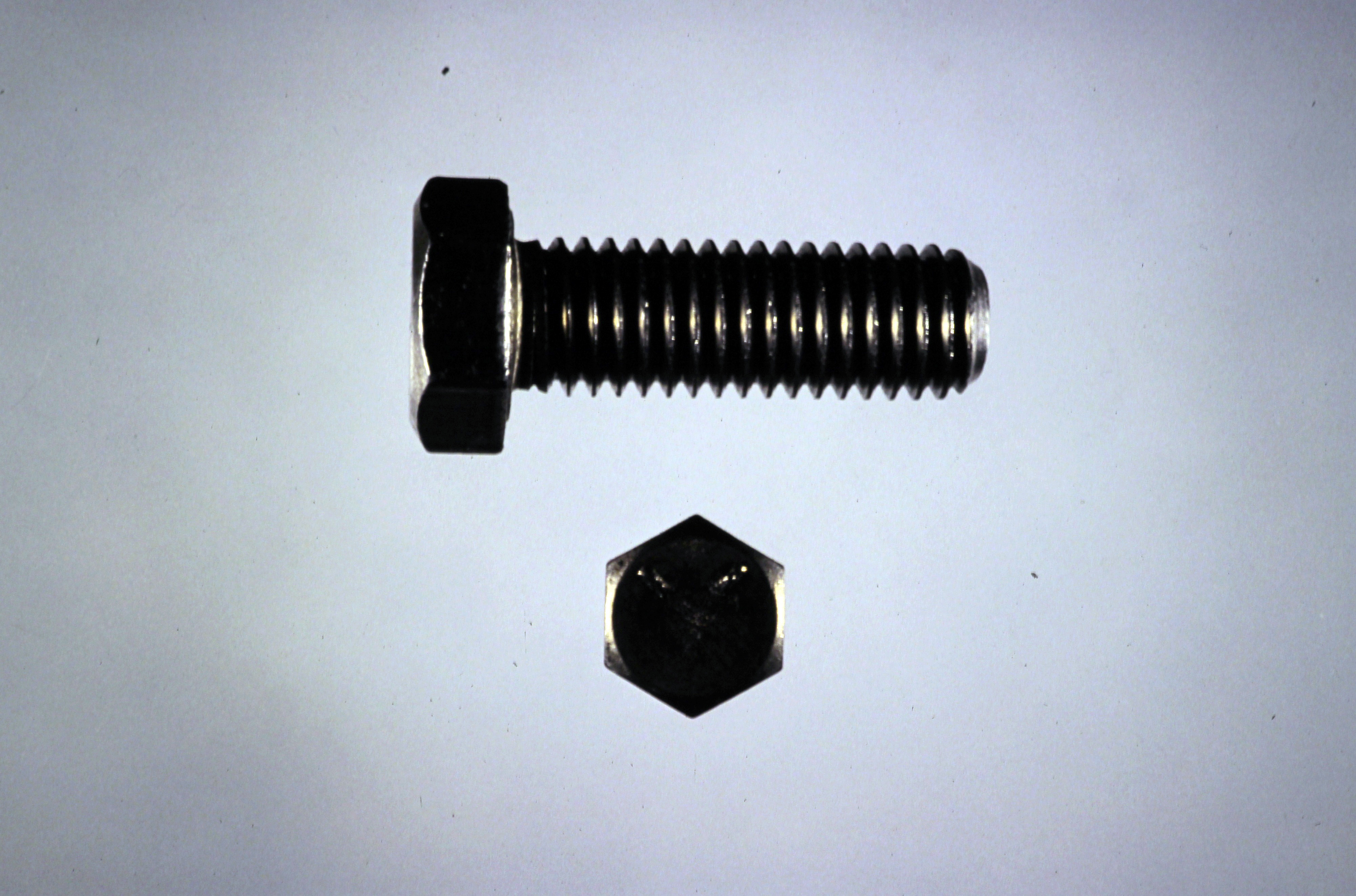

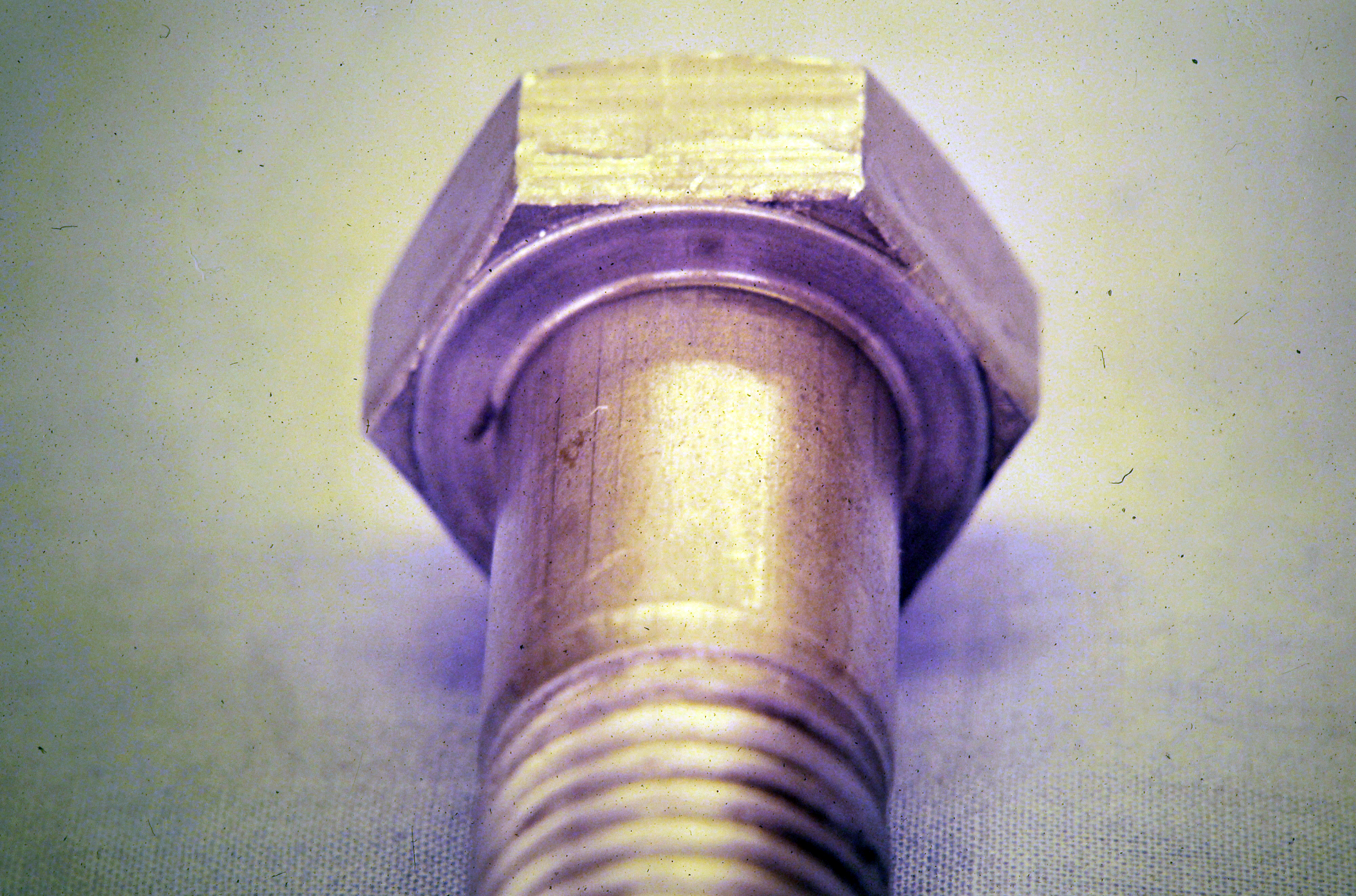

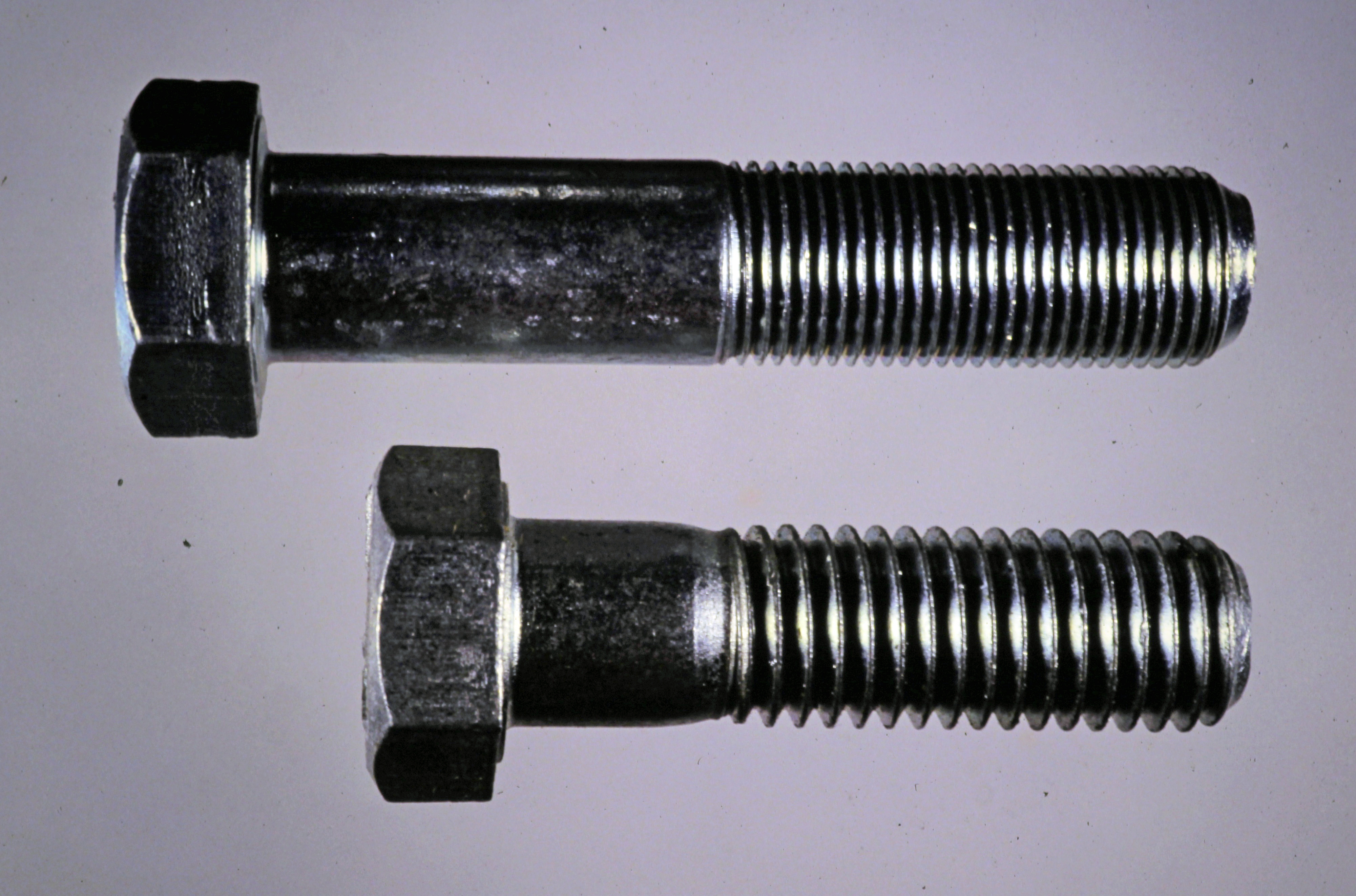

Washer Face of a Hex Head Cap Screw, an identifying mark for Cap Screws!

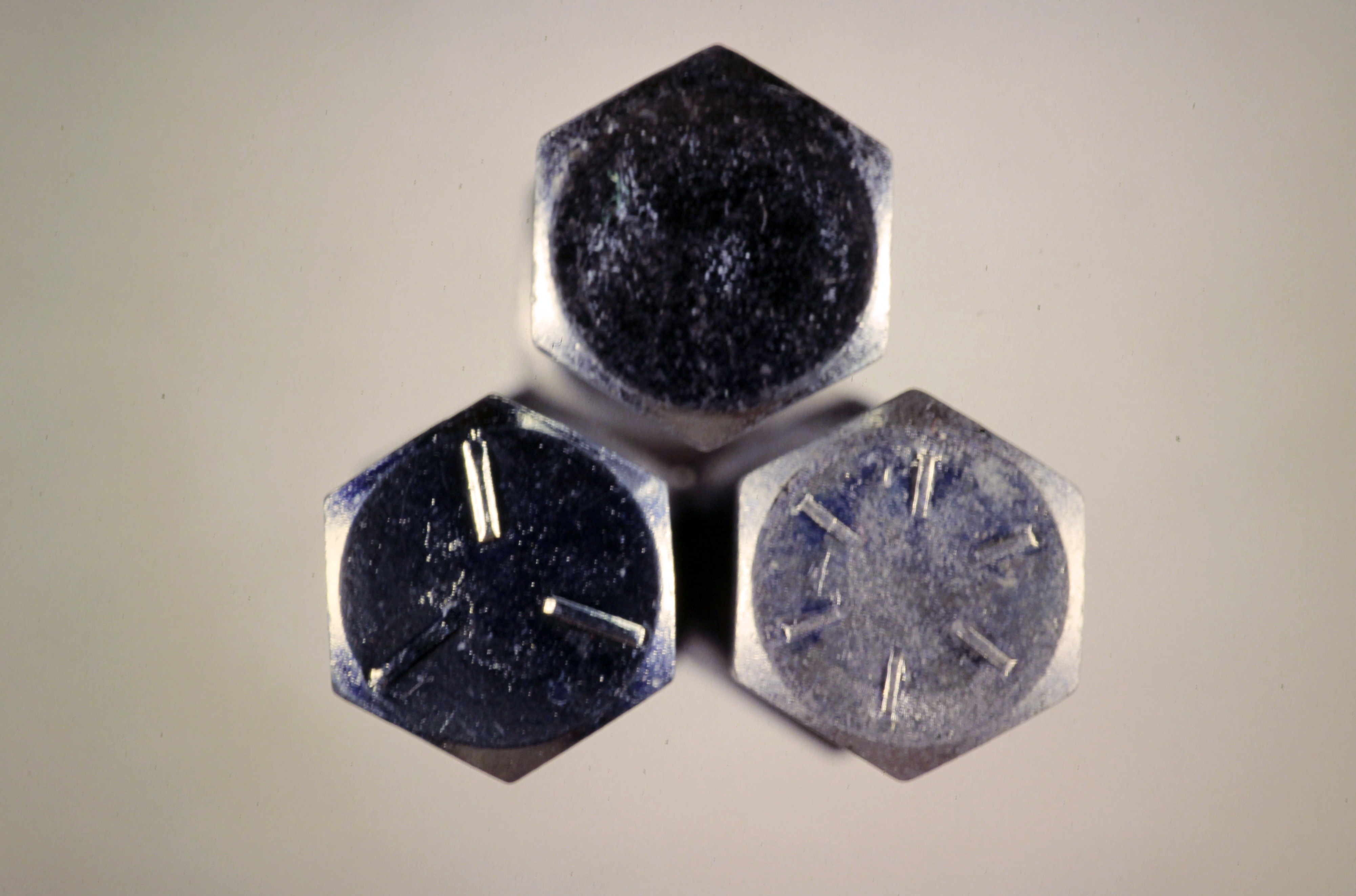

Grade Markings of Hex Head Cap Screws: Plain Grade 2 - Grade 5 (3 dashes) - Grade 8 (6 dashes)

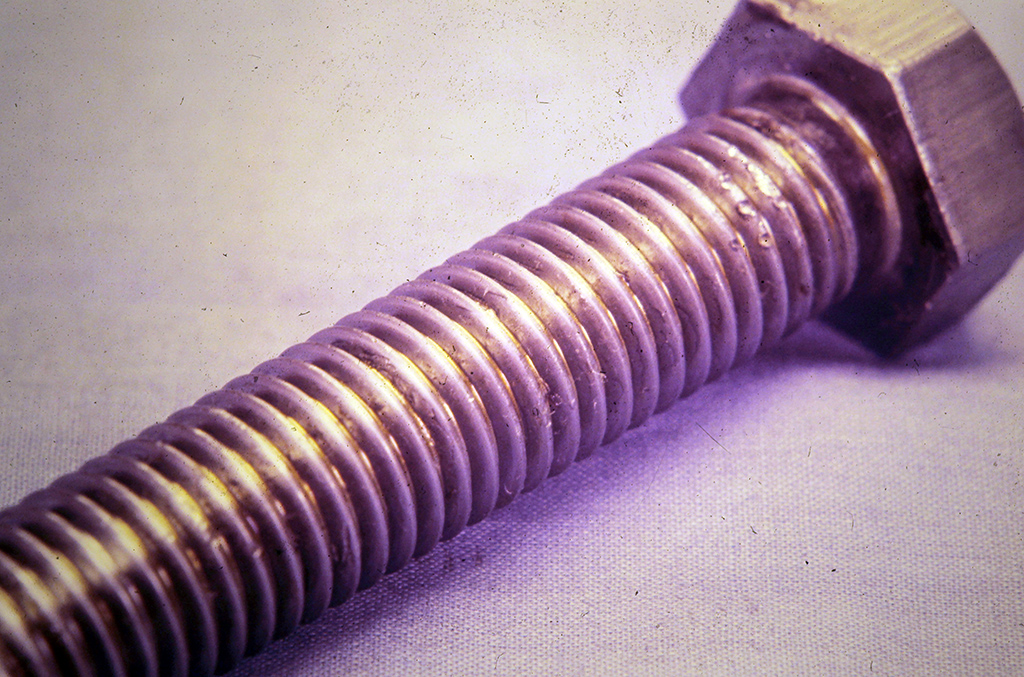

Stainless Steel Hex Head Cap Screw

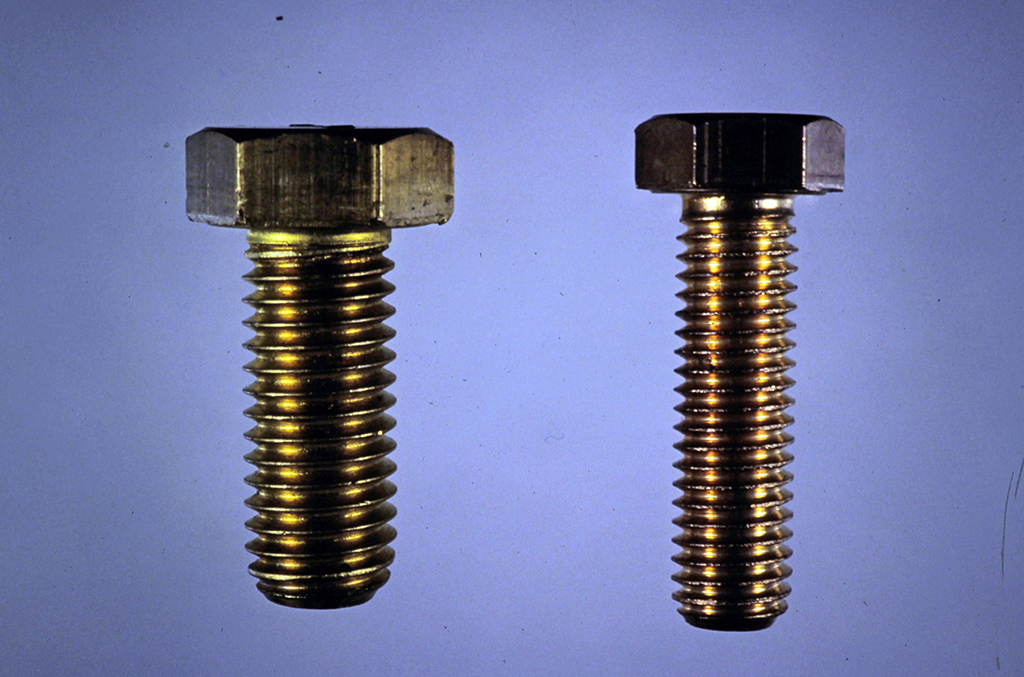

Brass & Bronze Hex Head Cap Screws

Brass, Aluminum Stainless Hex Head Cap Screws

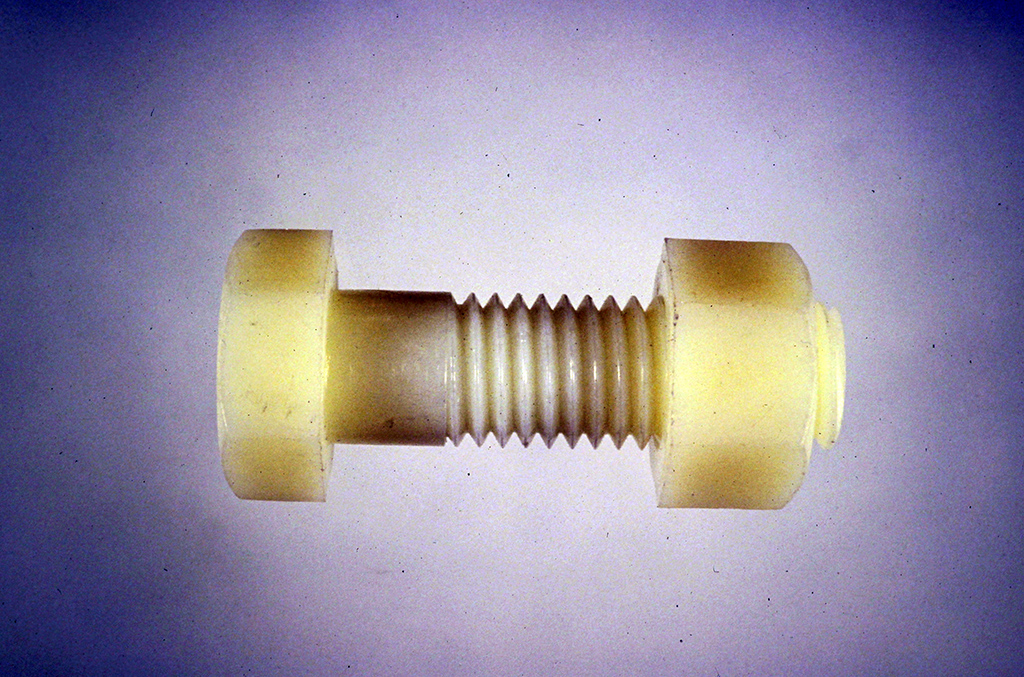

Nylon Hex Head Cap Screw

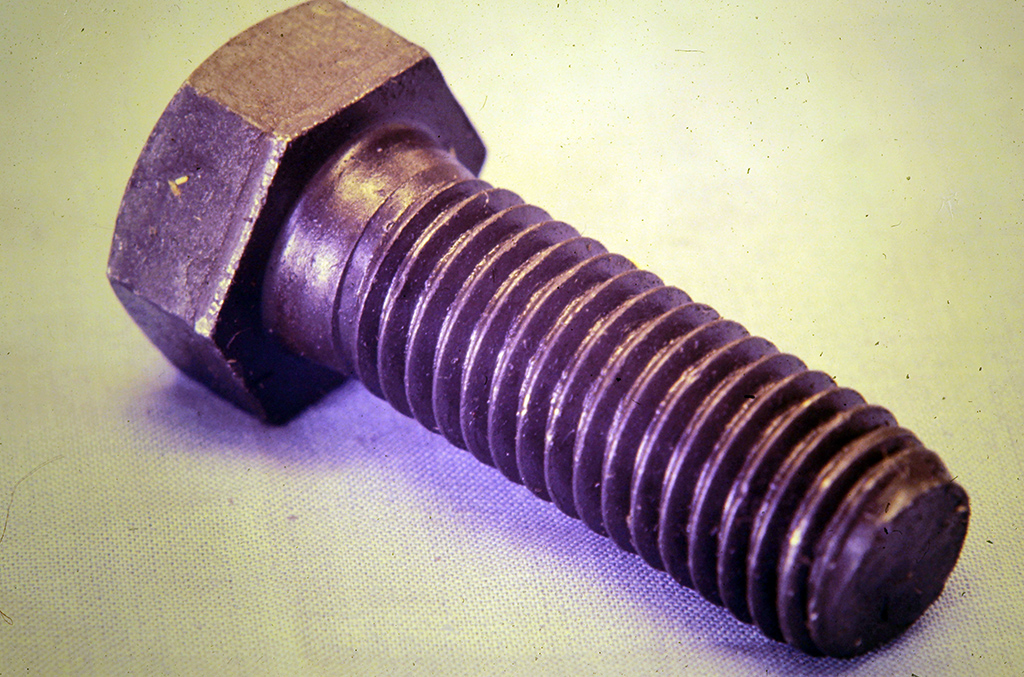

Hex Head Steel Machine Bolt (NO washer face)

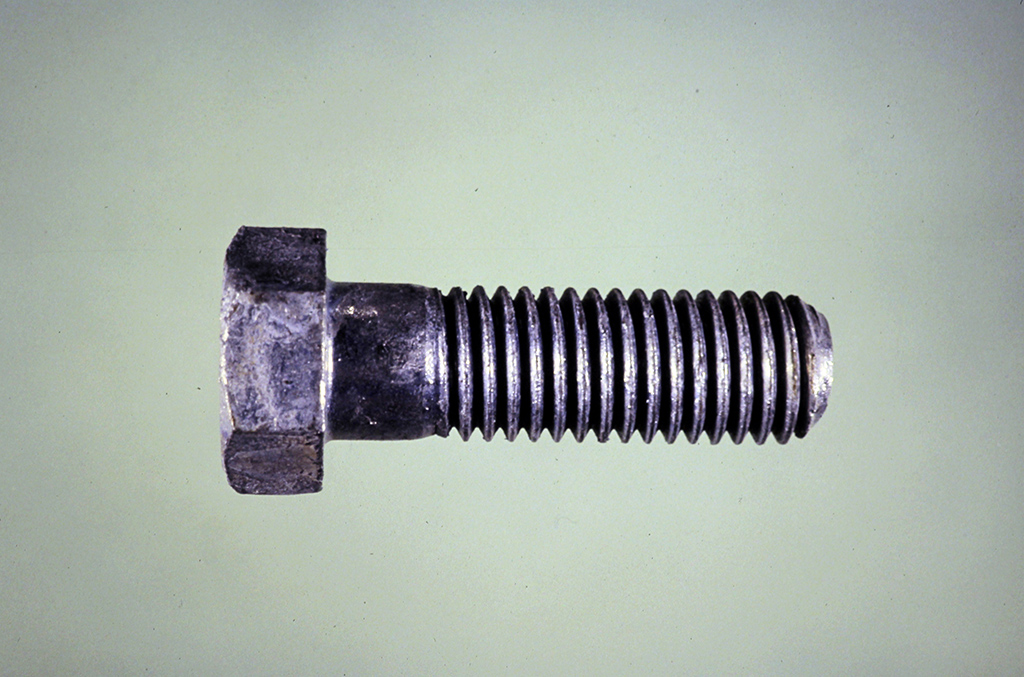

Hex Head Machine Bolt (Hot Dipped Galvanized)

Hex Head Tap Bolt, Full Threaded

Square Head Machine Bolt

A-325 Hex Head Structural Bolt

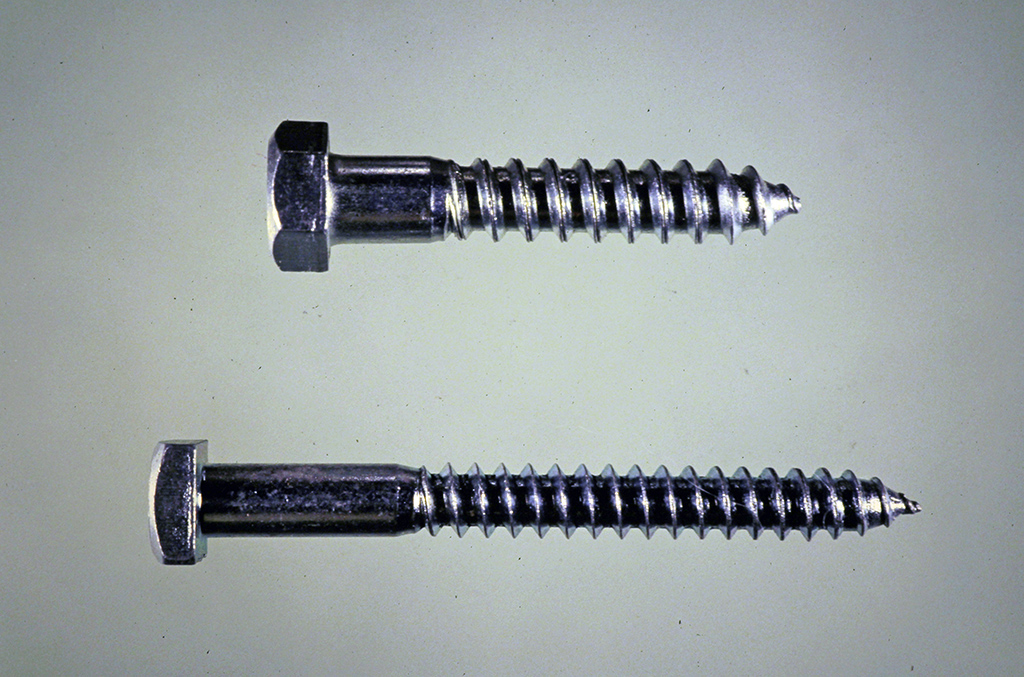

Hex Head & Square Head Lag Screws

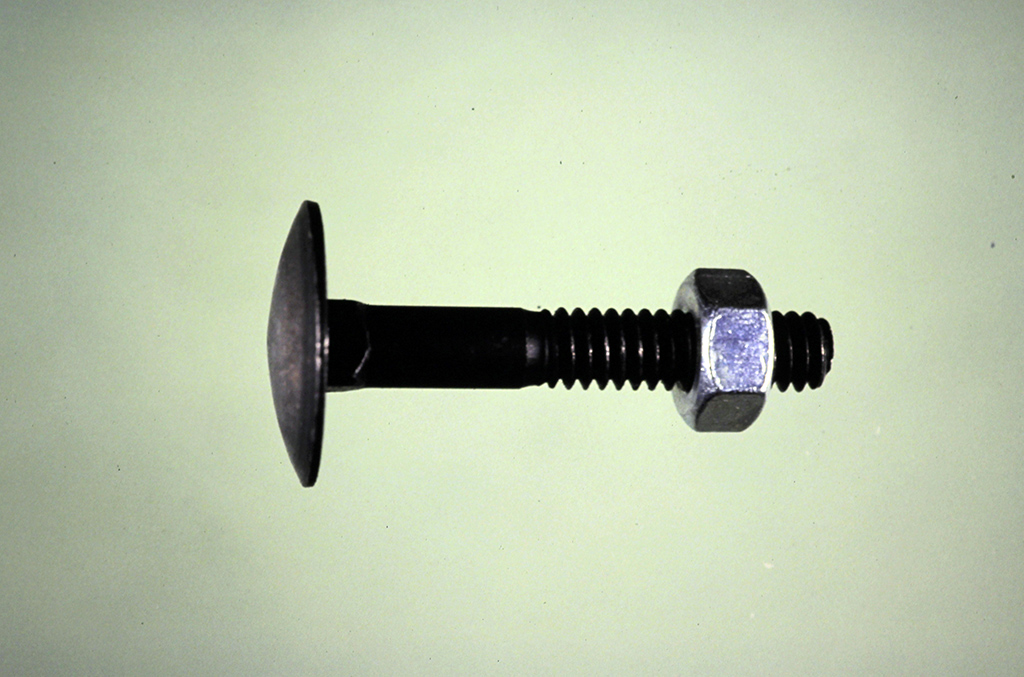

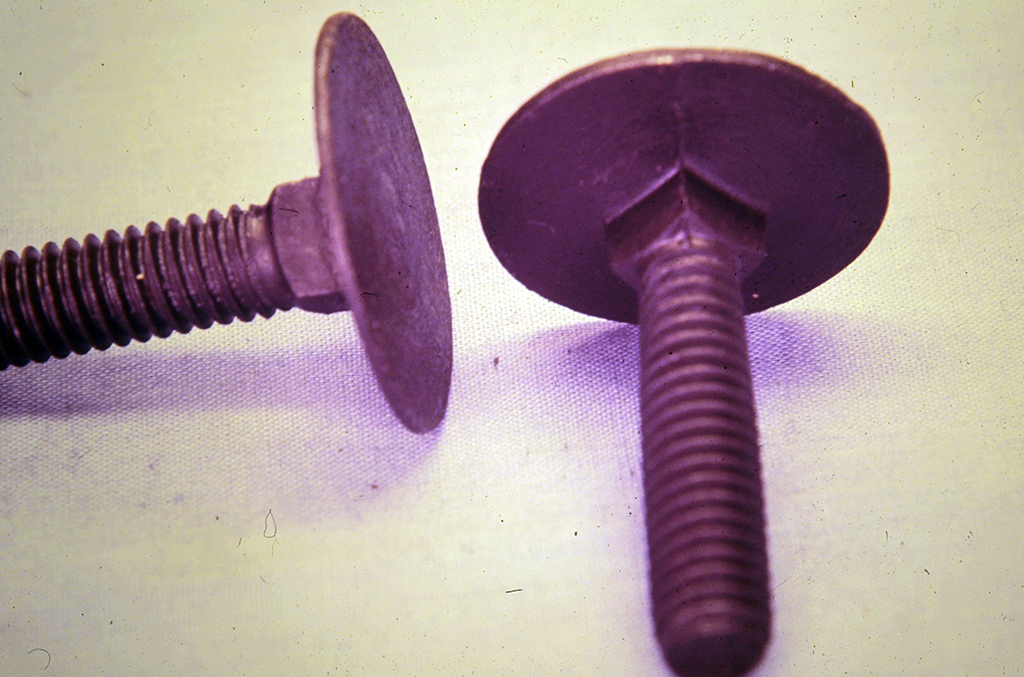

Carriage Bolts

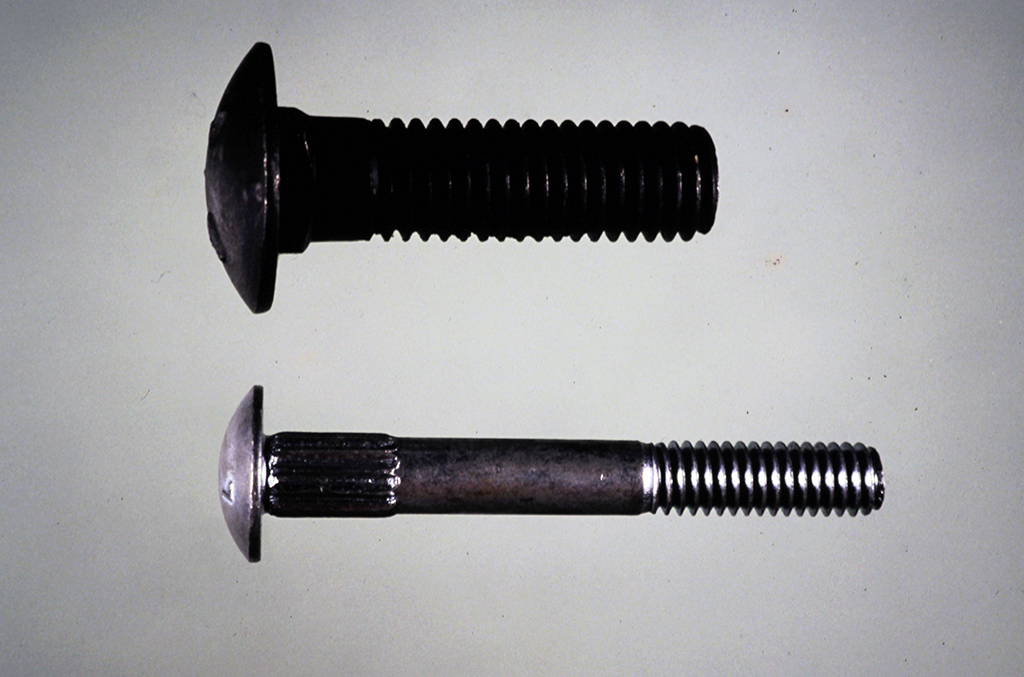

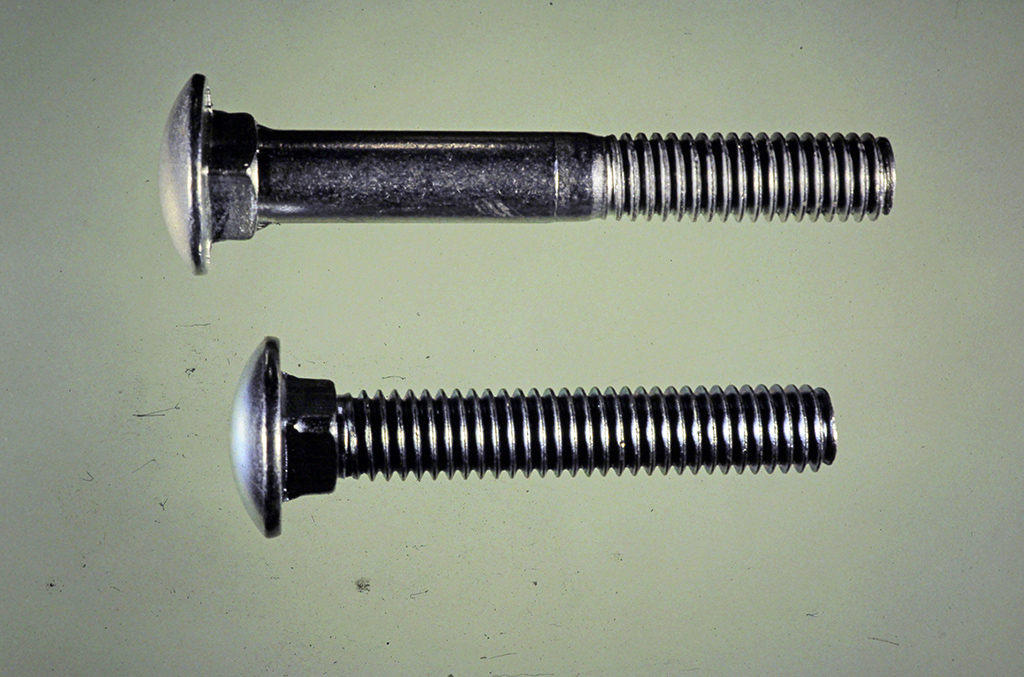

Carriage Bolts: Short Neck (Top), Ribbed Neck Carriage Bolt (Bottom)

Step Bolt

Elevator Bolt

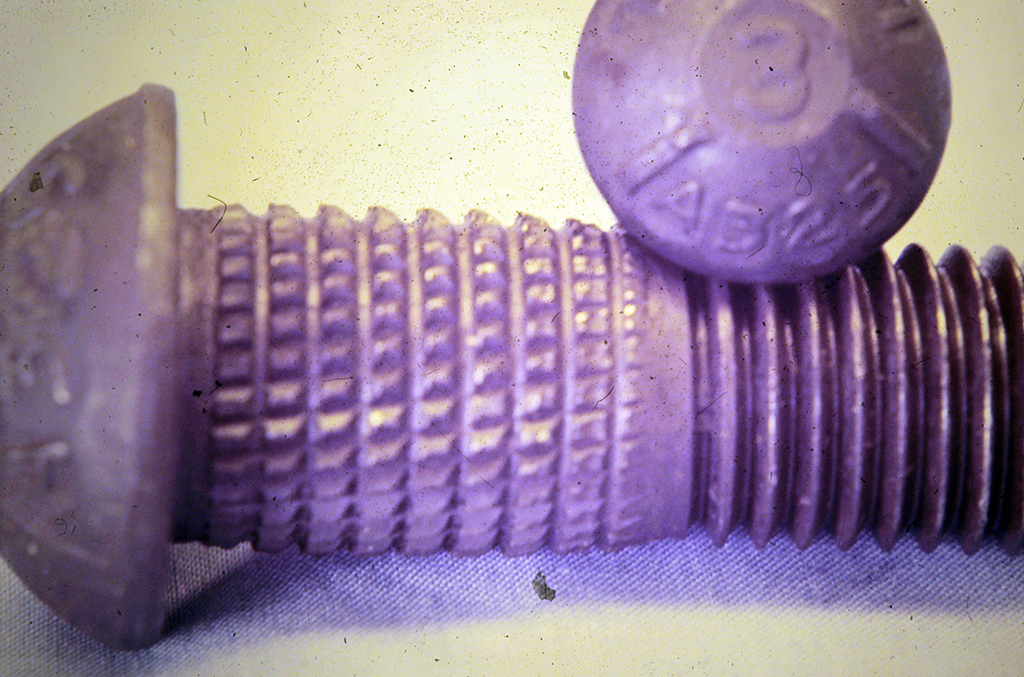

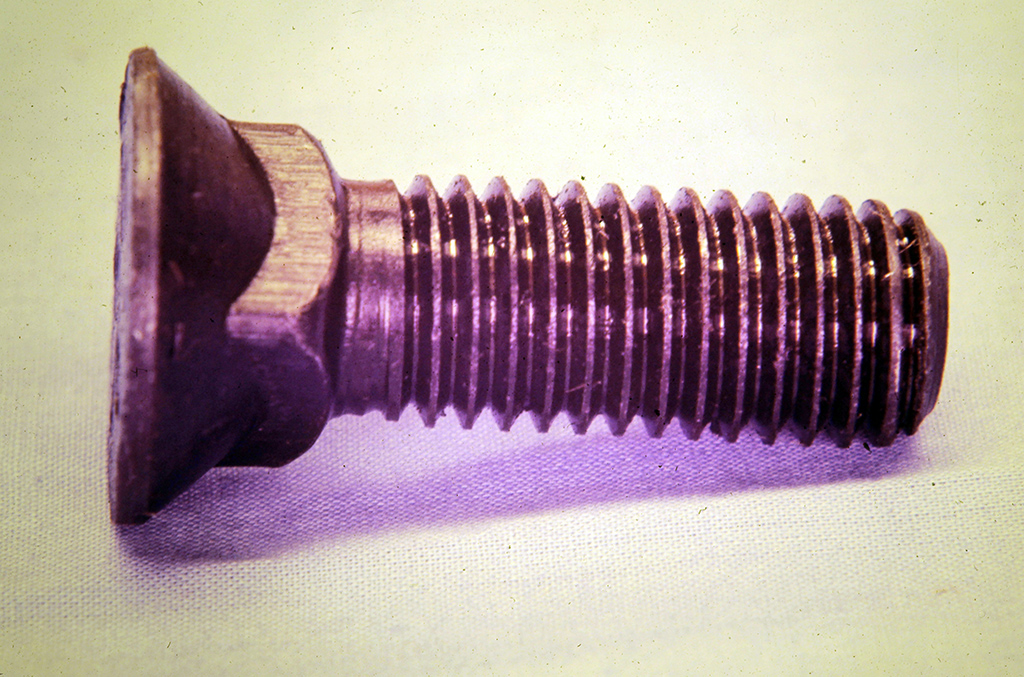

Plow Bolt

Flat Slot Cap Screw

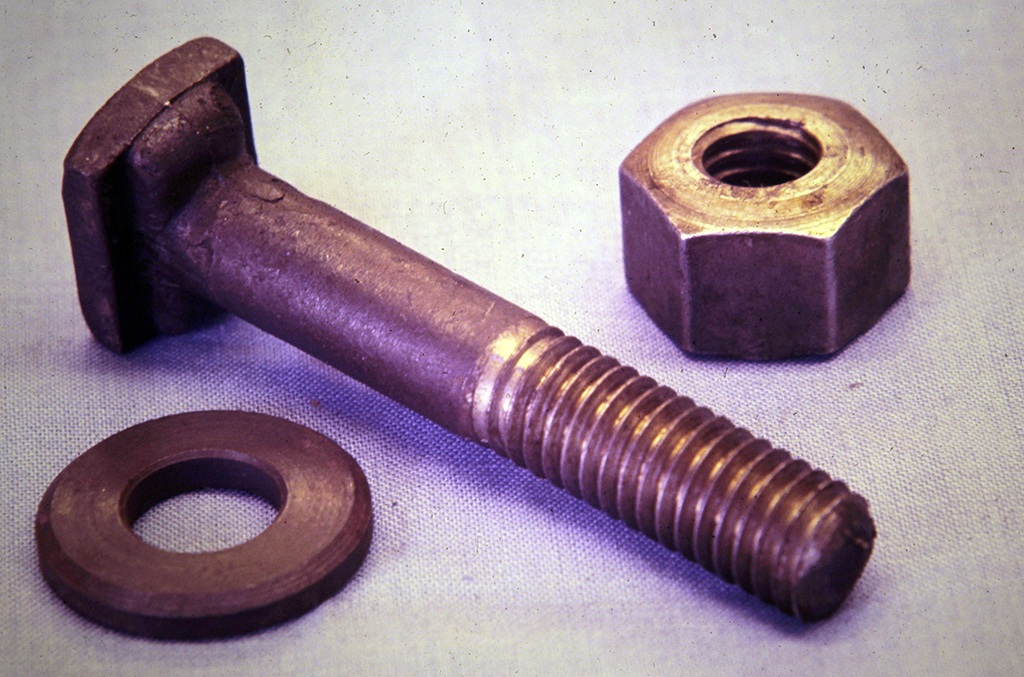

T-Slot Bolt, Nut & Washer

A-325 Structural Bearing Bolt

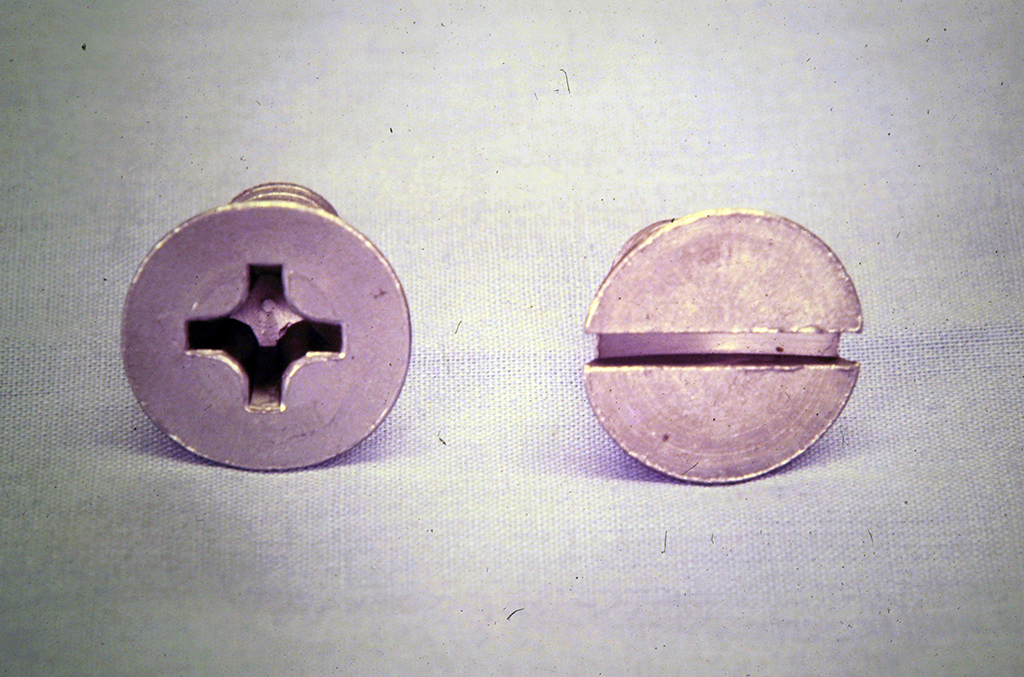

Phillips (Left), Slotted (right) Drive Recesses

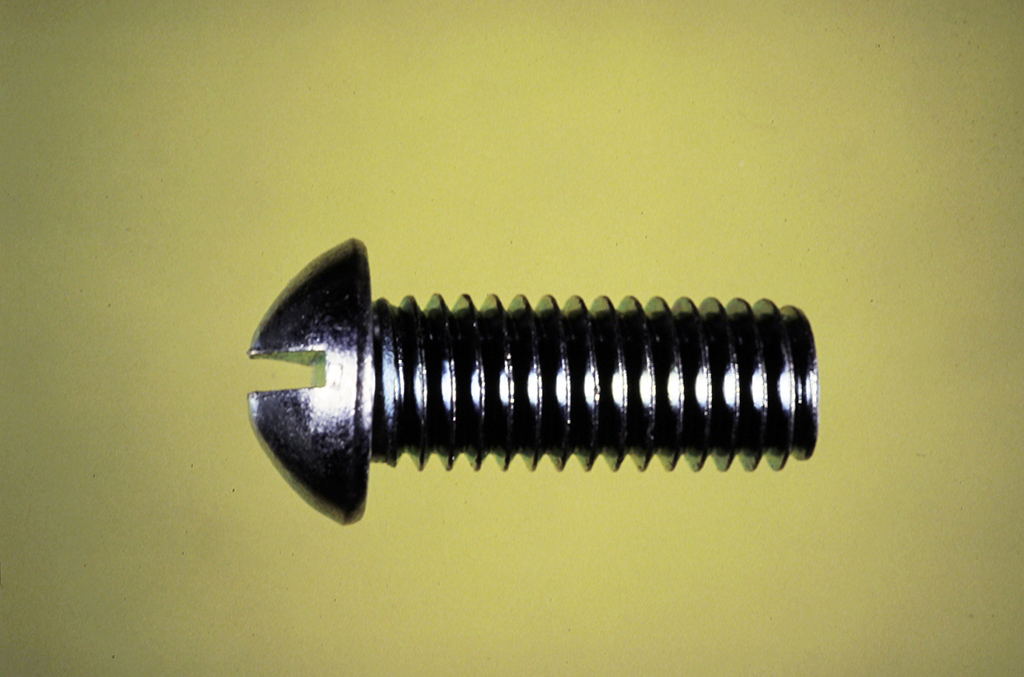

Round Head Slotted Machine Screw

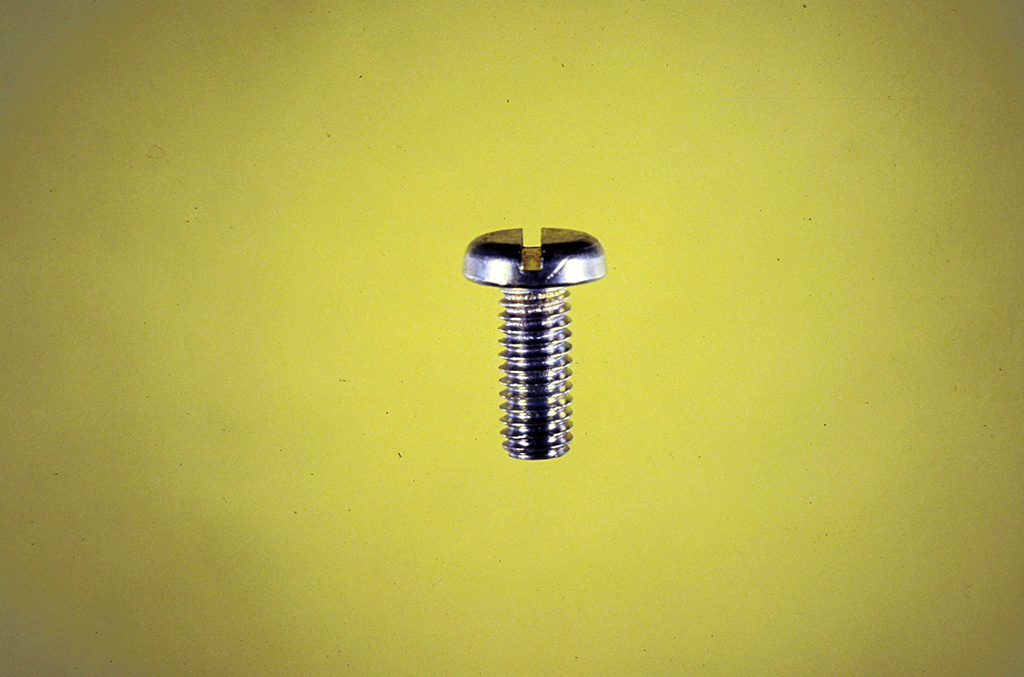

Pan Head Slotted Machine Screw

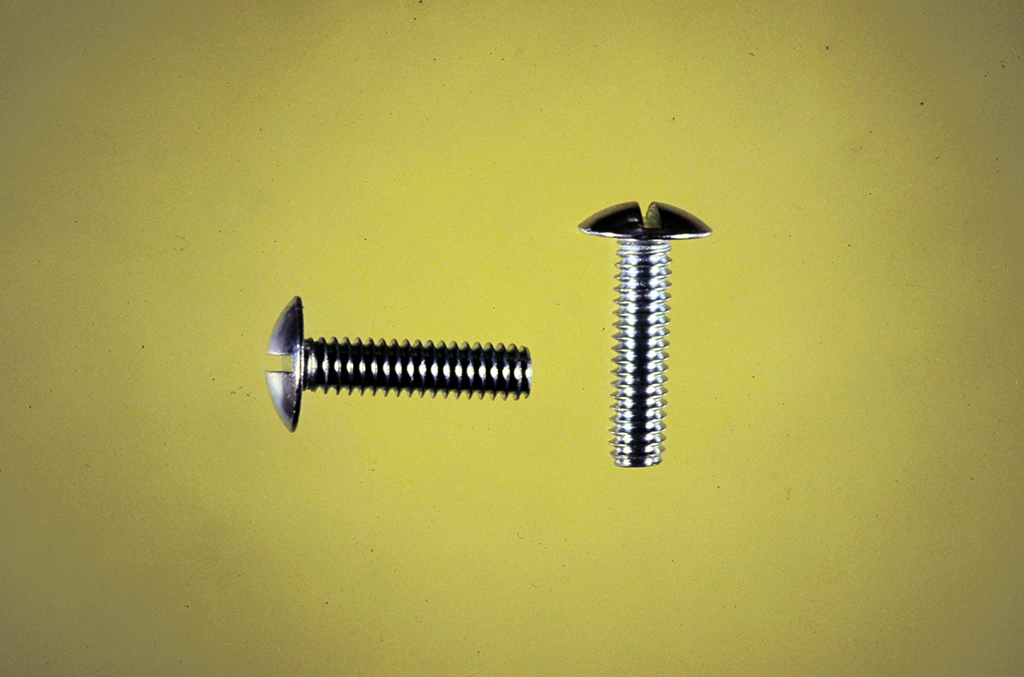

Truss Slotted Machine Screw

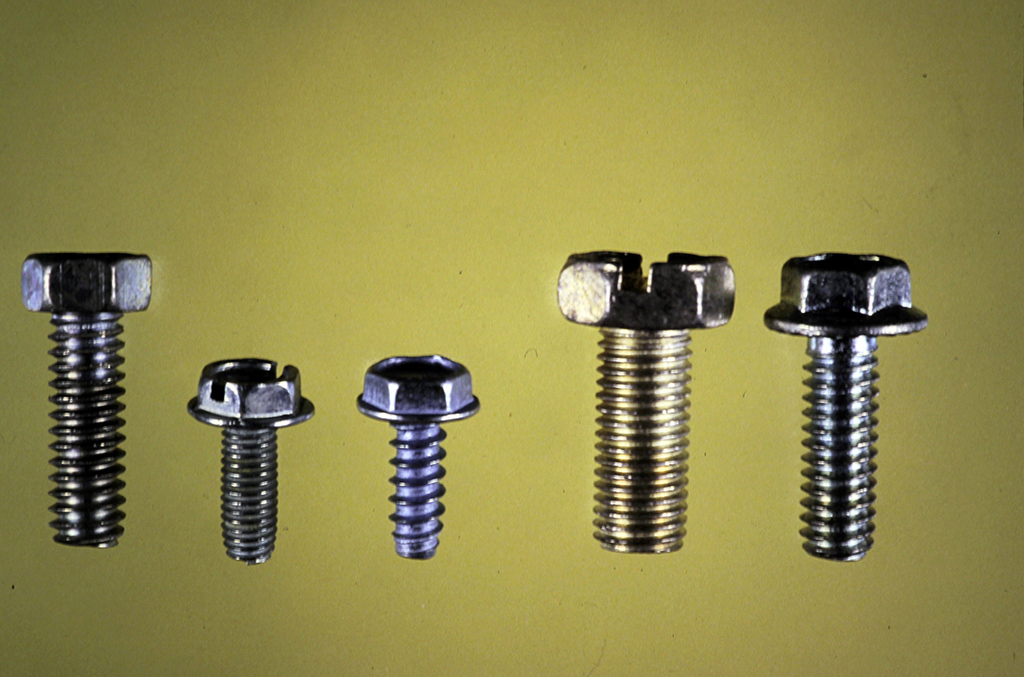

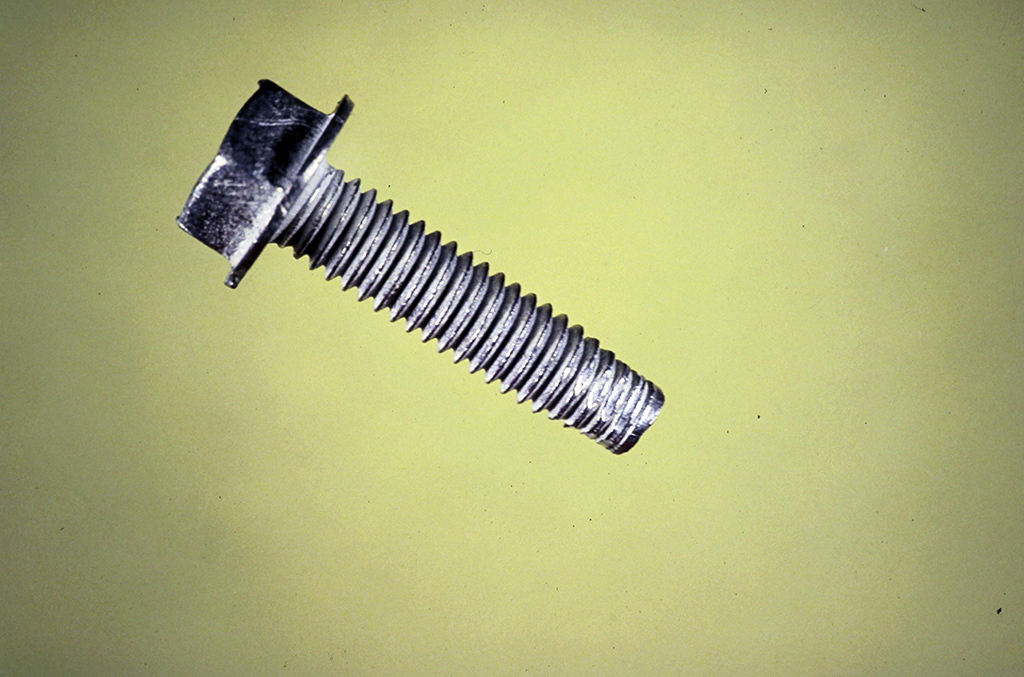

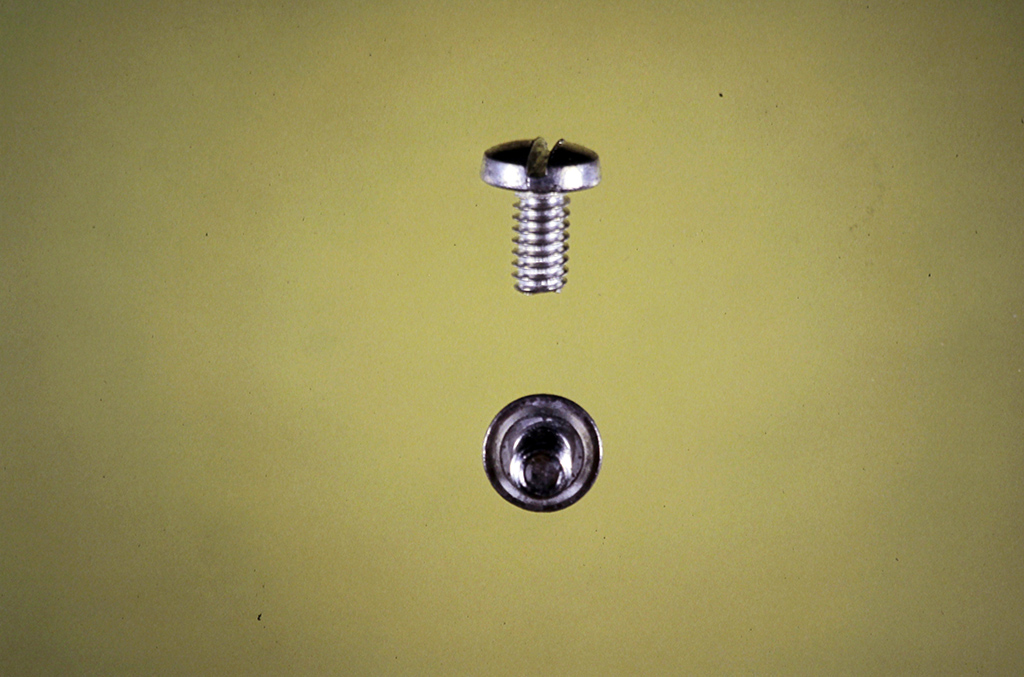

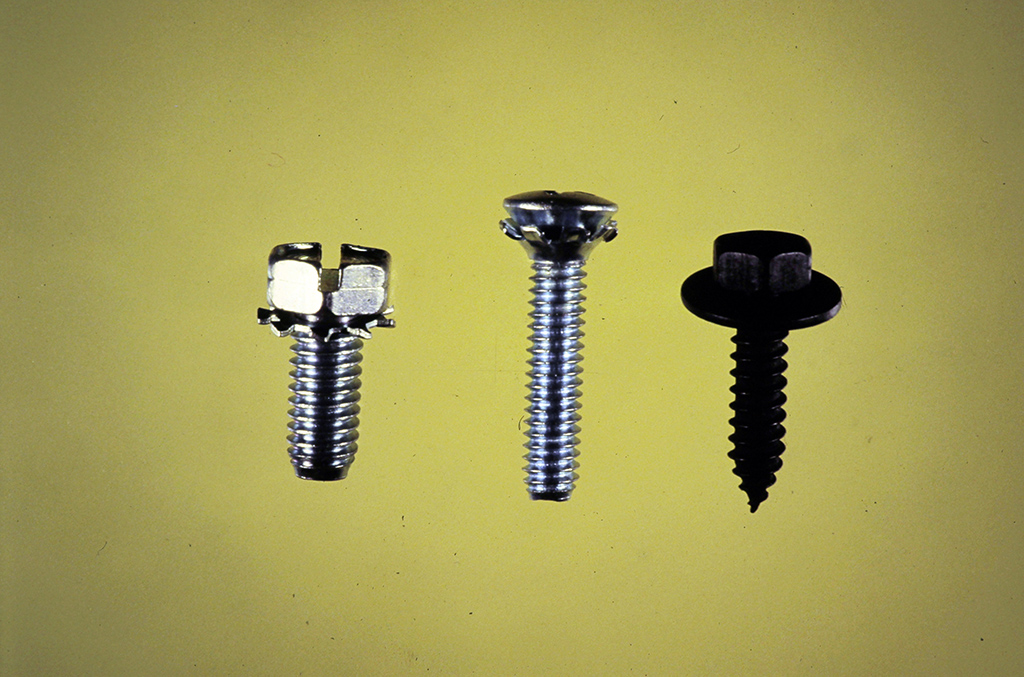

Hex Head, Hex Washer Slotted, Hex Indented Washer, Hex Slotted, Hex Washer Head

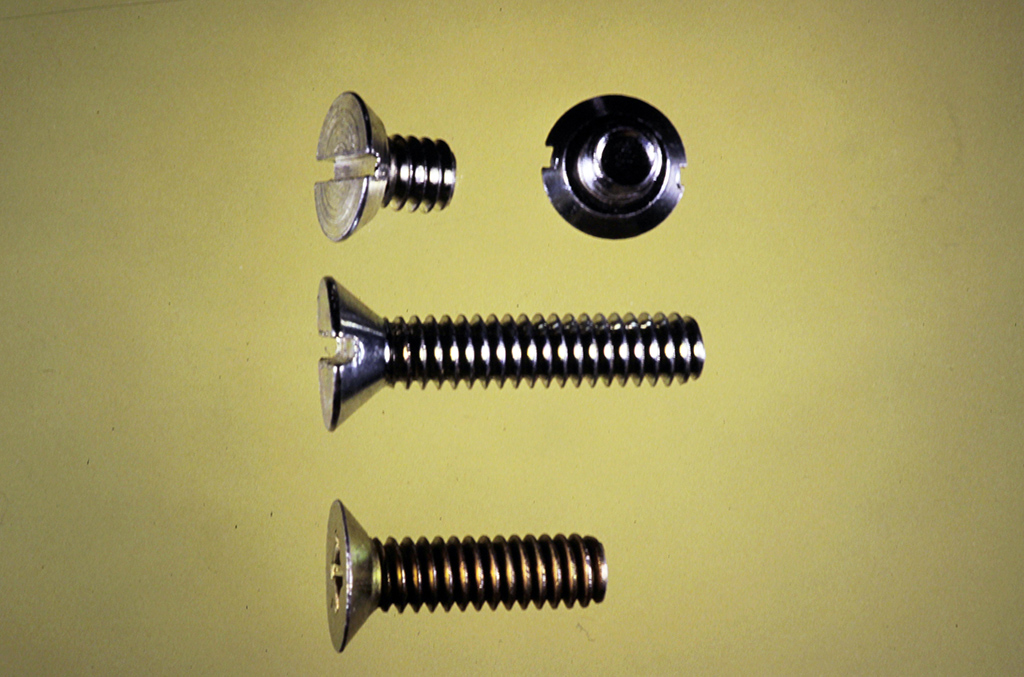

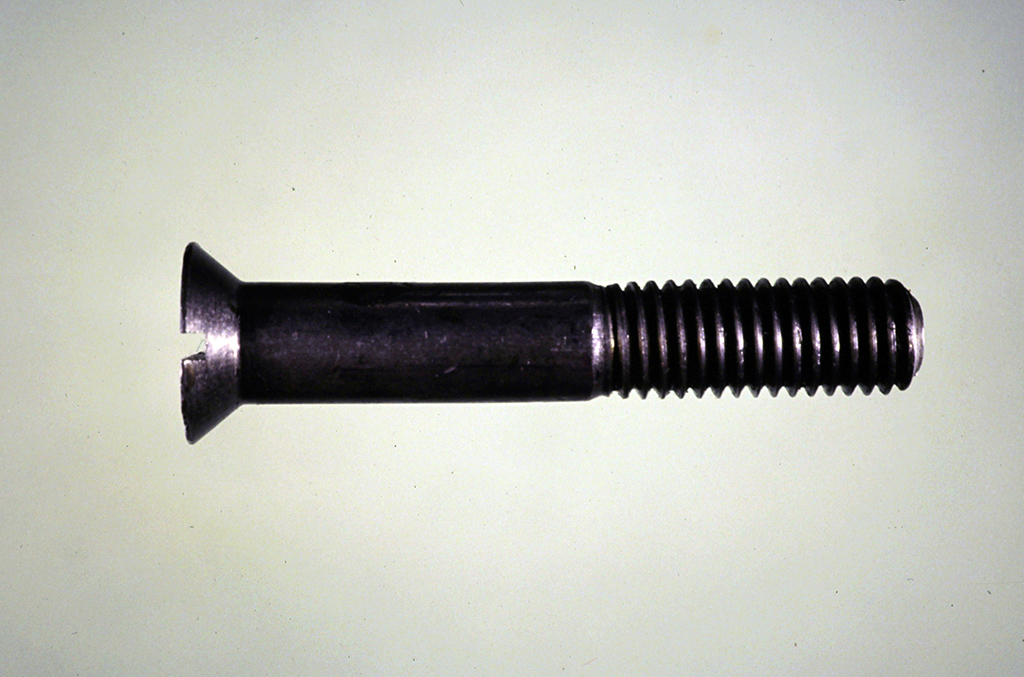

Flat Slotted, Under-cut Machine Screw (Top), Flat Slotted (Middle), Flat Phillips (Bottom)

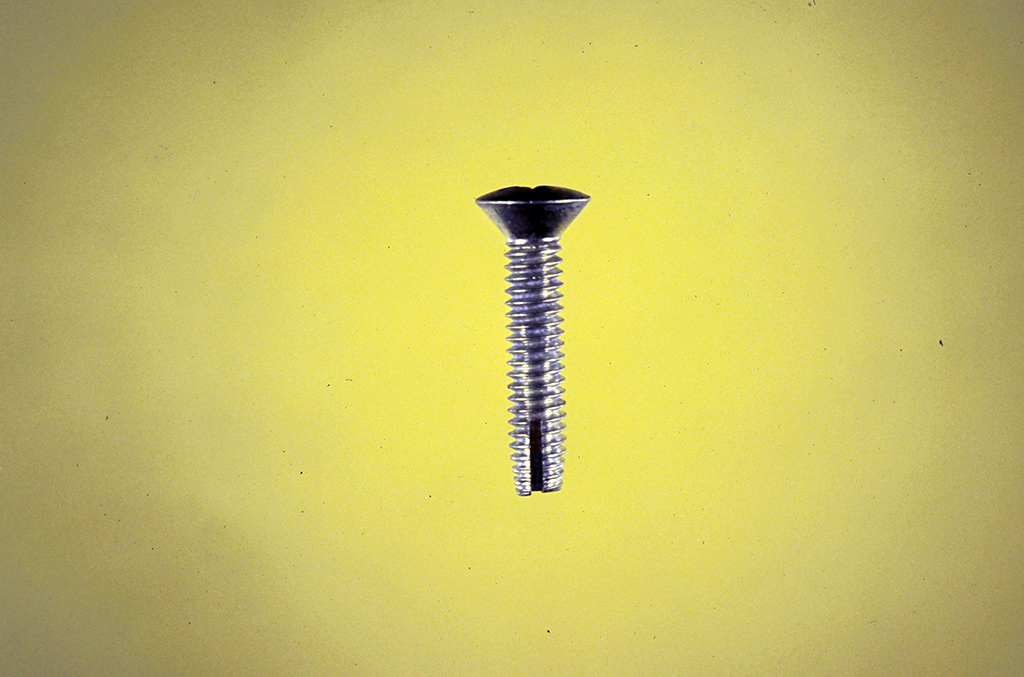

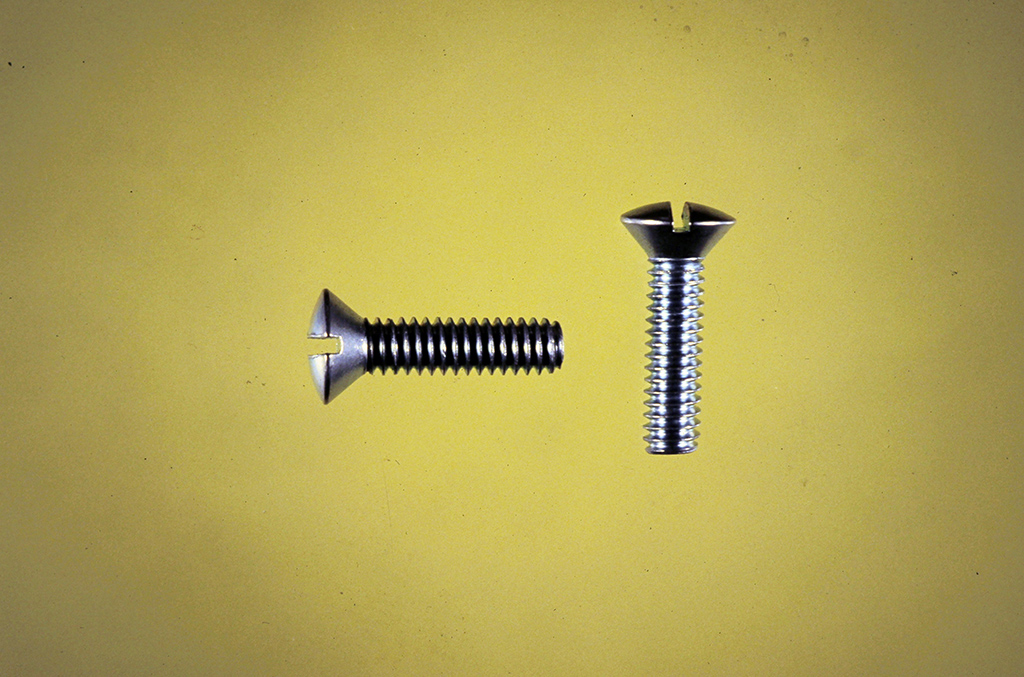

Oval Slotted Machine Screws

Binding Head, Under-cut Slotted Machine Screws

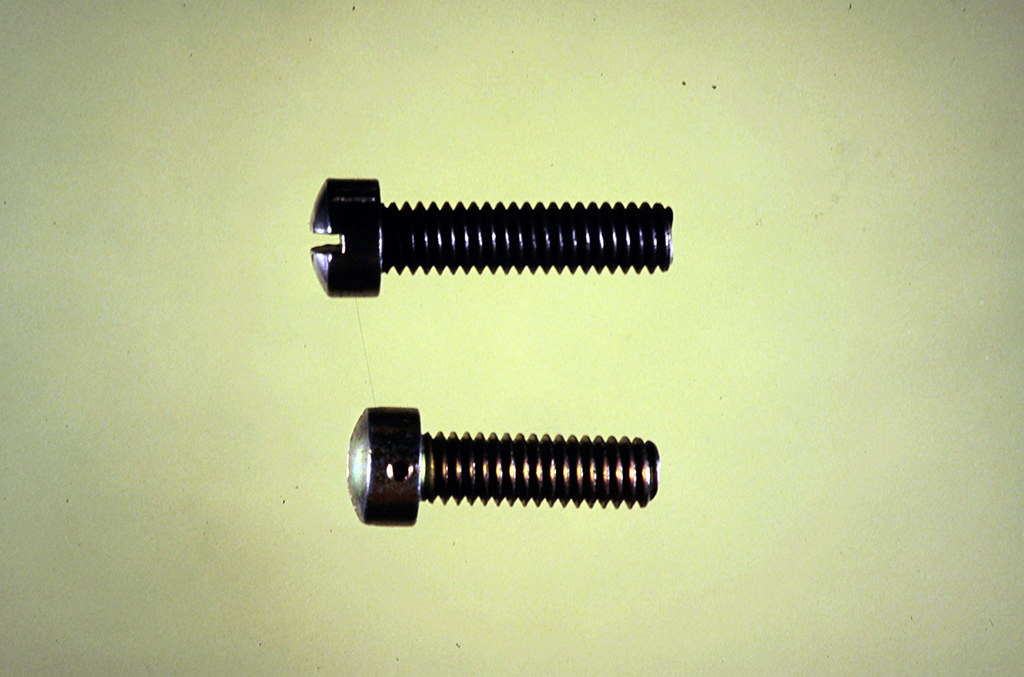

Fillister Slotted (Top), Drilled Head Slotted Fillister Machine Screw (Bottom)

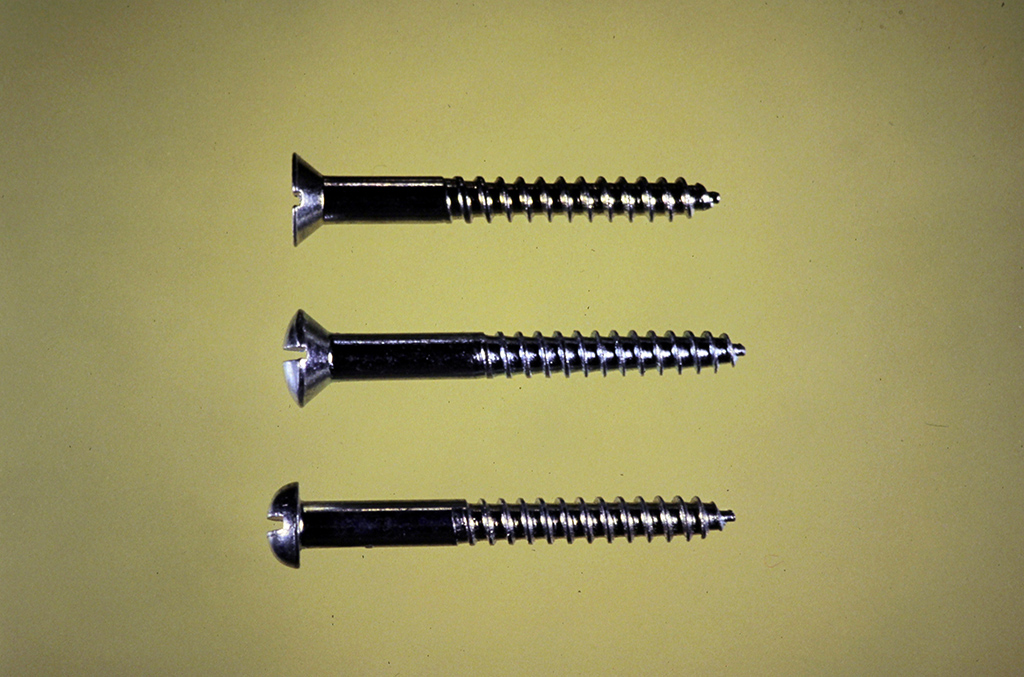

Flat, Oval, & Round Head Wood Screws

Twinfast Wood Screws

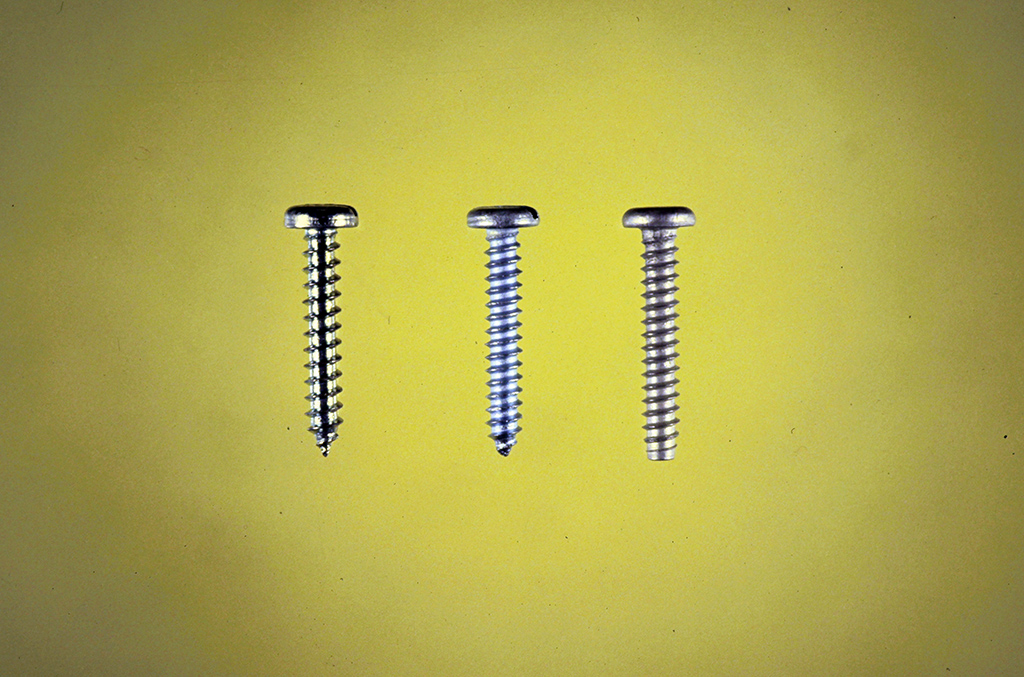

Type “A”, Type “AB” & Type “B” Pan Phillips Tapping Screws

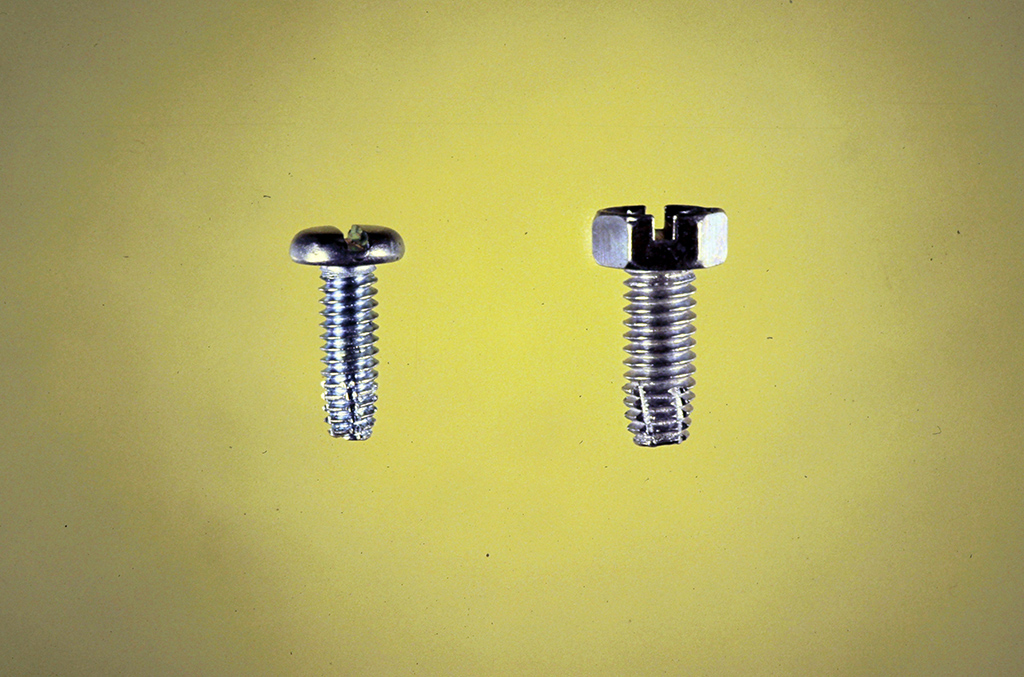

Type "F" Thread Cutters

Type "1" Thread Cutter

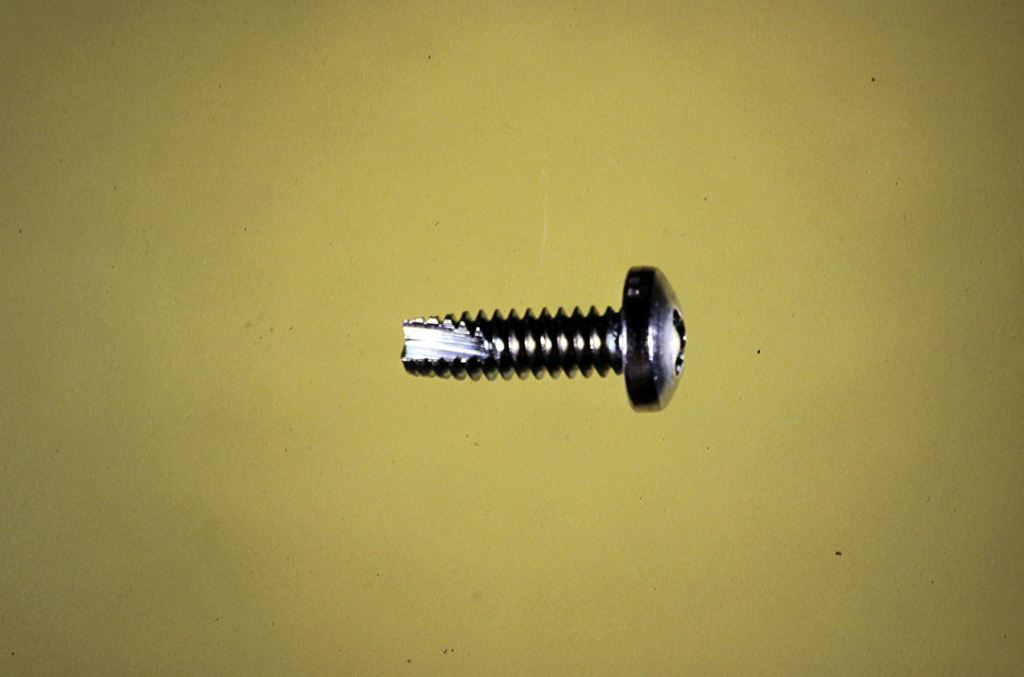

Type "23" Thread Cutter

Thread Roller: i.e. Taptite, Rolok, - Trilobe Thread Pattern

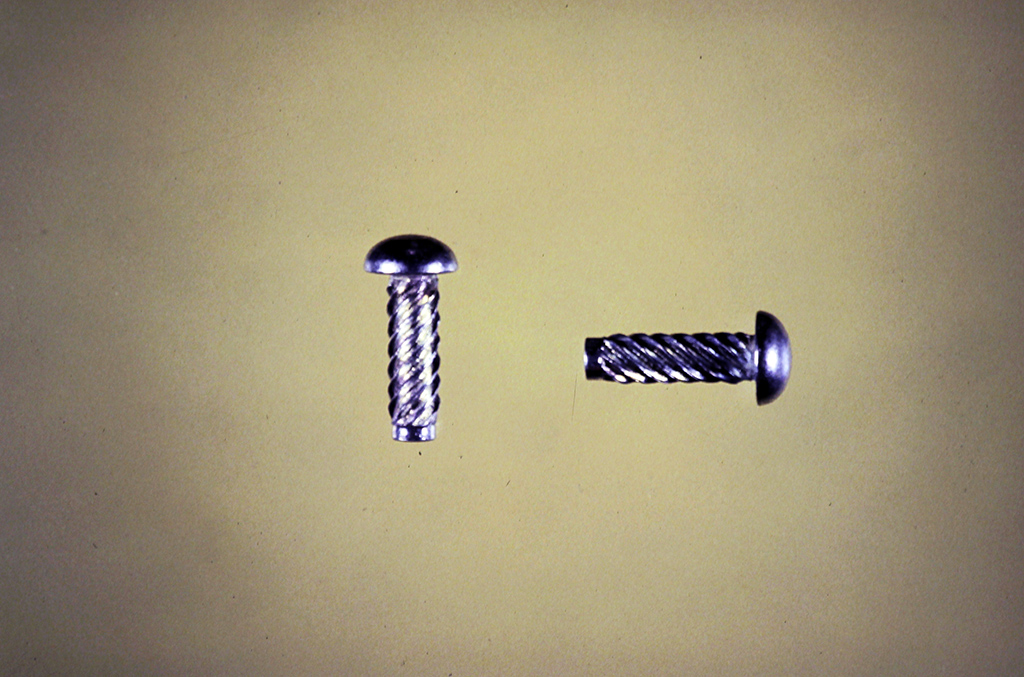

Type "U" Drive Screws

Sems

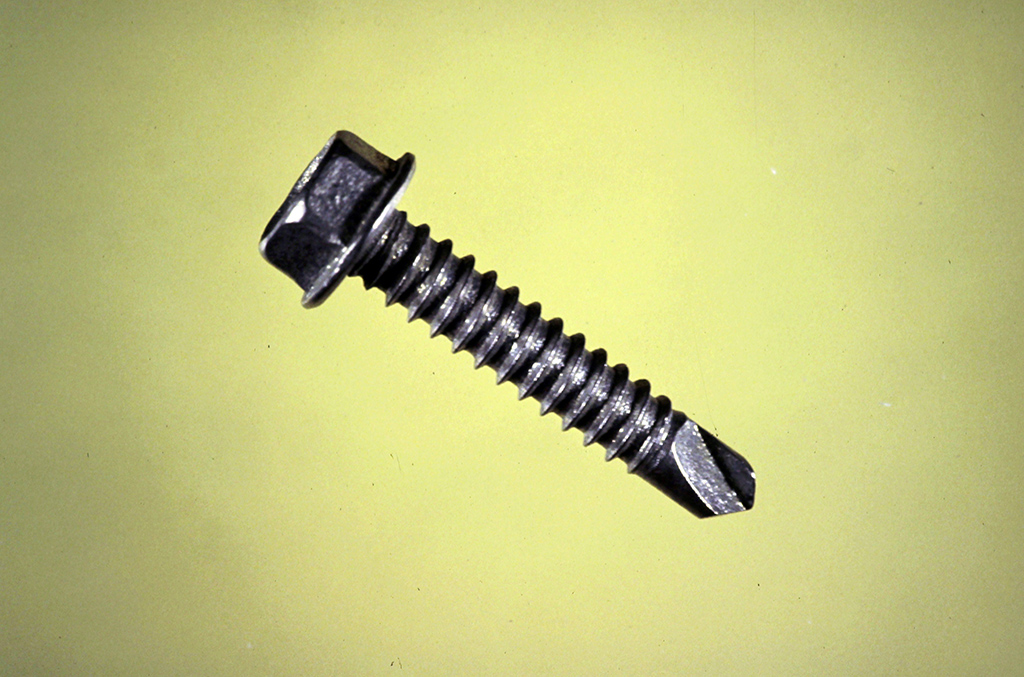

Self-Drilling "Teks" Screws

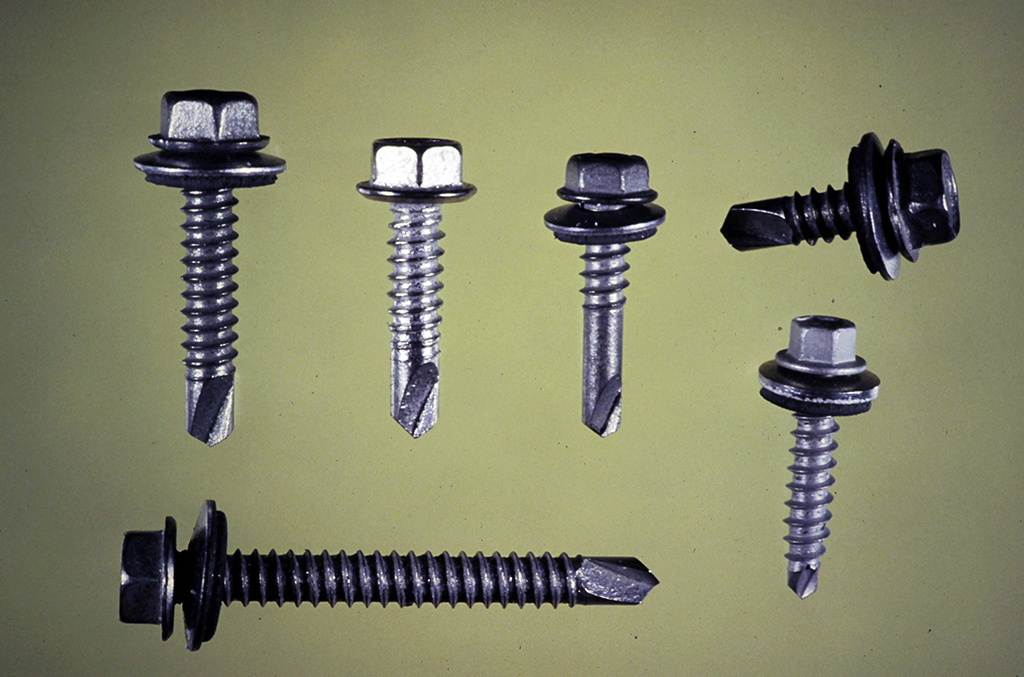

Construction Teks and the use of a Bonded Neoprene Washer

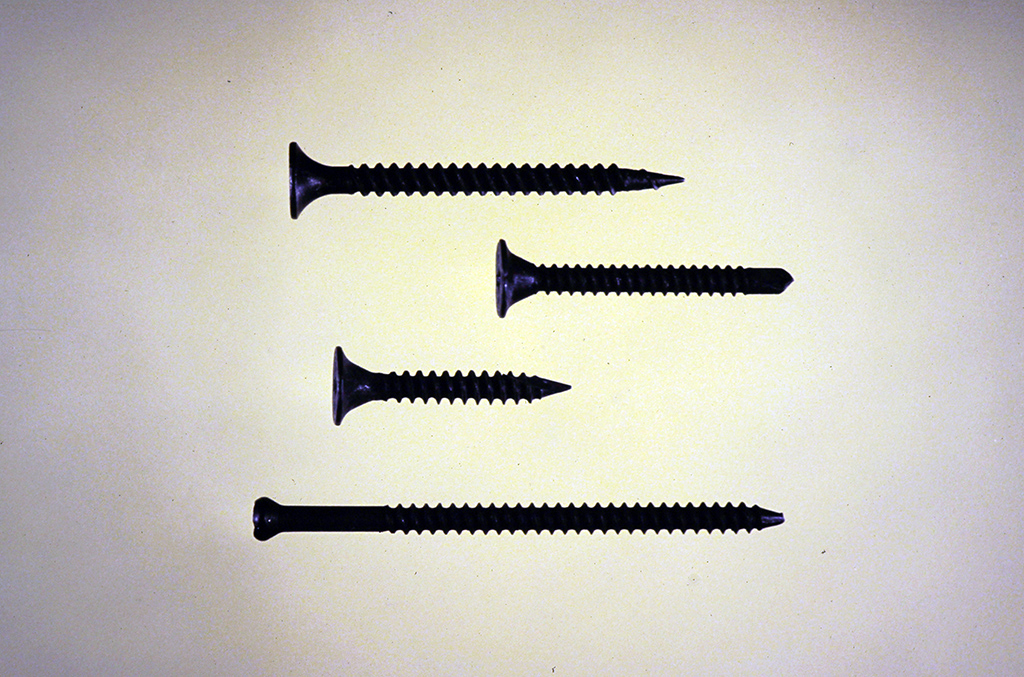

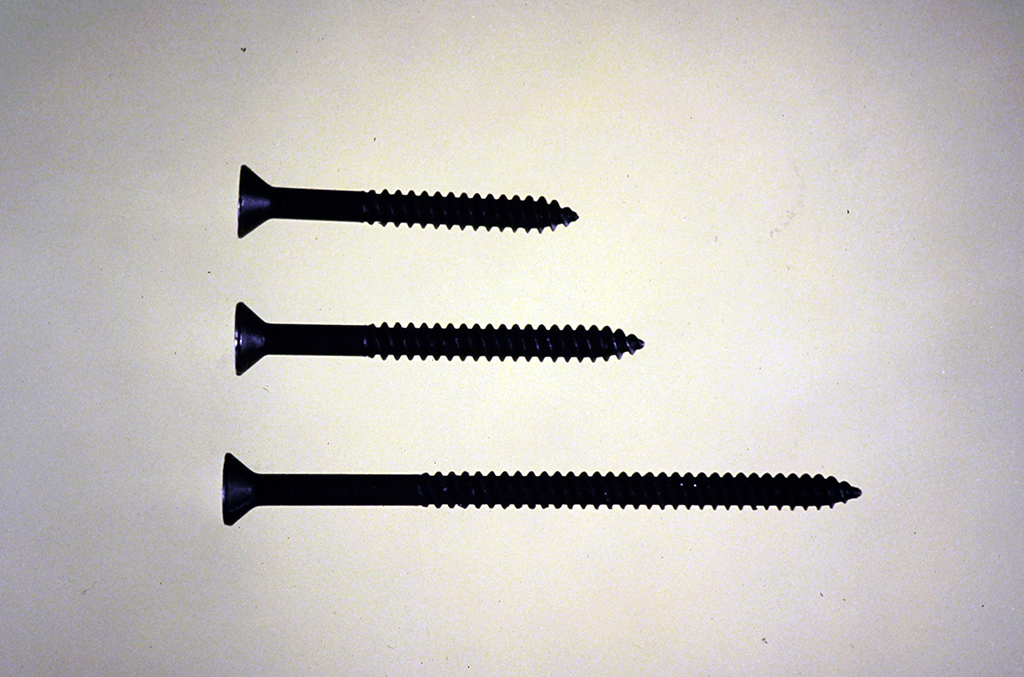

Drywall Screws

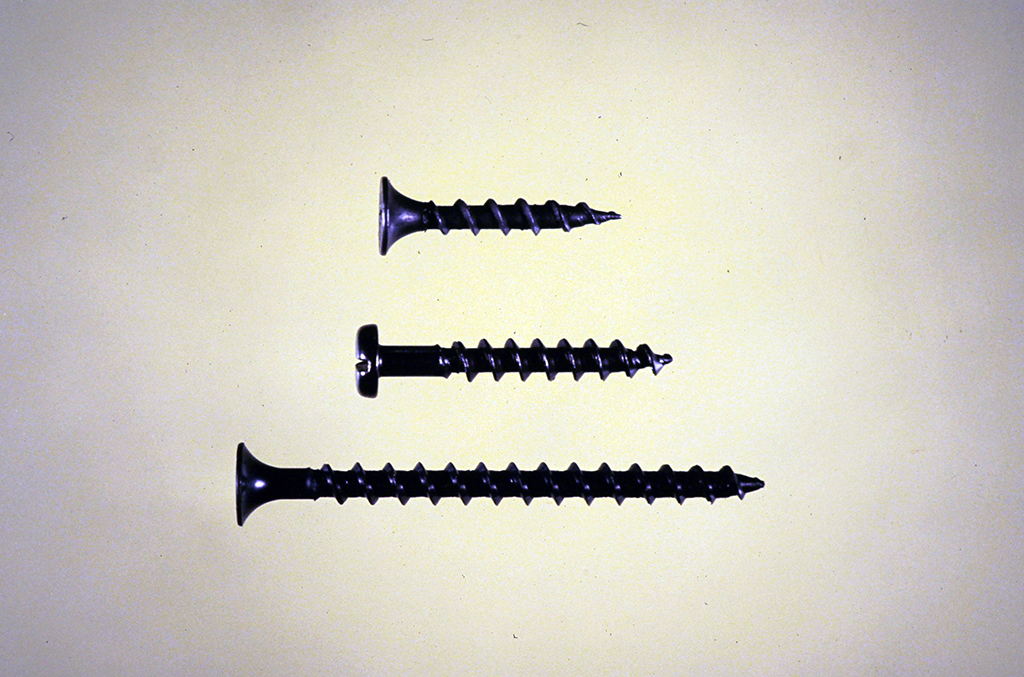

Deck Screws

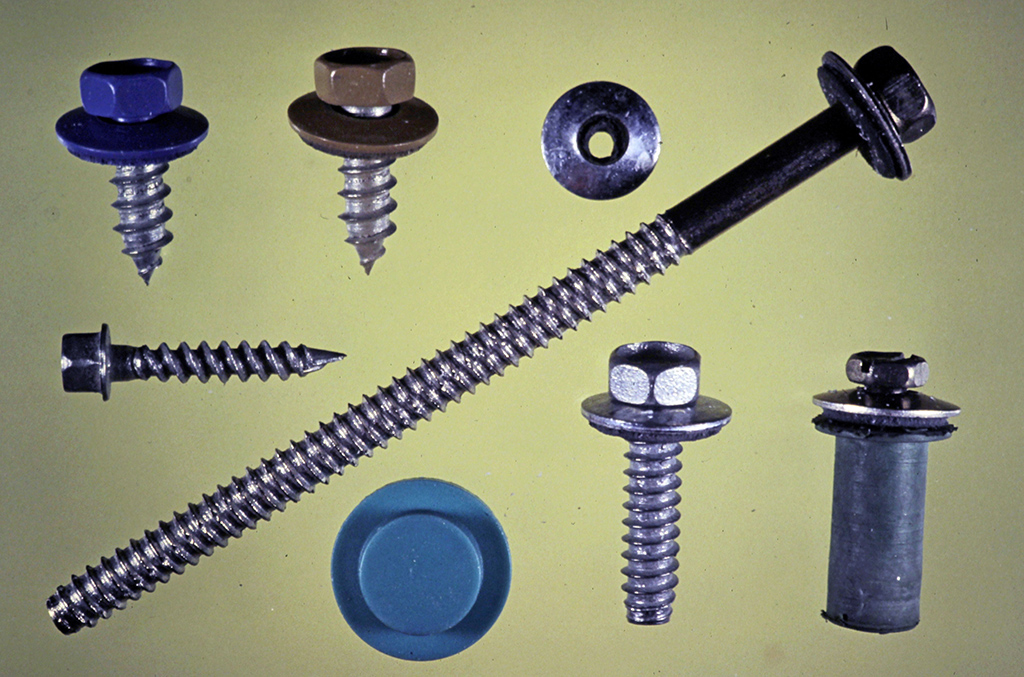

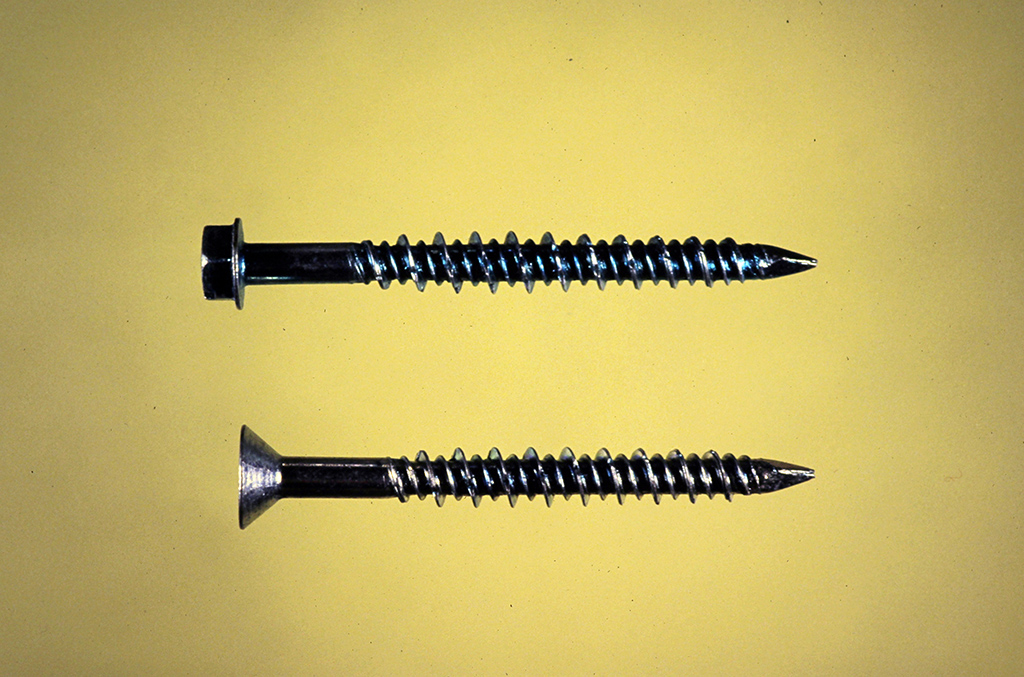

Construction Sheeting Screws - Metal Building

Hi-Lo Thread Construction Screws for wood applications

Tamperproof Drive Recess examples. Several more in the market by application

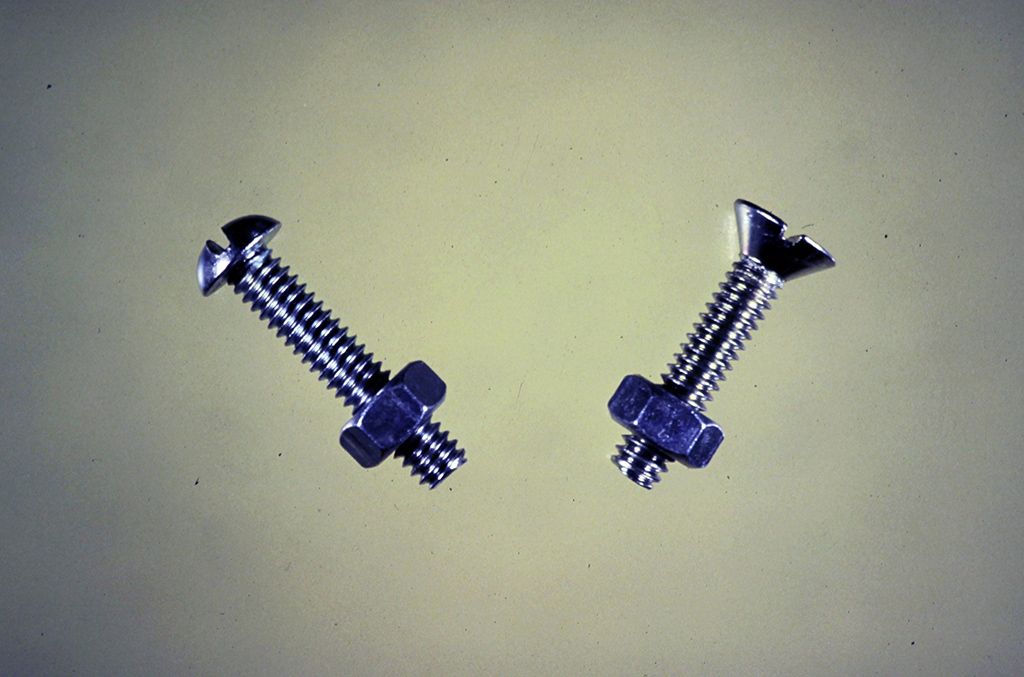

Stove Bolts, old terminology you might still hear on occasion

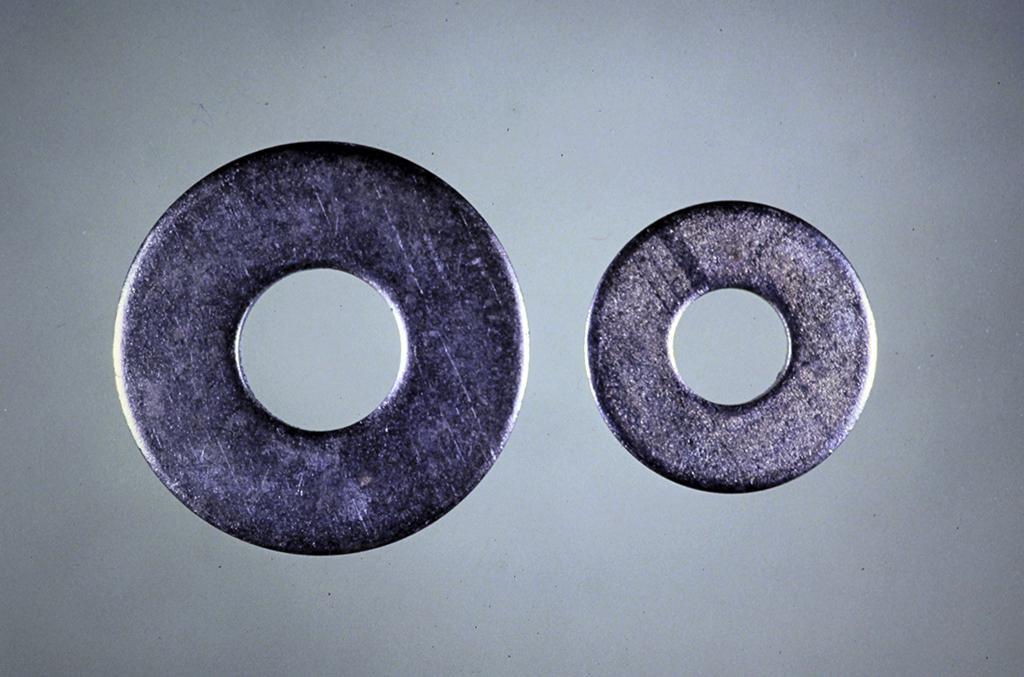

USS (Left) and SAE (Right) Steel Flatwashers

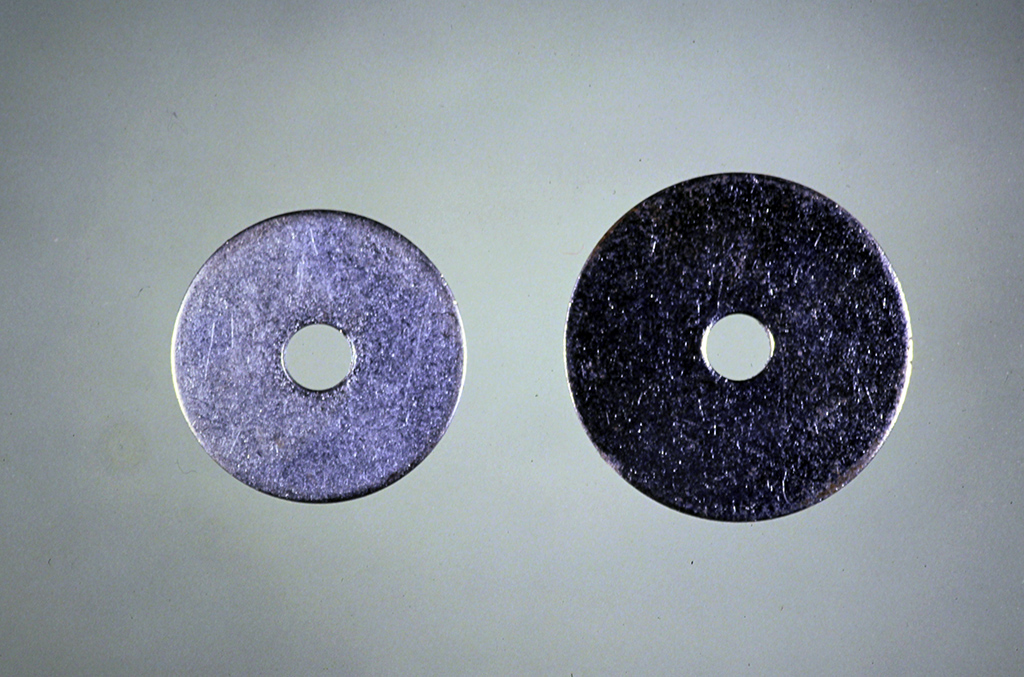

Fender Washers

Structural Flatwashers to be used with Structural Bolts

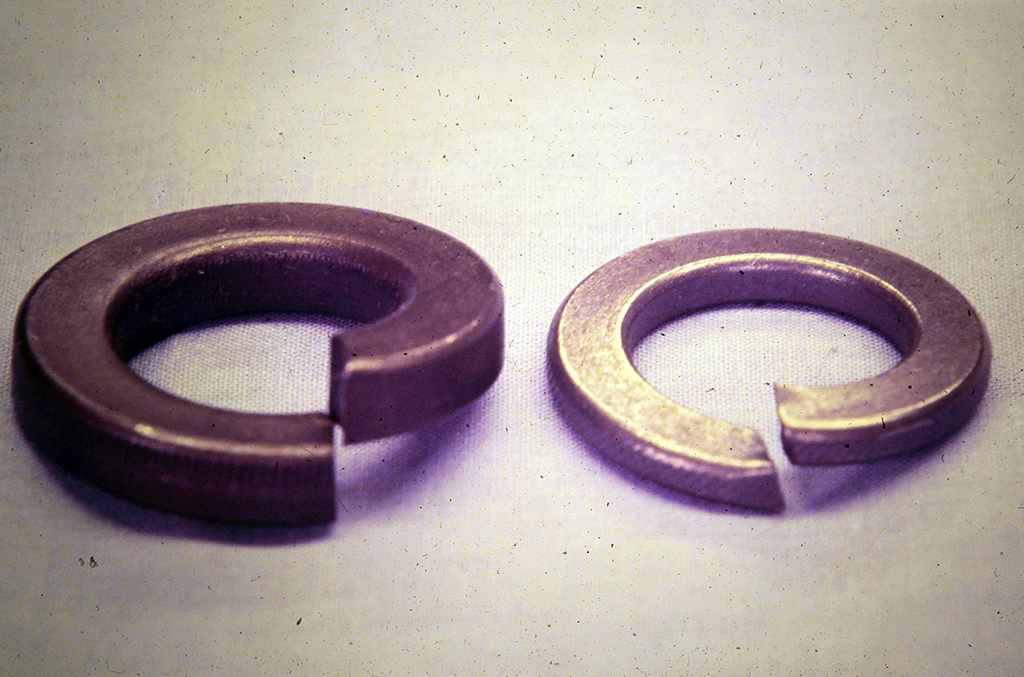

Heavy (Left) Split Lockwasher, Lite (Right), Regular Medium (Not Shown)

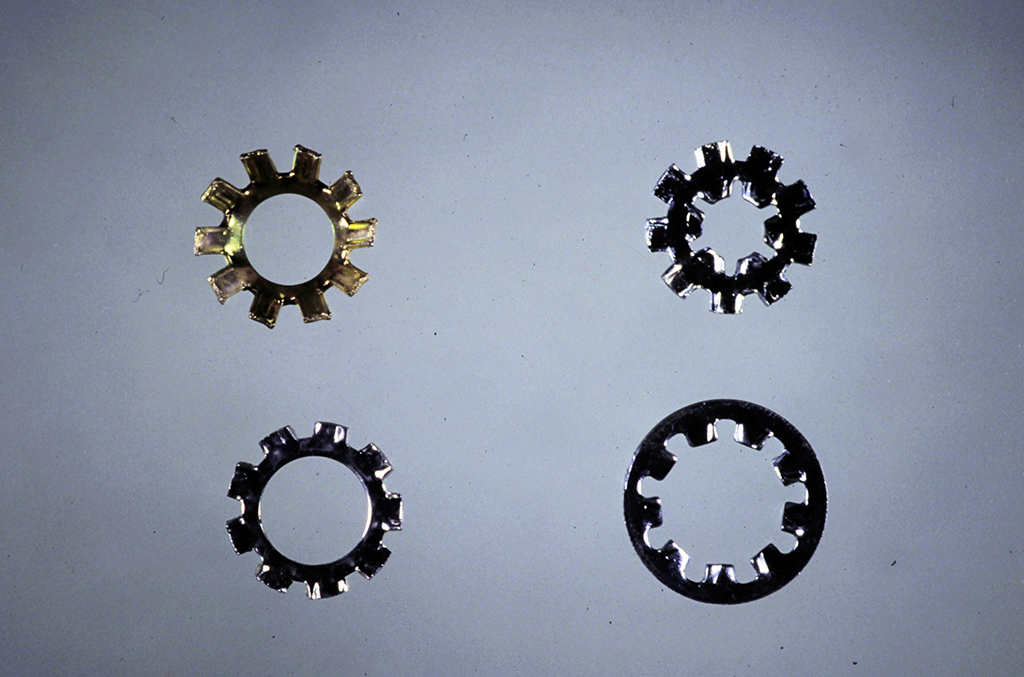

Tooth Lockwashers, External, Ext/Int., (Top), Countersunk & Internal

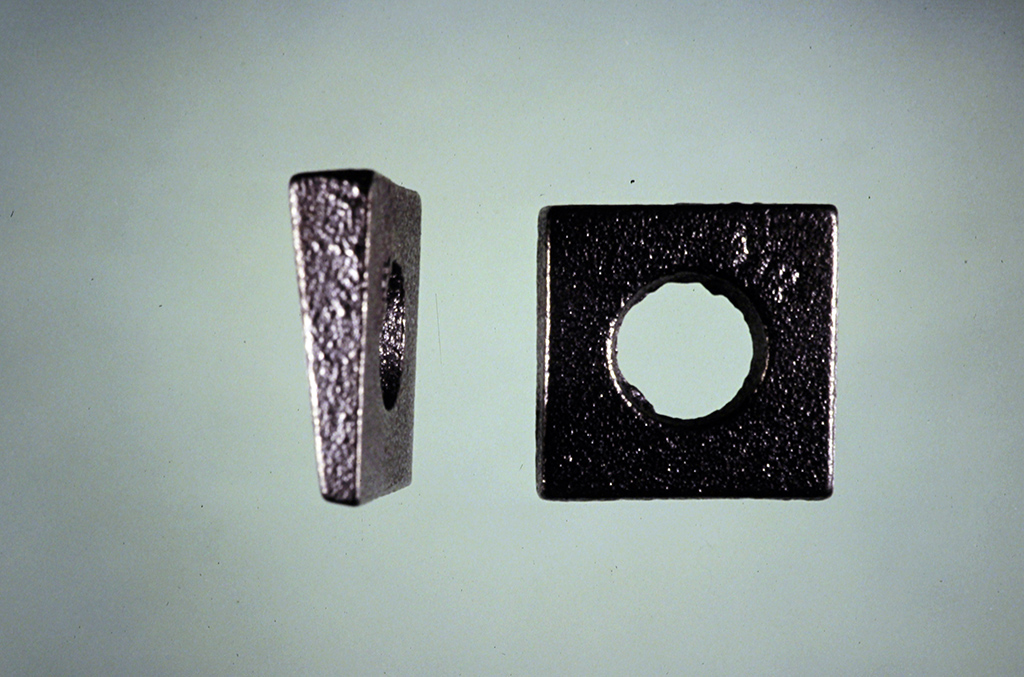

Malleable Iron Square Bevel Washers

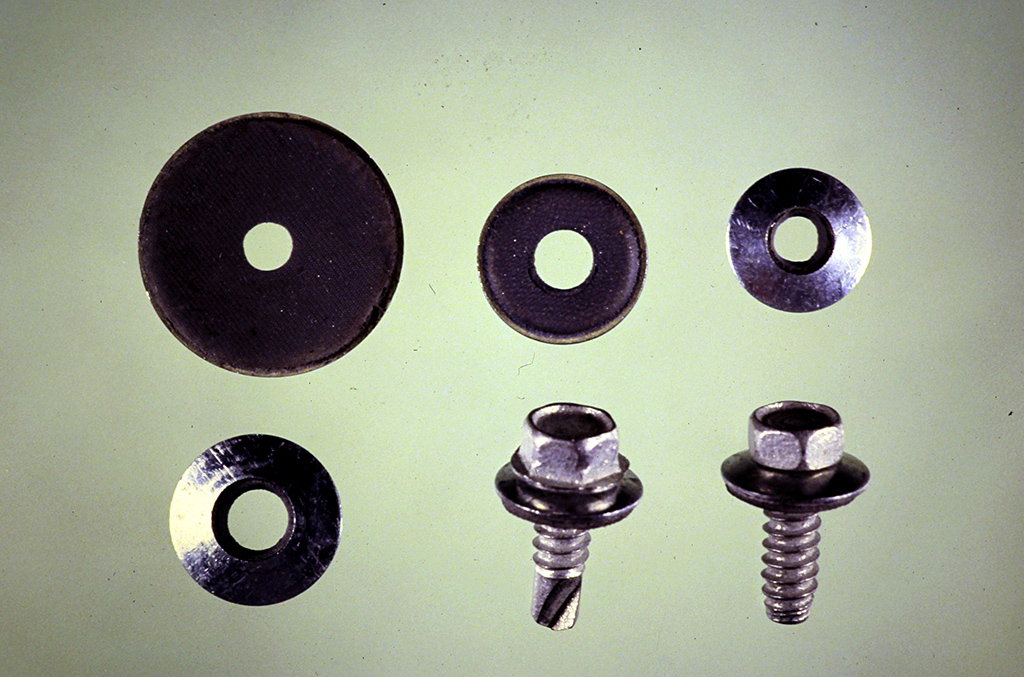

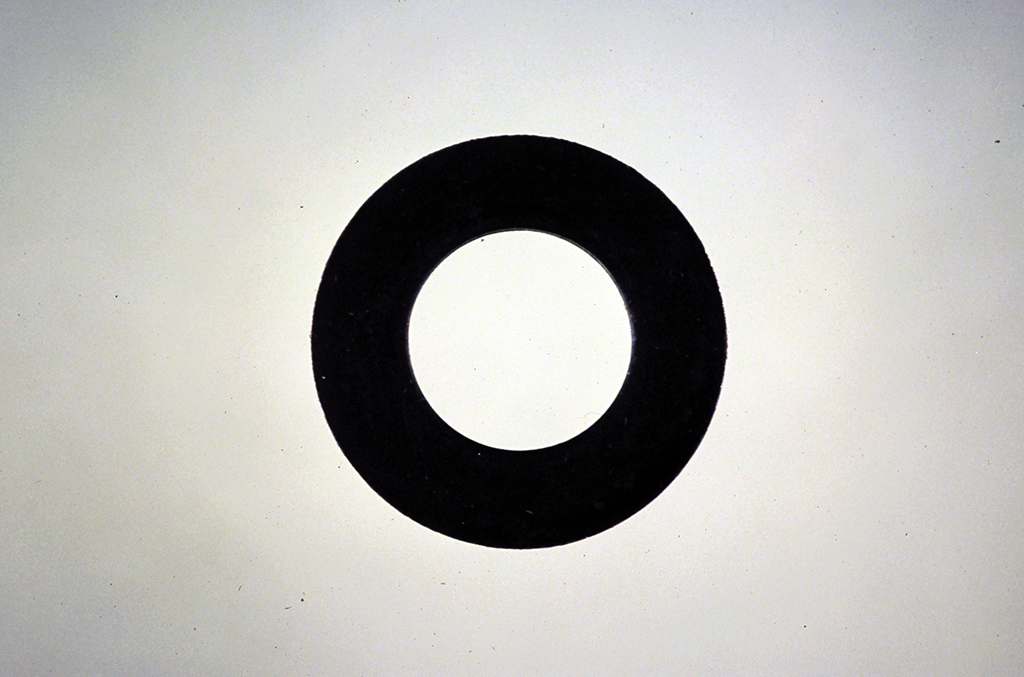

Neoprene Bonded Washers used in Construction

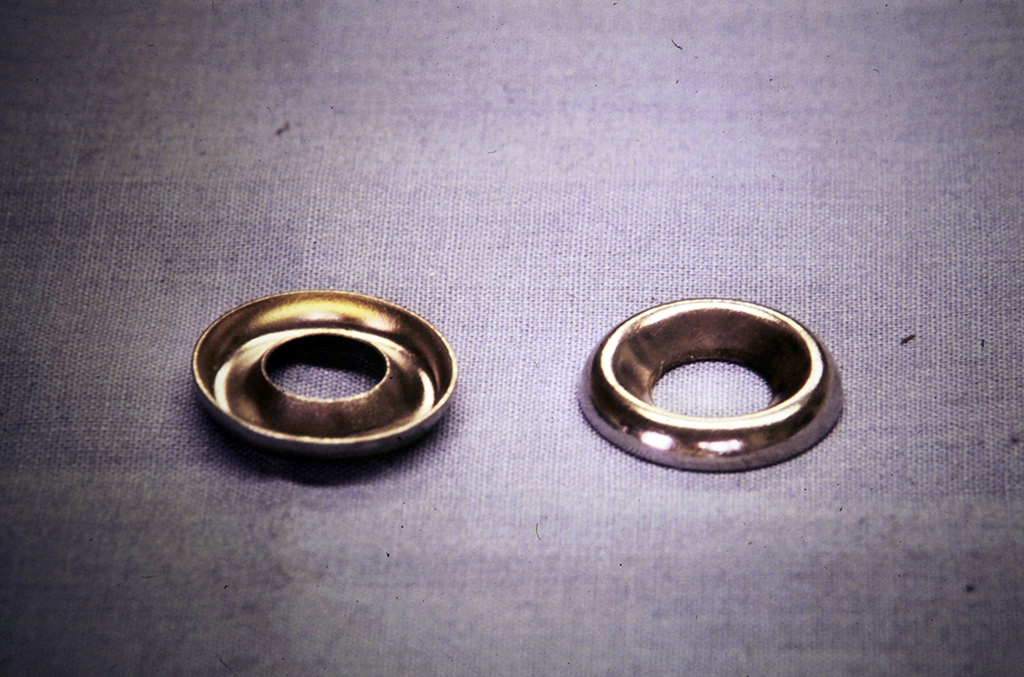

Finishing Washer

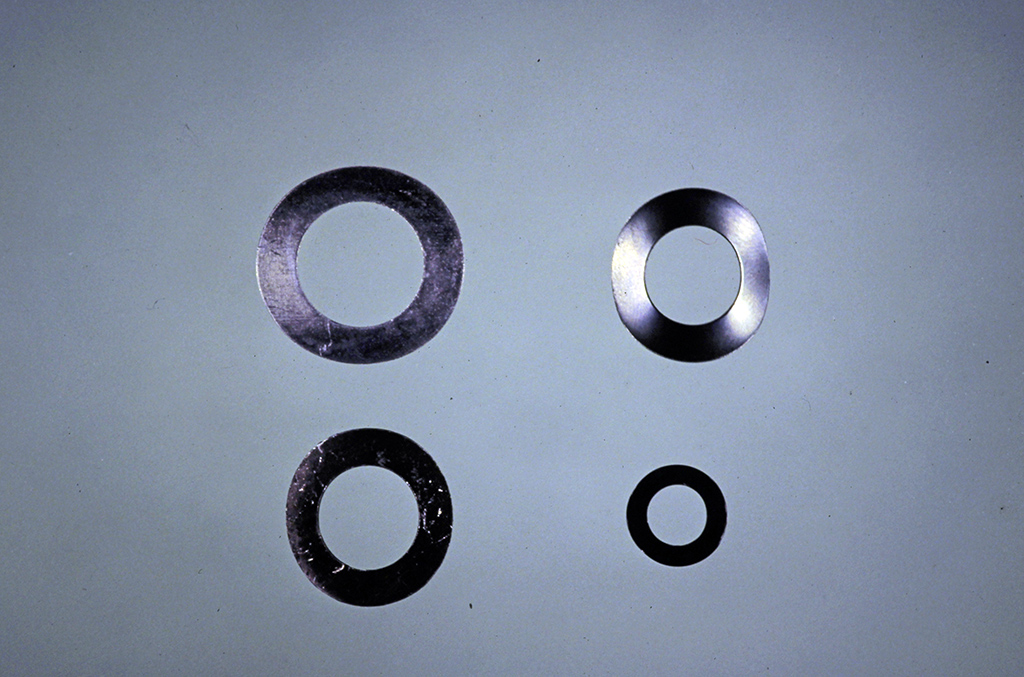

Belleville, Spring Wave Washers

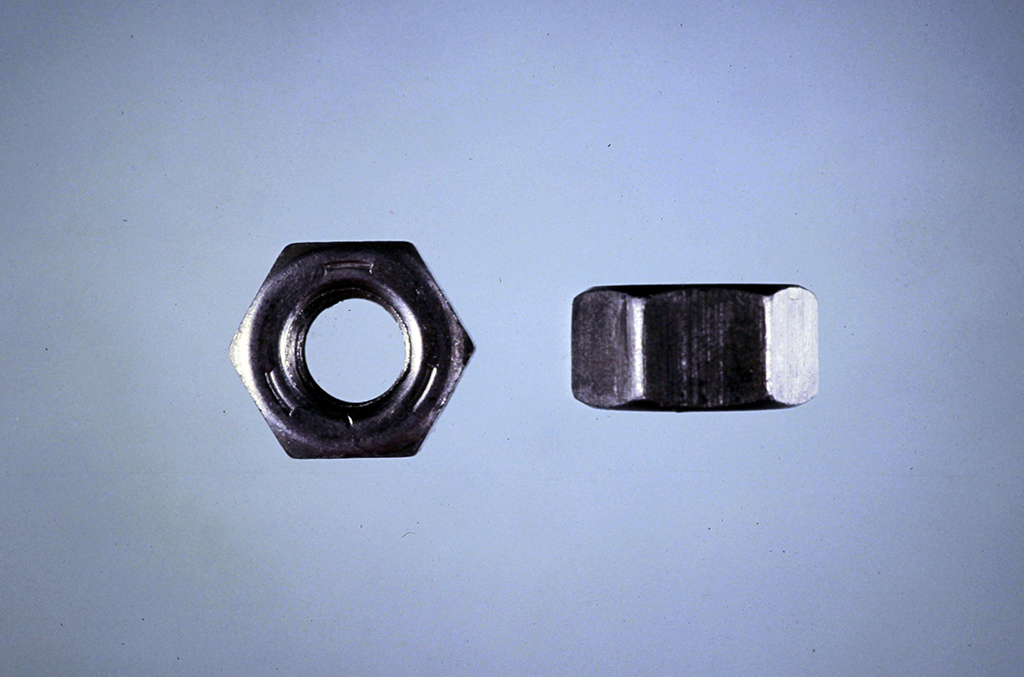

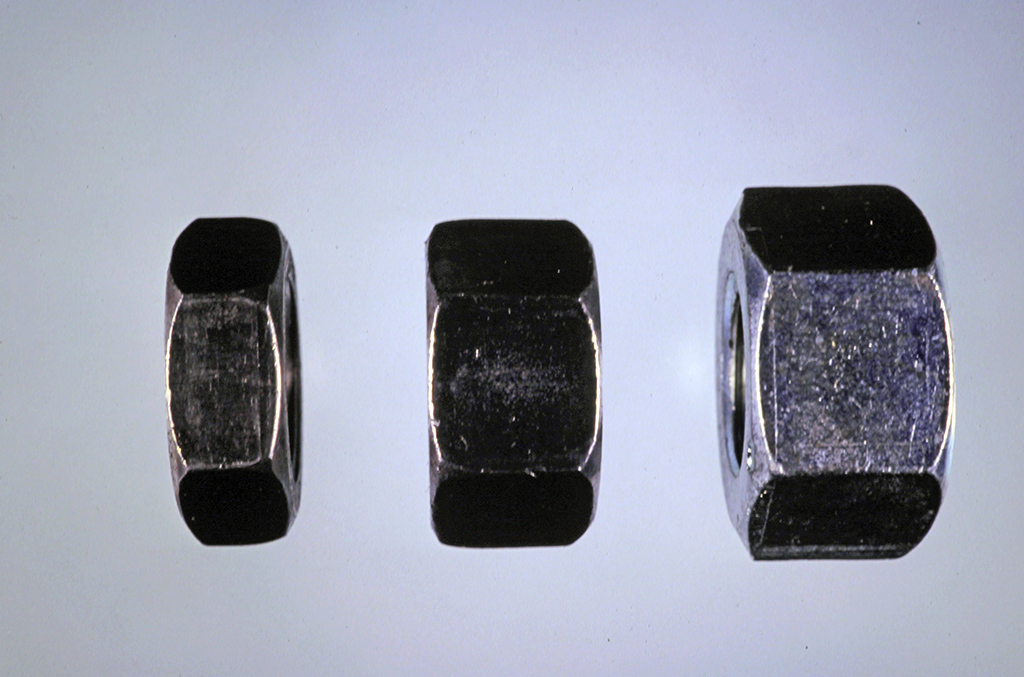

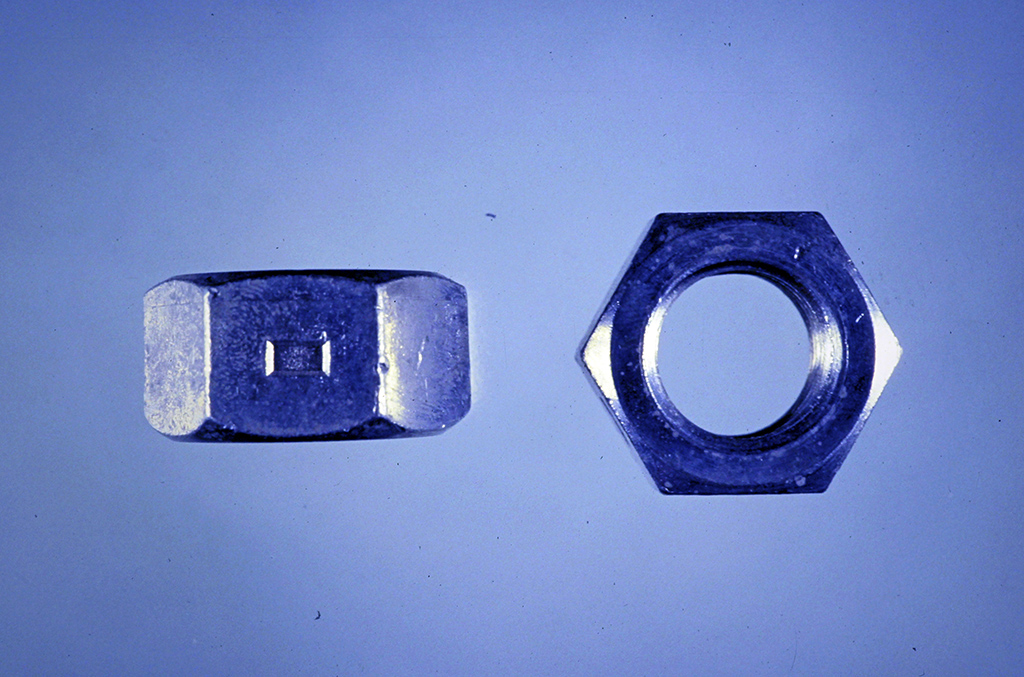

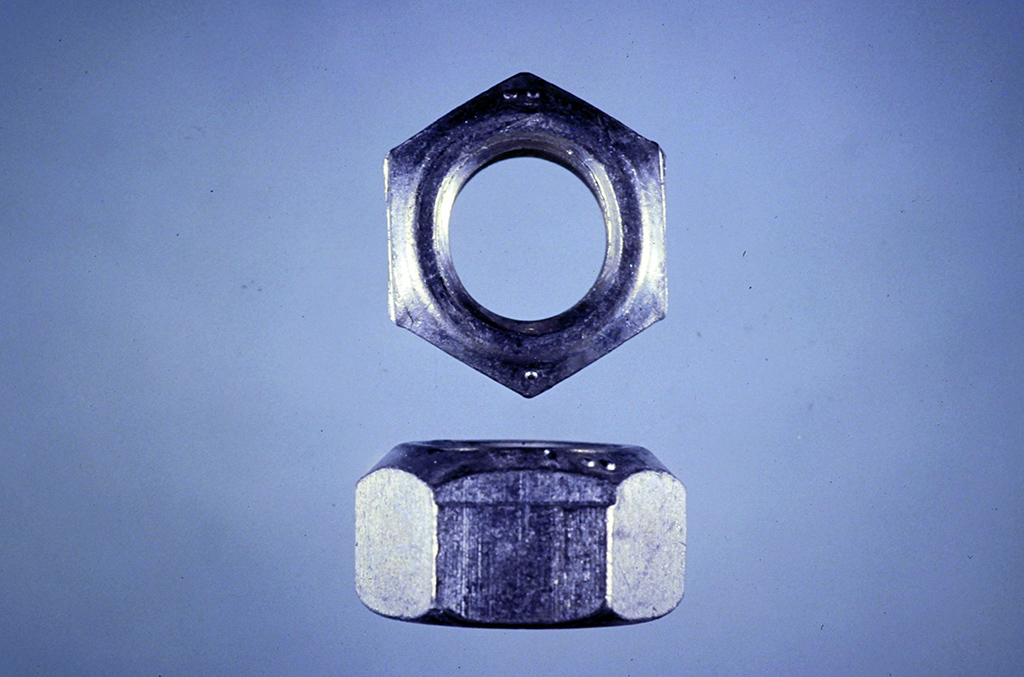

Jam, Finished, Heavy Hex Nuts side view for comparison

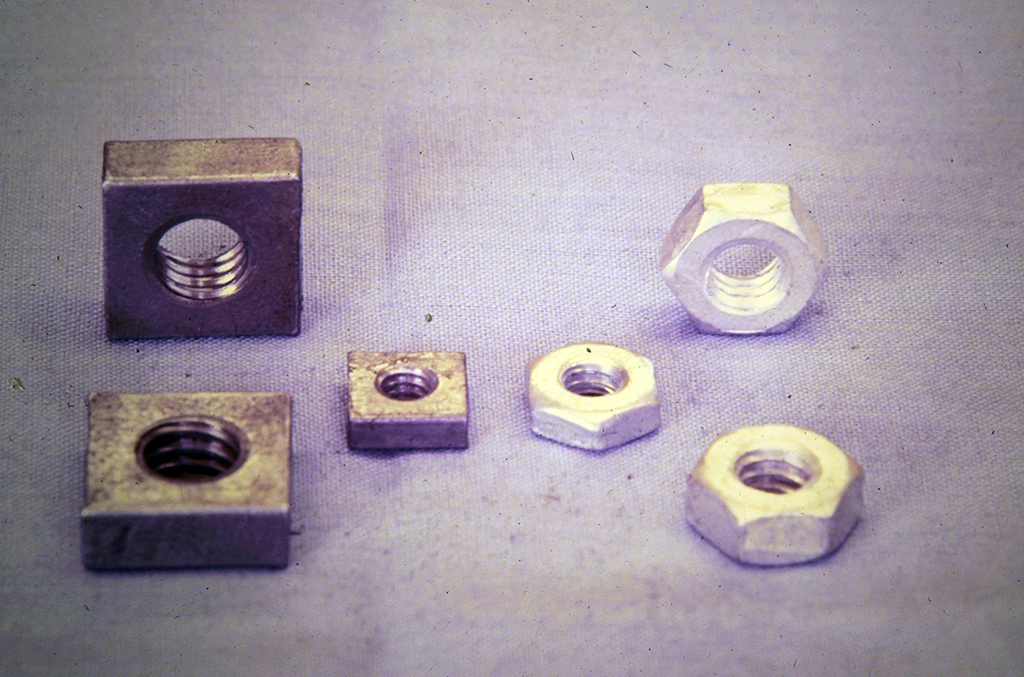

Hex & Square Machine Screw Nuts

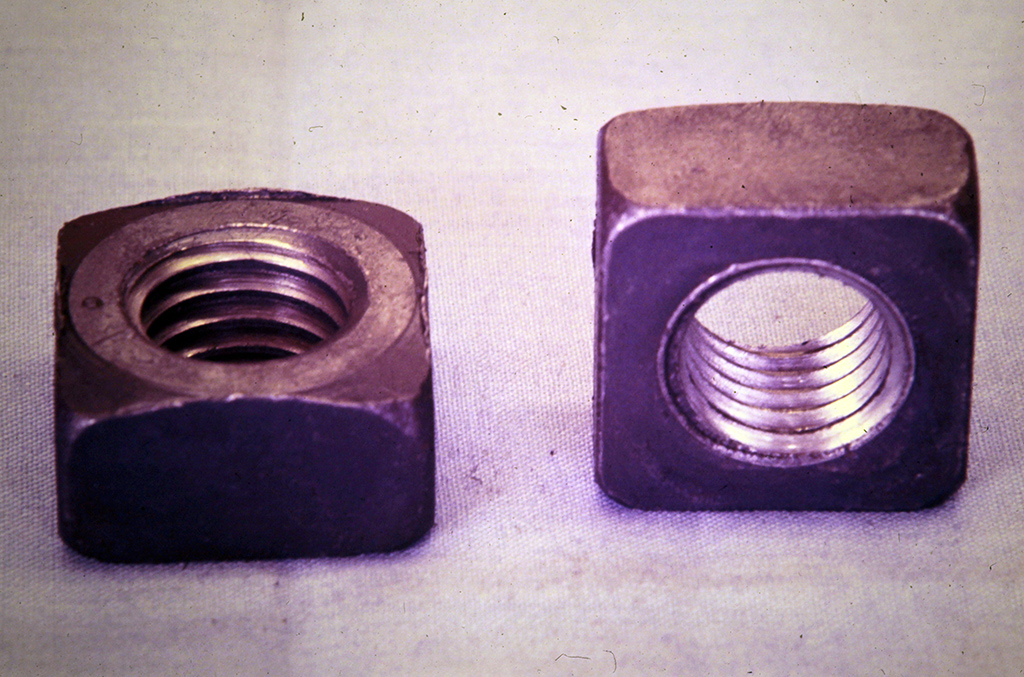

Regular Square Nuts

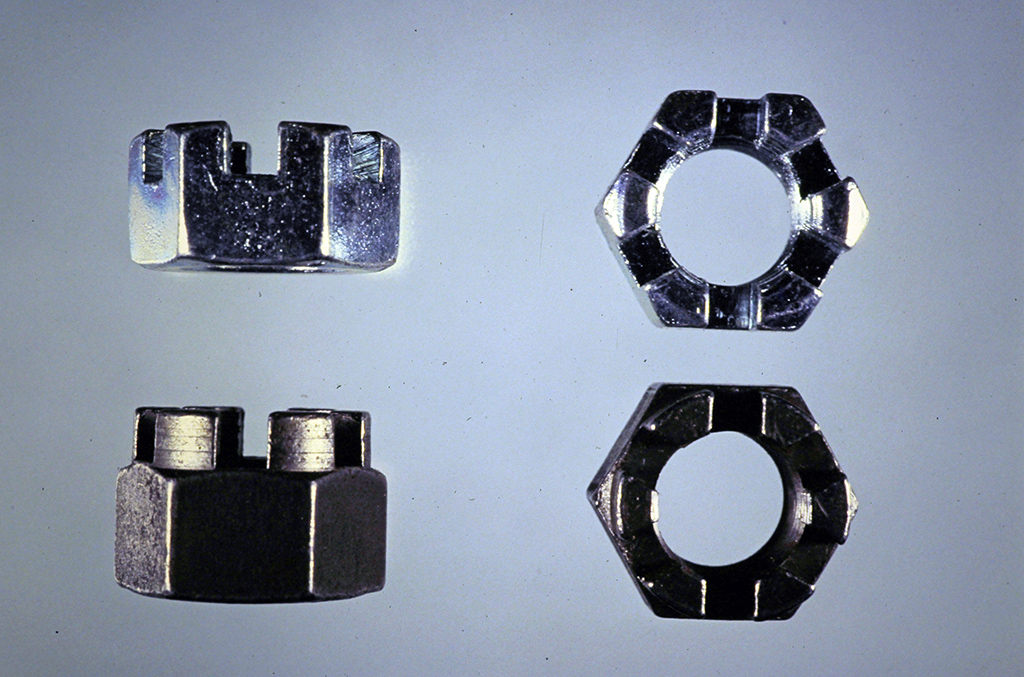

Hex Slotted Nuts (Top), Castellated (Castle) Hex Nut (Bottom)

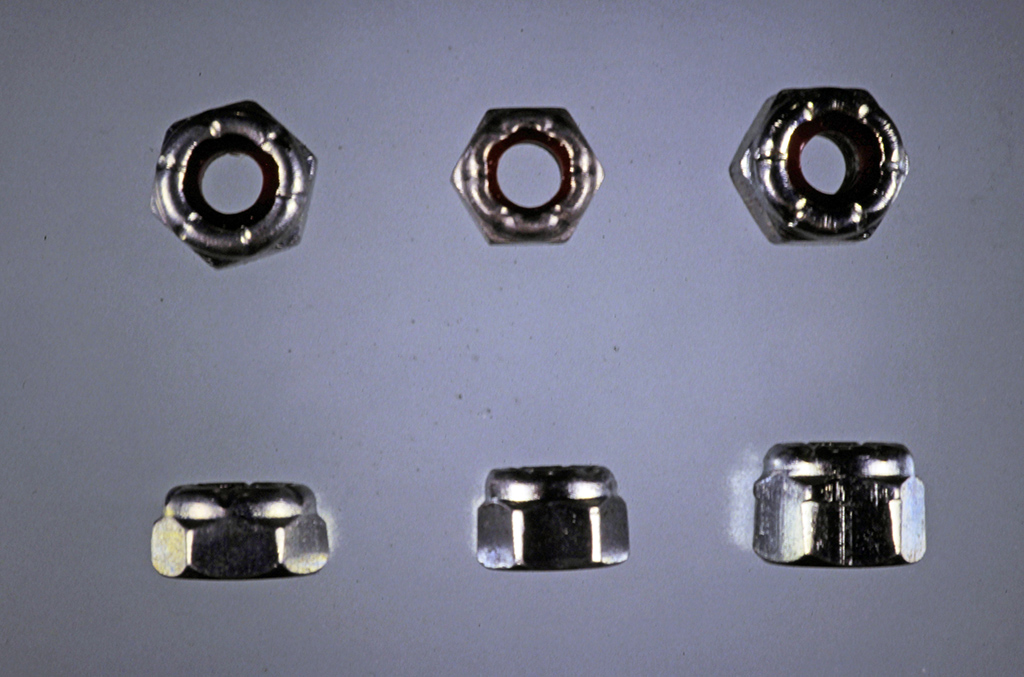

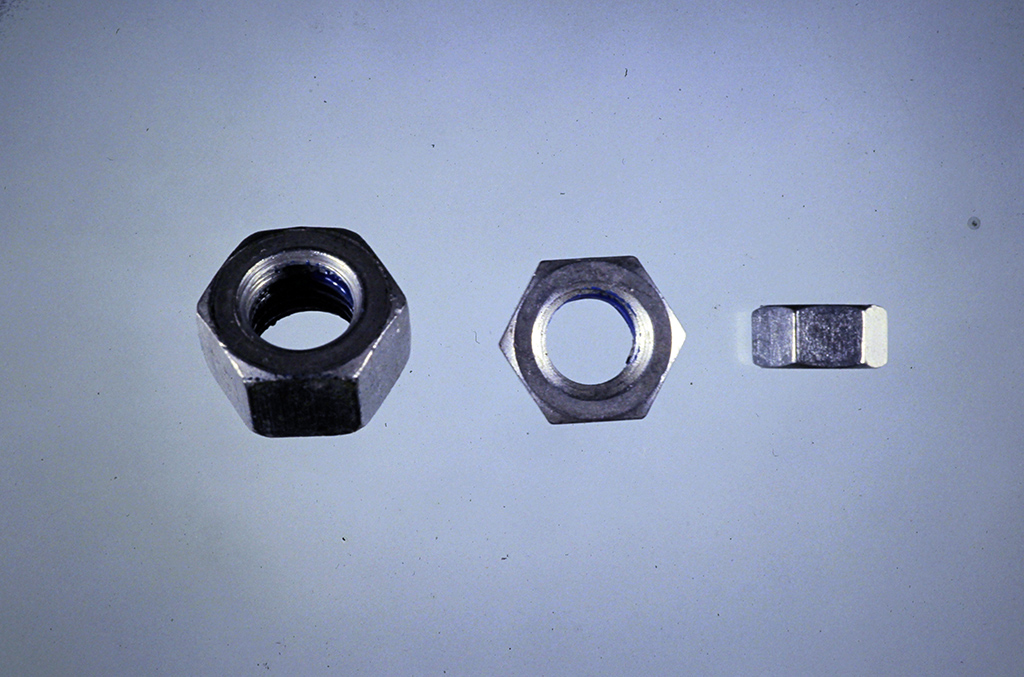

Nylon Insert Locknuts, Jam, Finished, Heavy comparison in Height size

Patched (locking element) Locknuts

Center Lock or often called a two-way locknut

Metallic Top Locknuts

Flexloc Nuts, Machine, Jam, Finished & Heavy styles

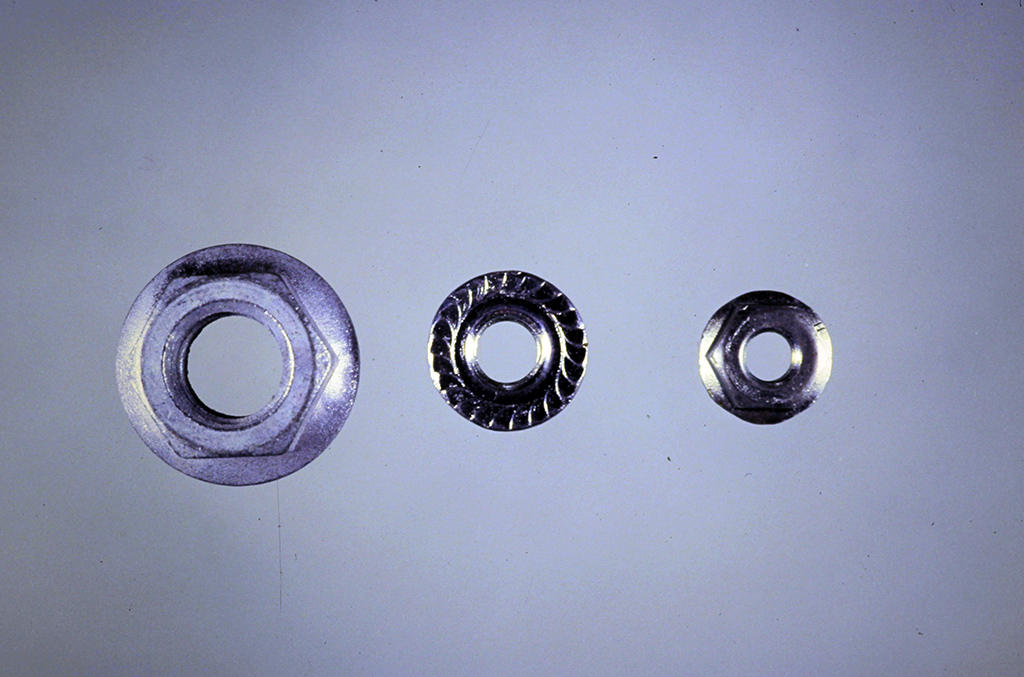

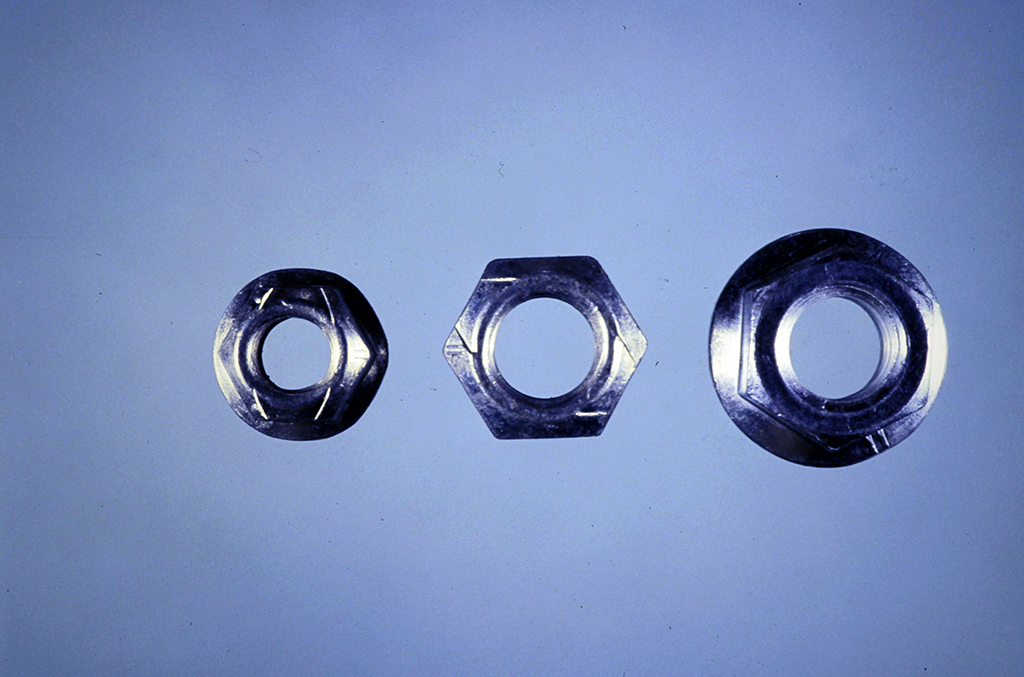

Flanged Locknuts, and some with serrations

More examples of various types of Steel Locknuts

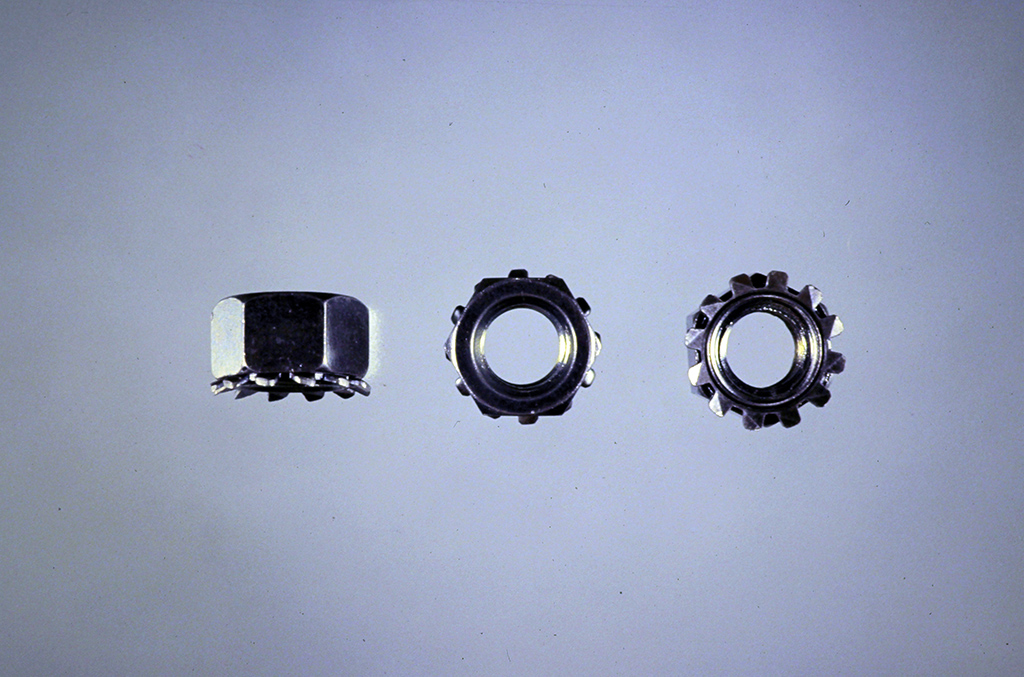

"Keps" locknuts, imported ones are called K-Lock Nuts

Heavy Hex Structural Nuts, Grades ASTM A194 GR. 2H, ASTM A563 GR C, and ASTM A563 GR DH

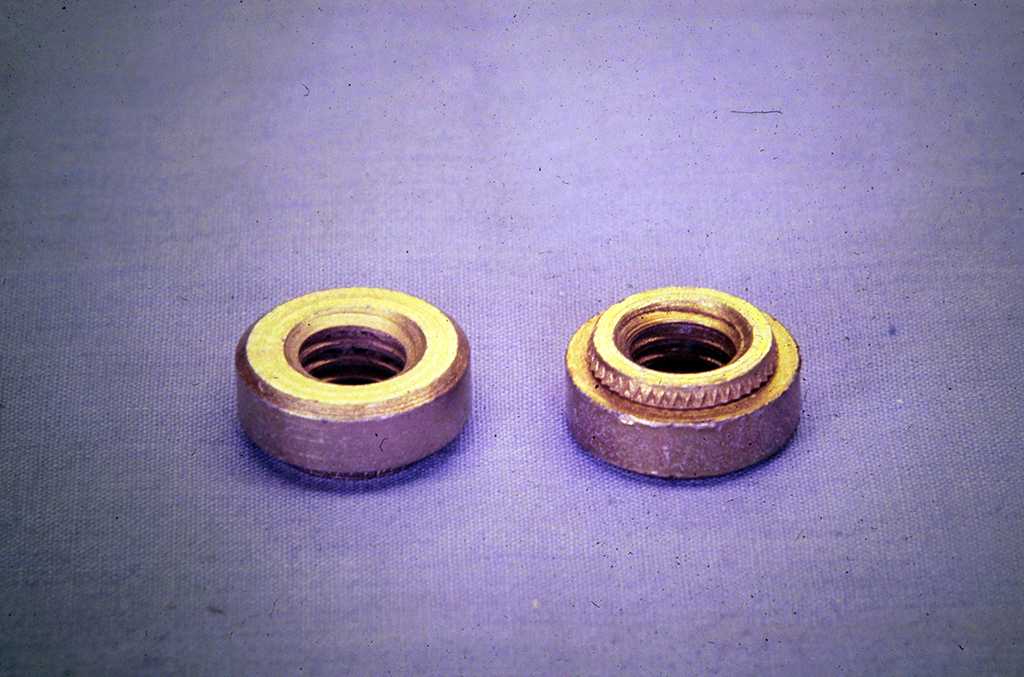

Plug Nuts, a good example of a Self-Clinching Fastener

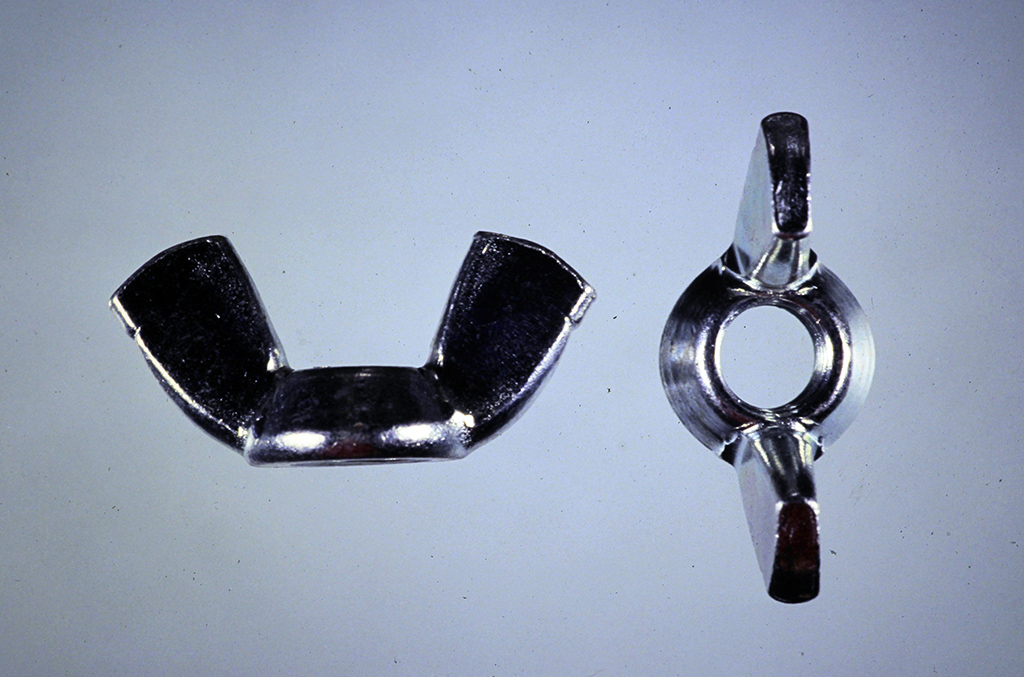

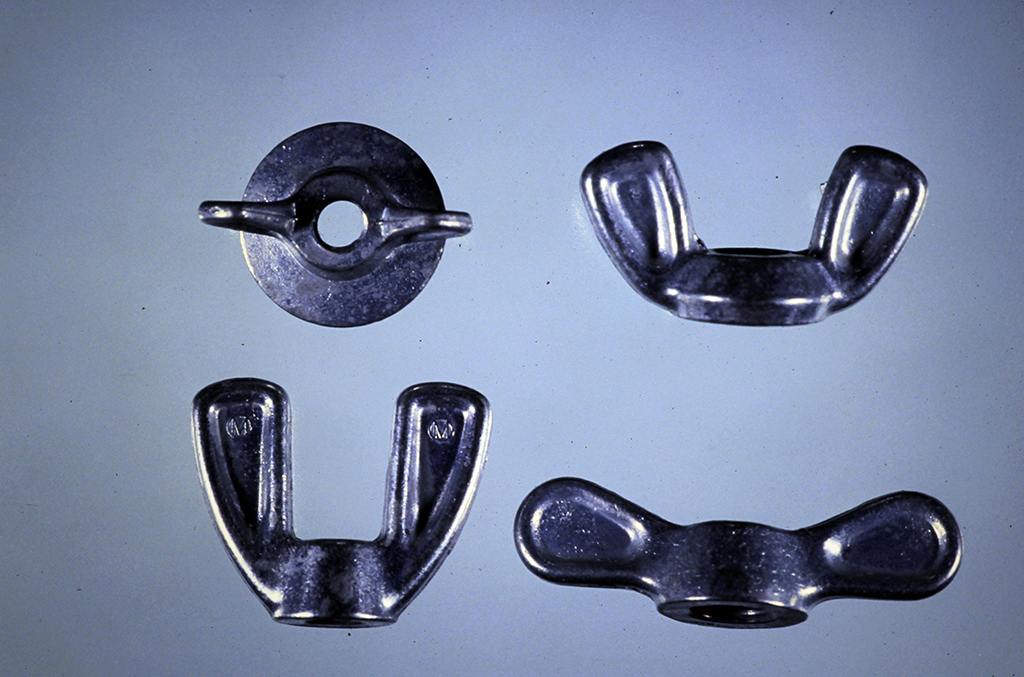

Cold Forged Steel Wing Nuts

Zinc Die Cast Wing Nuts

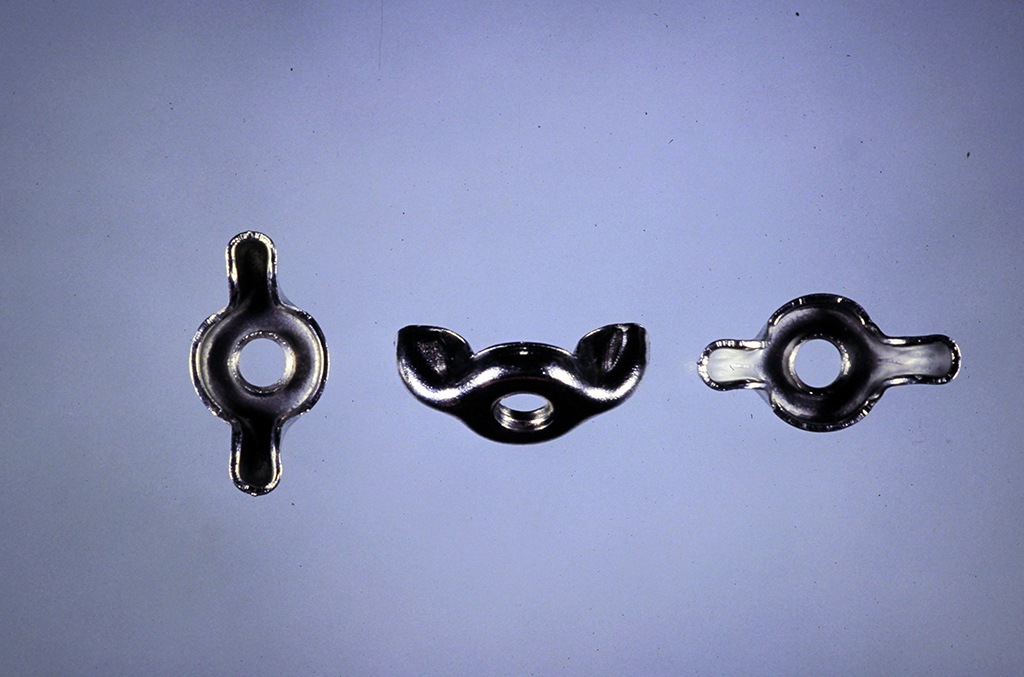

Stamped Wing Nuts

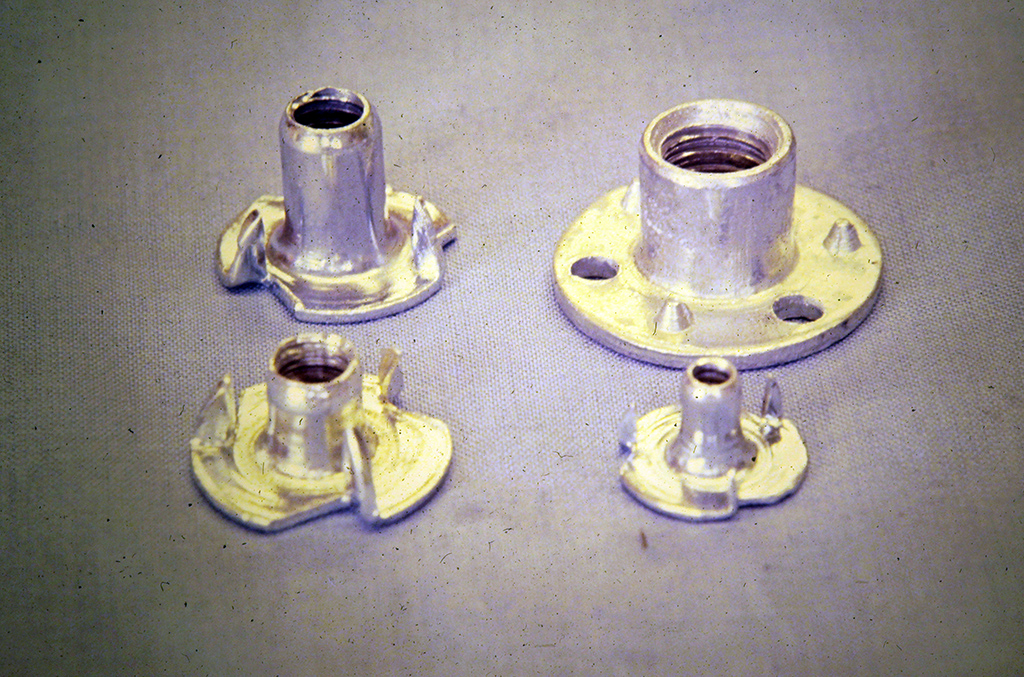

Tee Nuts

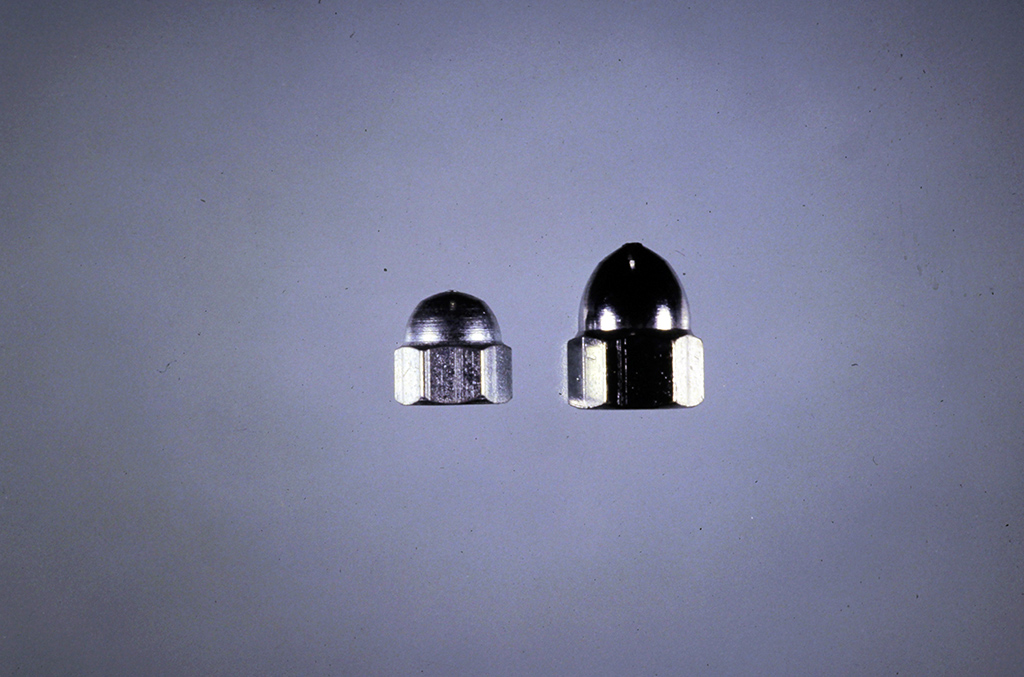

Acorn Nuts, Low Crown & High Crown (Solid, not a Cap Nut)

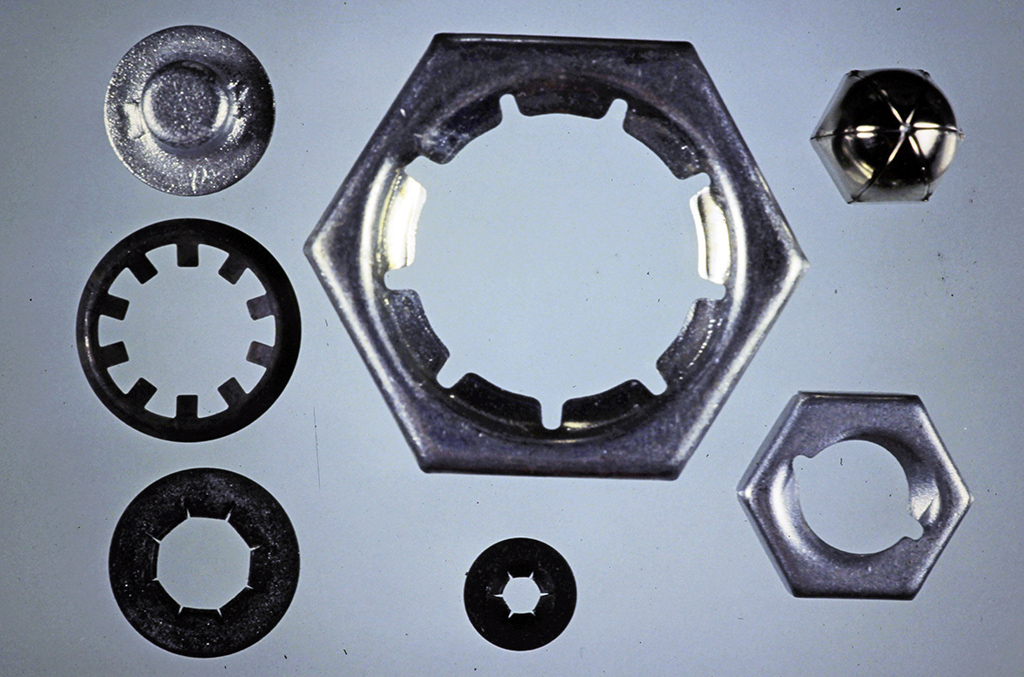

PAL Nuts, a wide variety of types to satisfy numerous applications

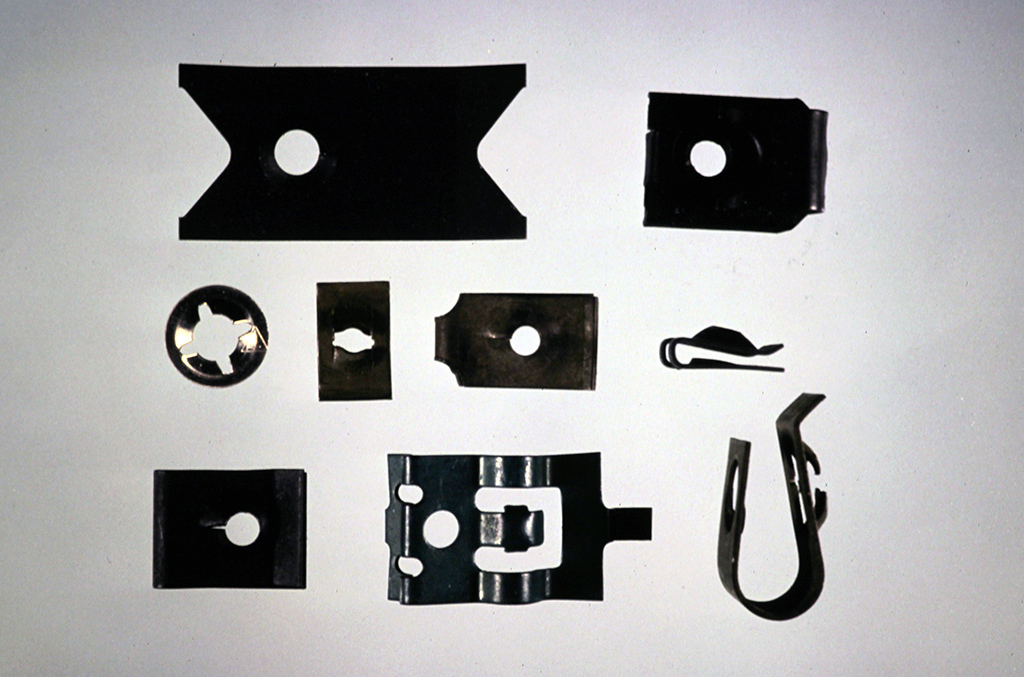

Spring Steel Nuts, often called Tinnerman Speed Nuts

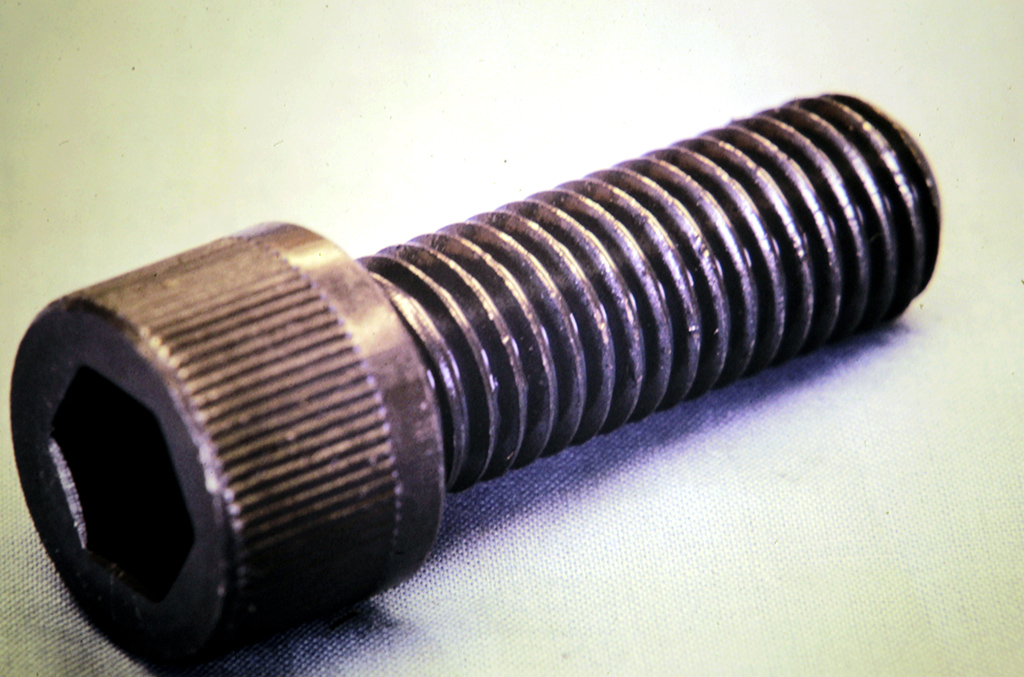

Socket Head Cap Screws, 1960 Series

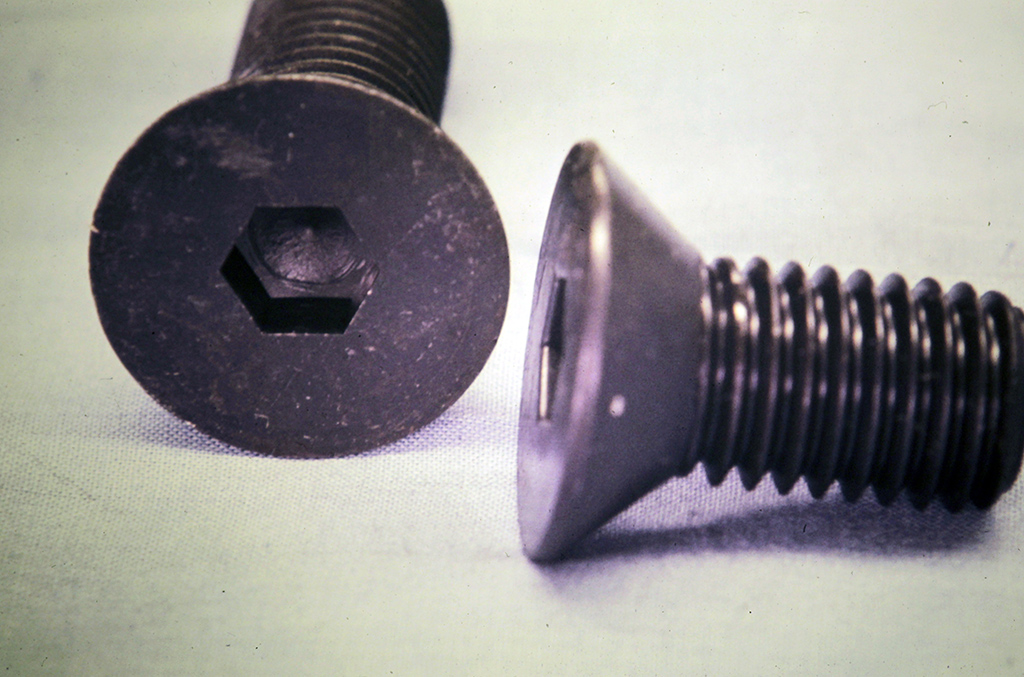

Flat Head Socket Head Cap Screws

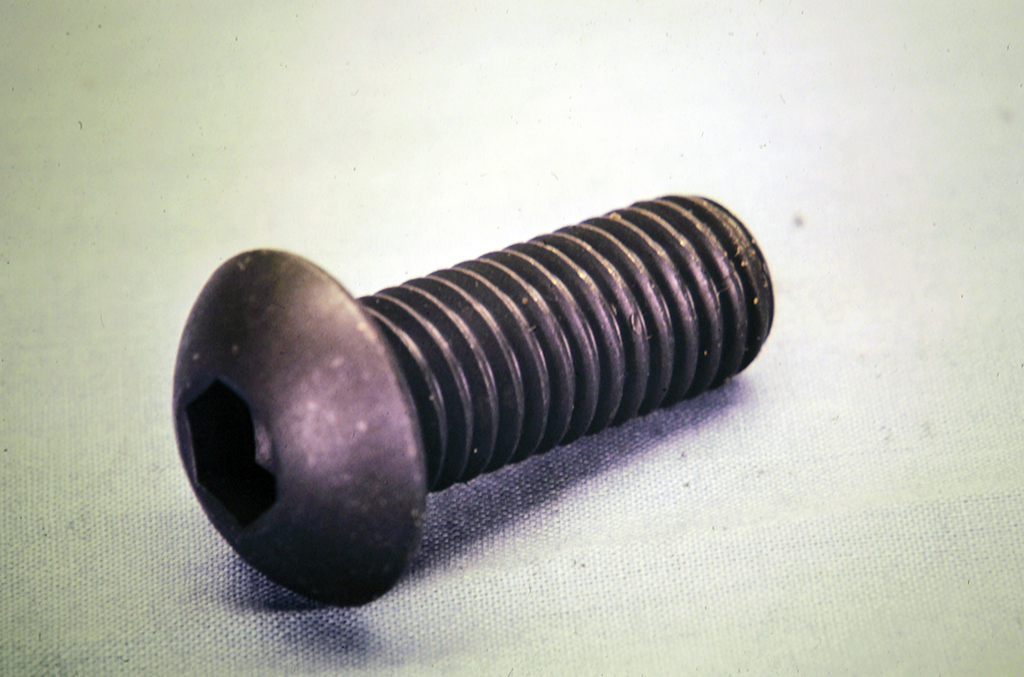

Button Head Socket Cap Screws

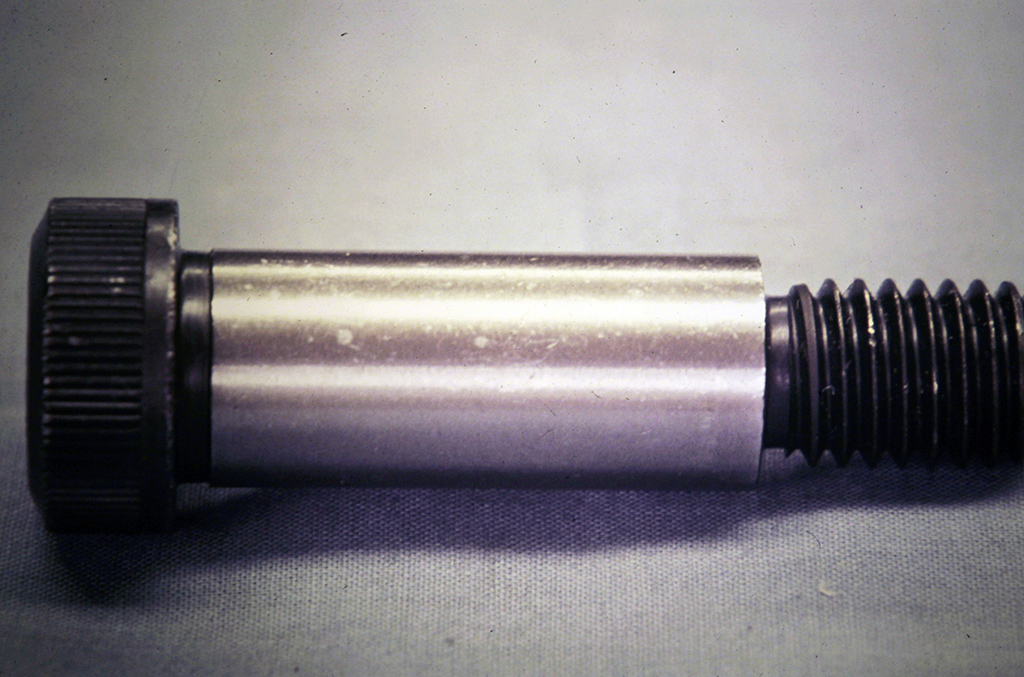

Shoulder Screw, aka Socket Head Stripper Bolt

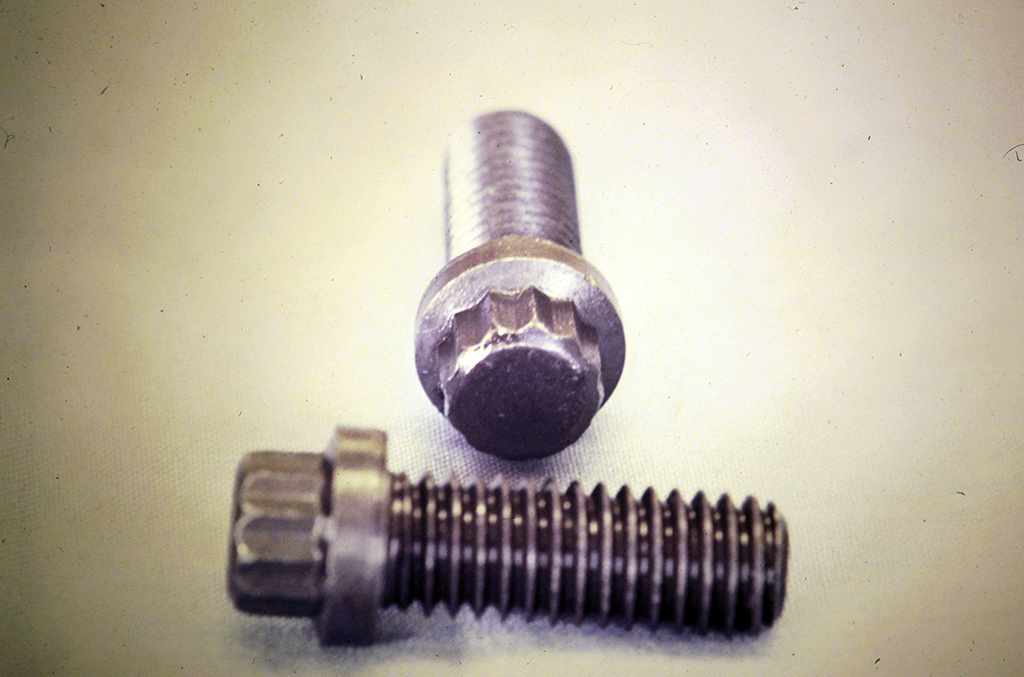

12 Point Flange Screw

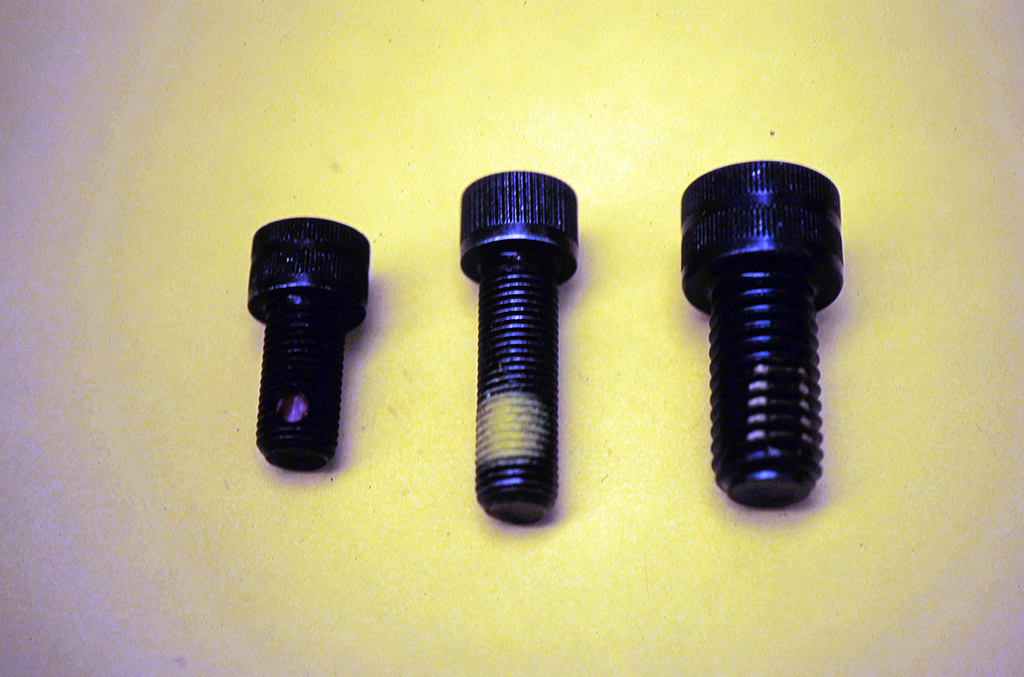

Locking Element, Nylon Pellet, Patch, Nylon Strip on Socket Cap Screws

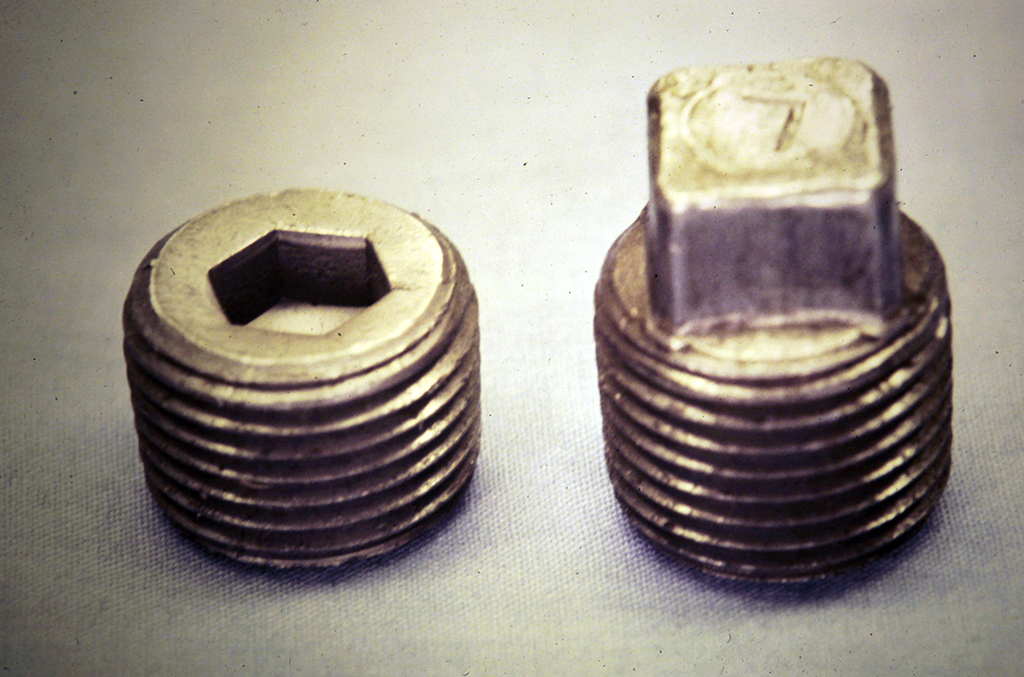

Pressure Plugs

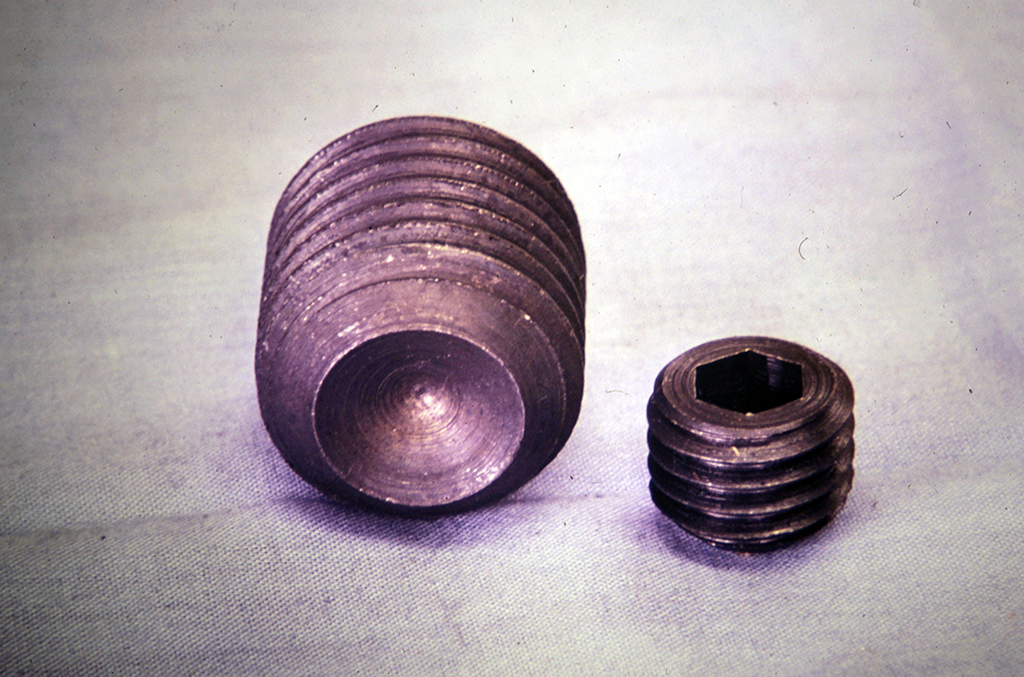

Socket Set Screw, Cup Point

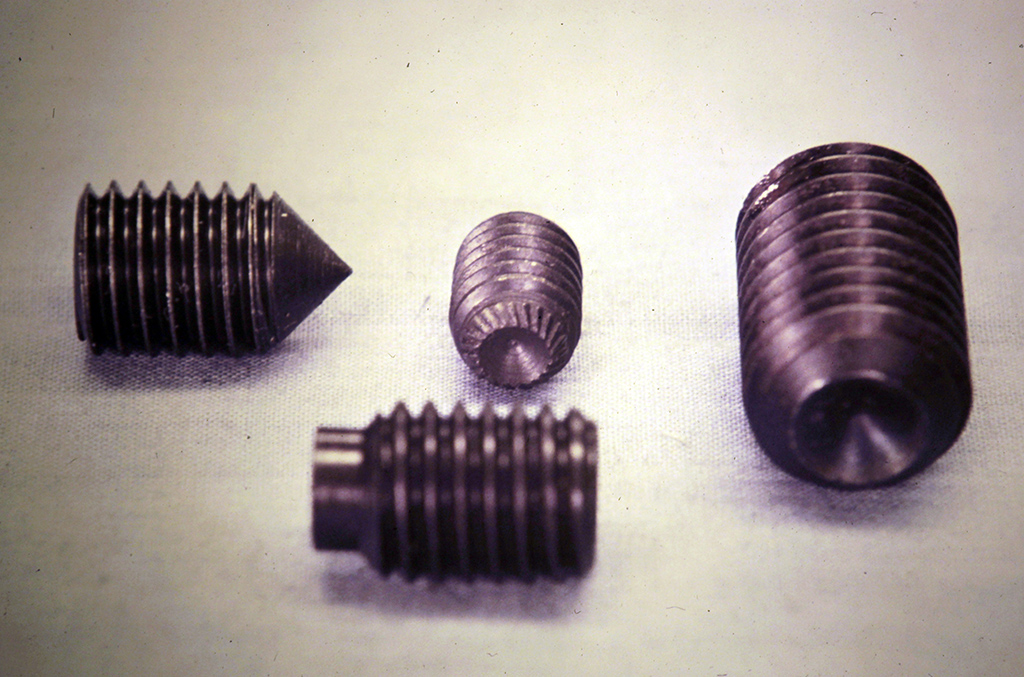

Points on Socket Set Screws, Cone, Knurled Cup & Cup (Top), 1/2 Dog (Bottom)

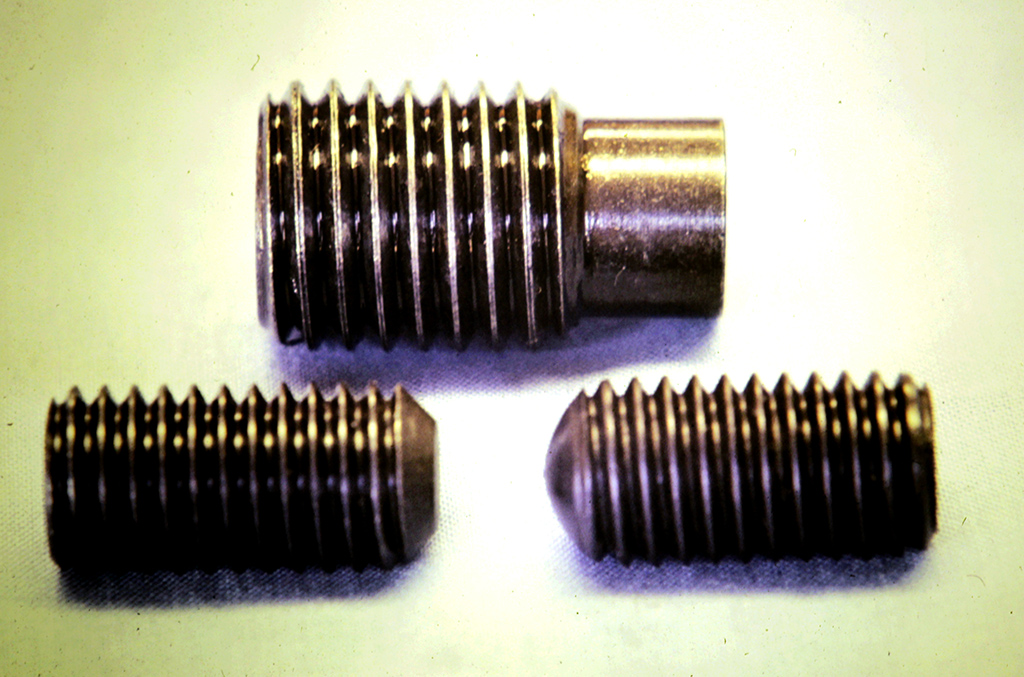

Points on Socket Set Screws, Full Dog, Oval & Flat

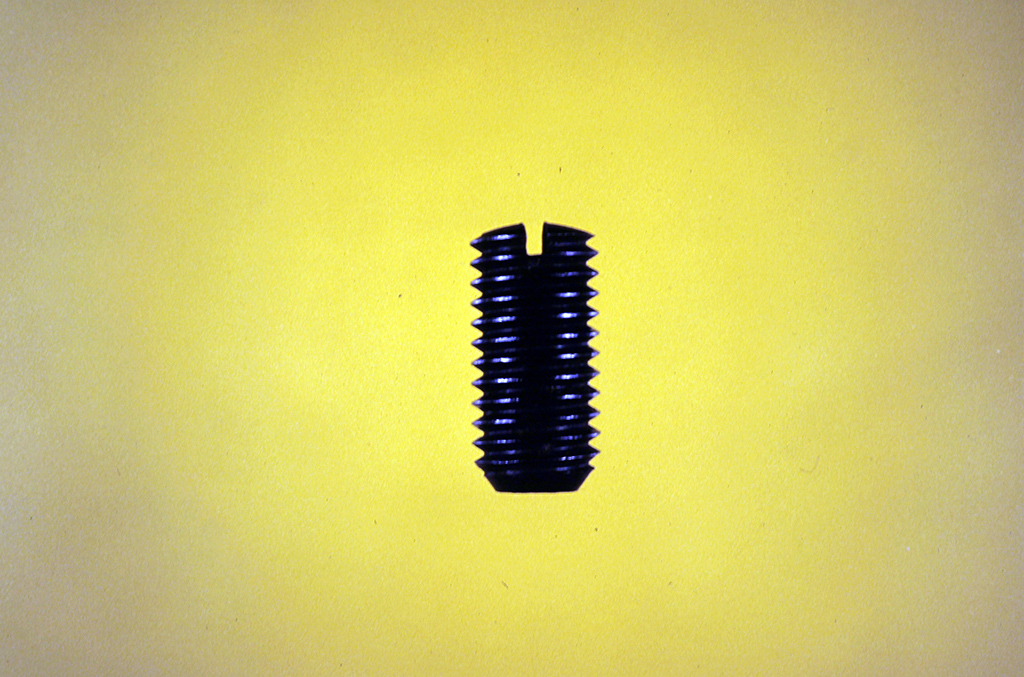

Slotted Set Screw

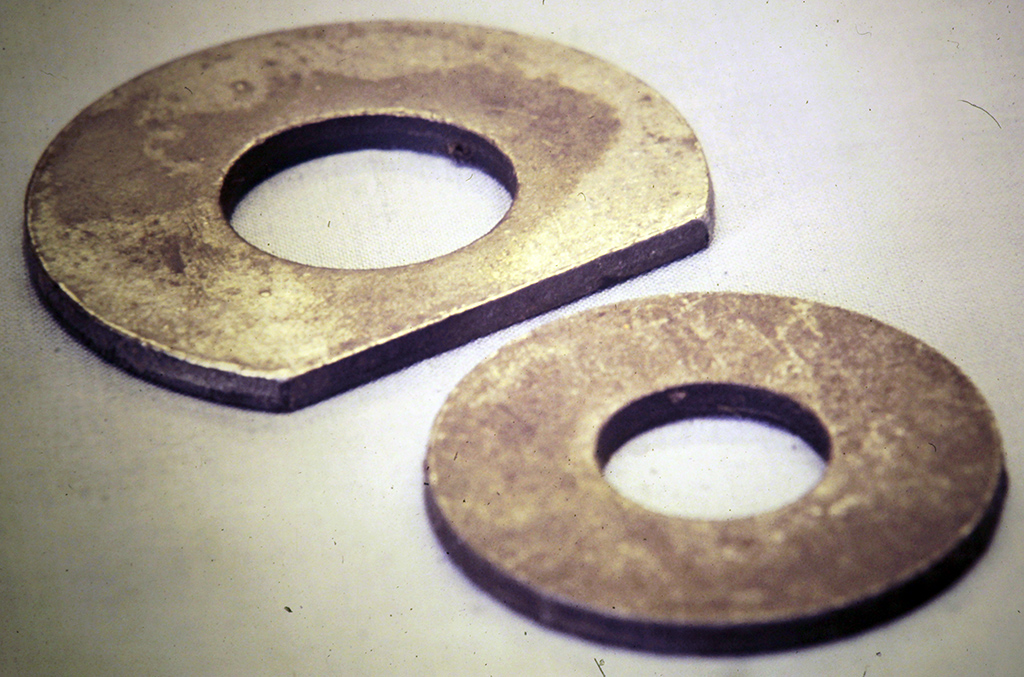

Structural Flatwasher and a Clipped Structural Flatwasher

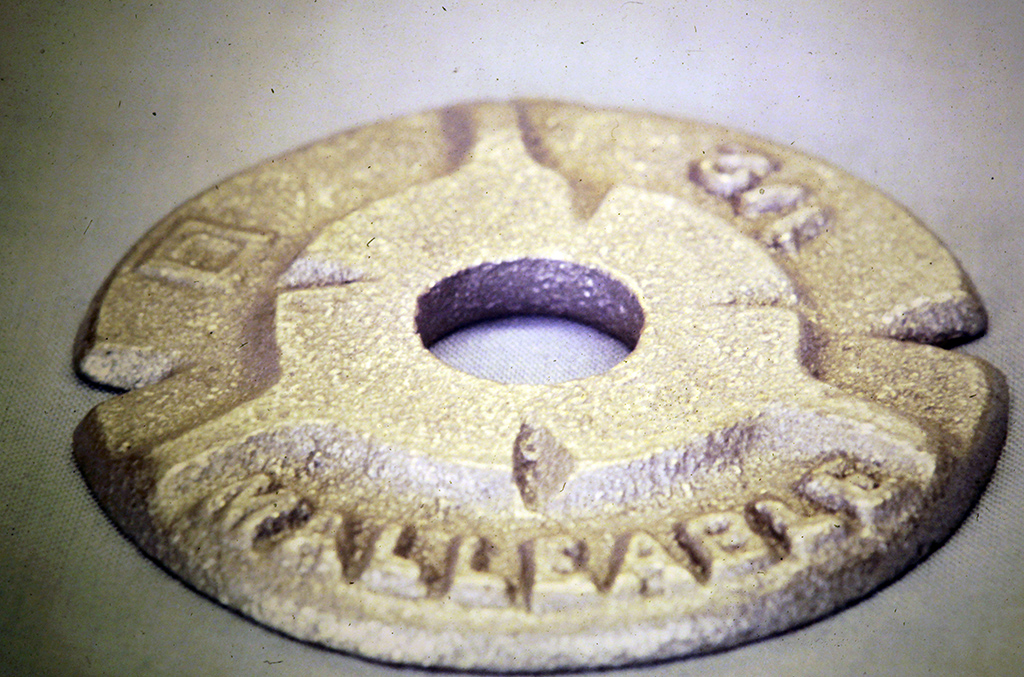

Malleable Iron Washer, often called a Dock Washer

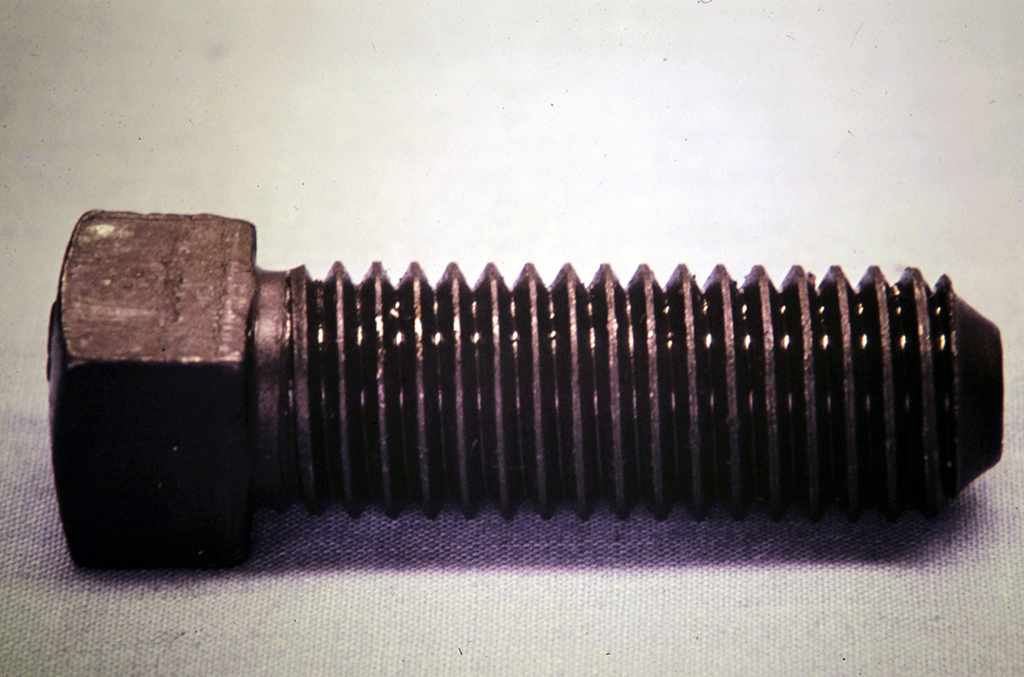

Square Head, Set Screw, Cup Point (they come in various point styles)

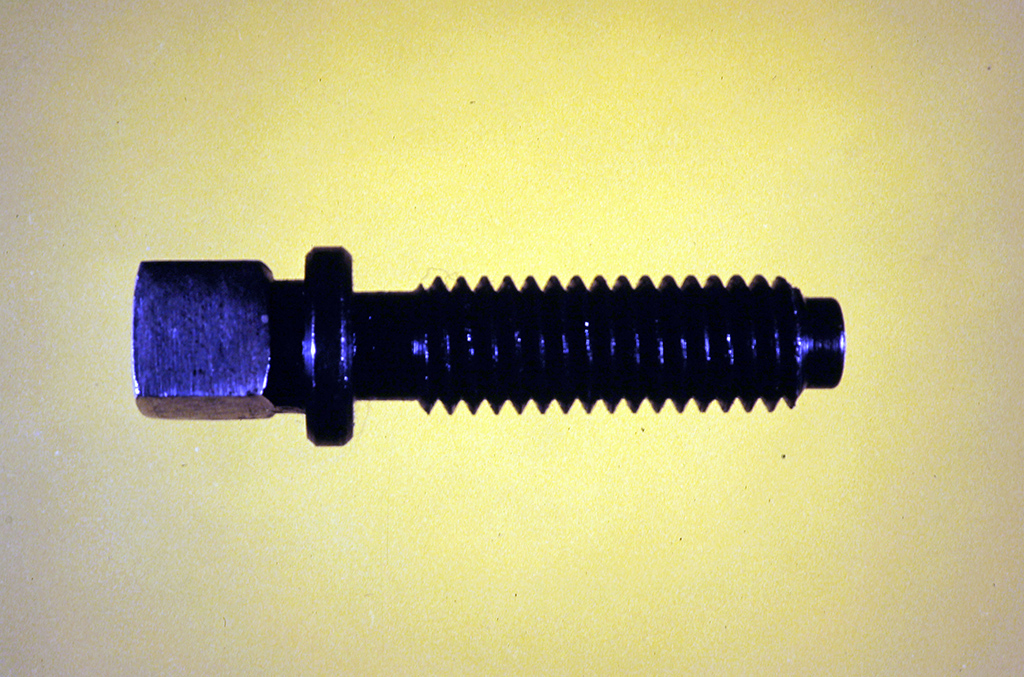

Tool Post Screw

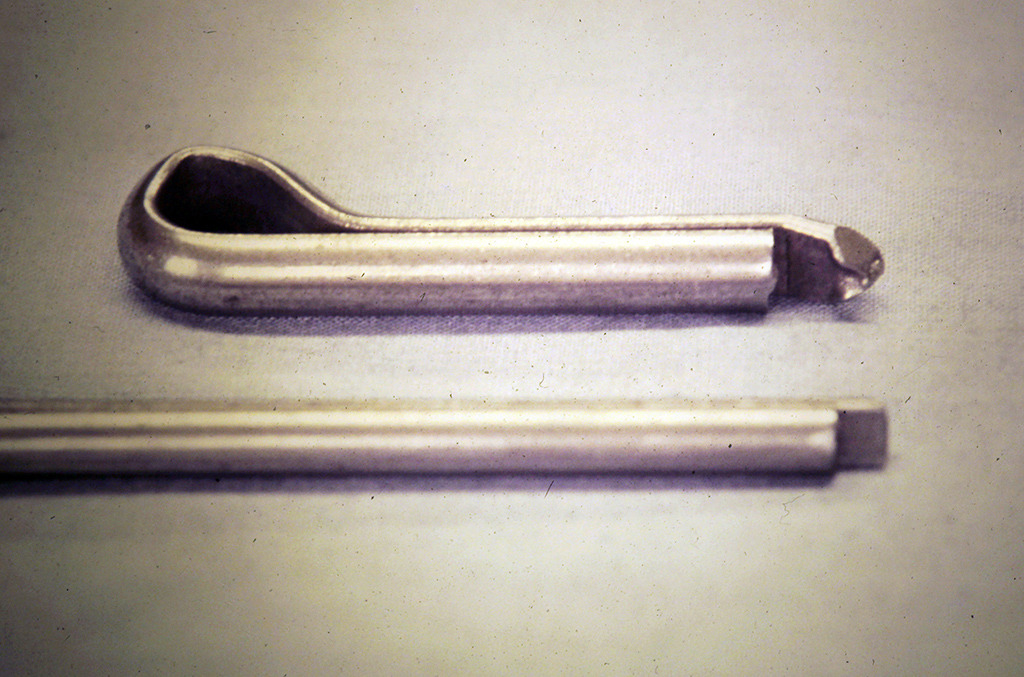

Cotter Pins: Hammer Lock (top), Efficiency (Bottom)

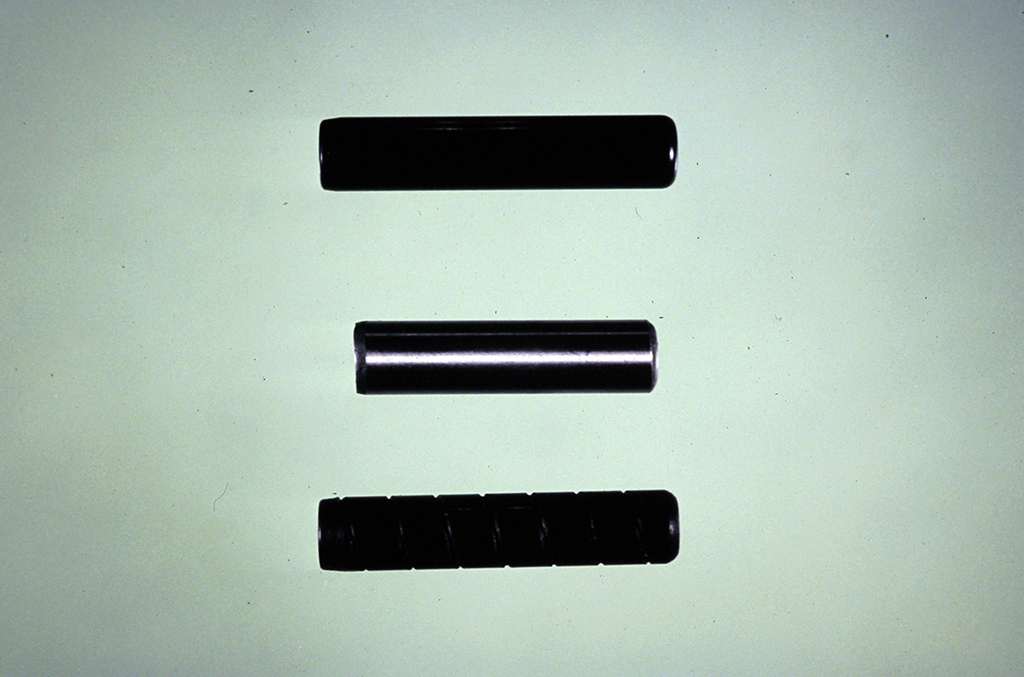

Dowel Pins: Vented (Top), Standard .002 (Middle), Pullout (Bottom)

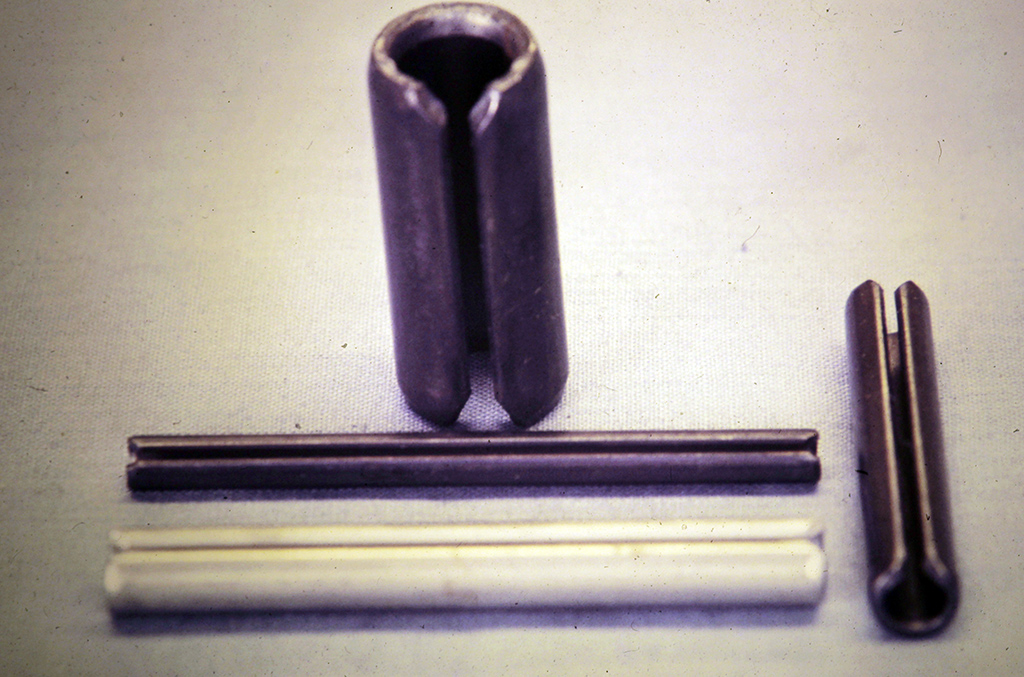

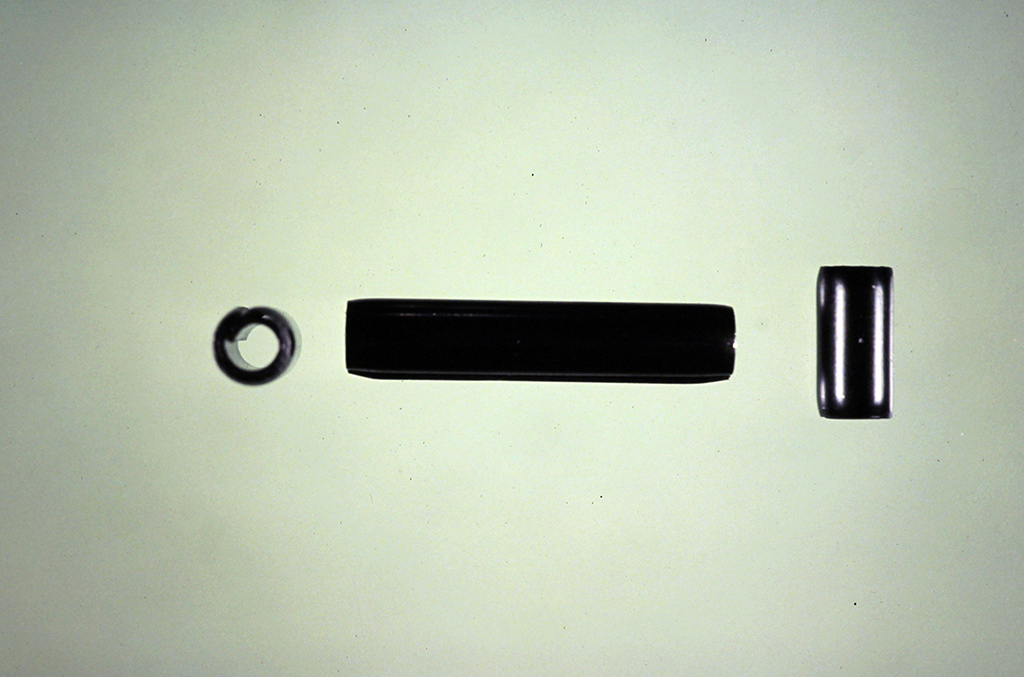

Spring Pins

Spirol Pins

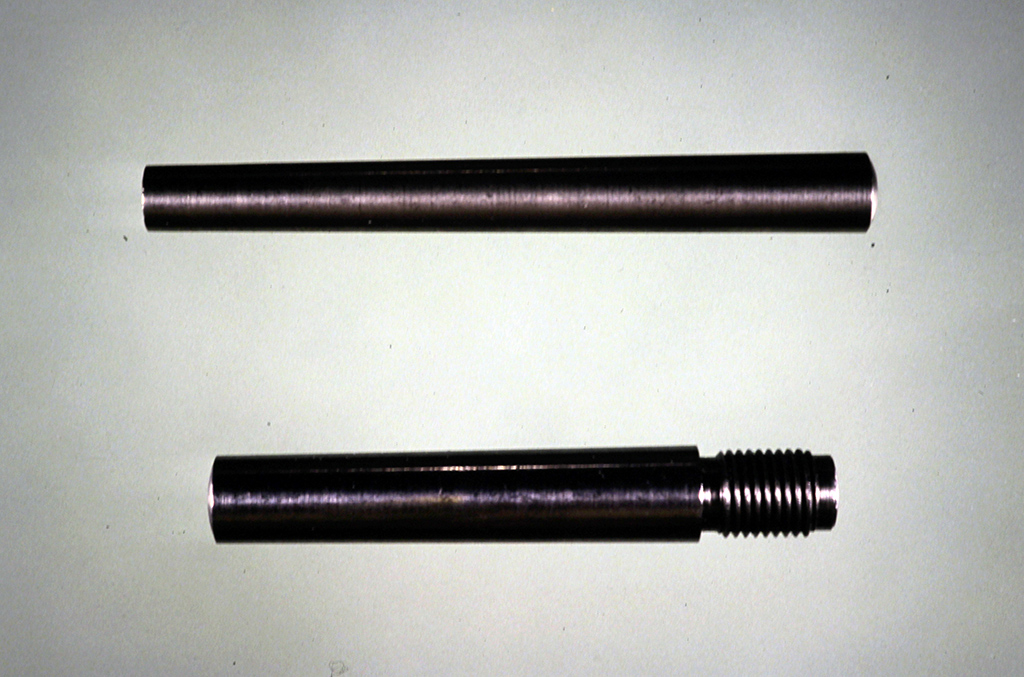

Taper Pins

Groove Pins

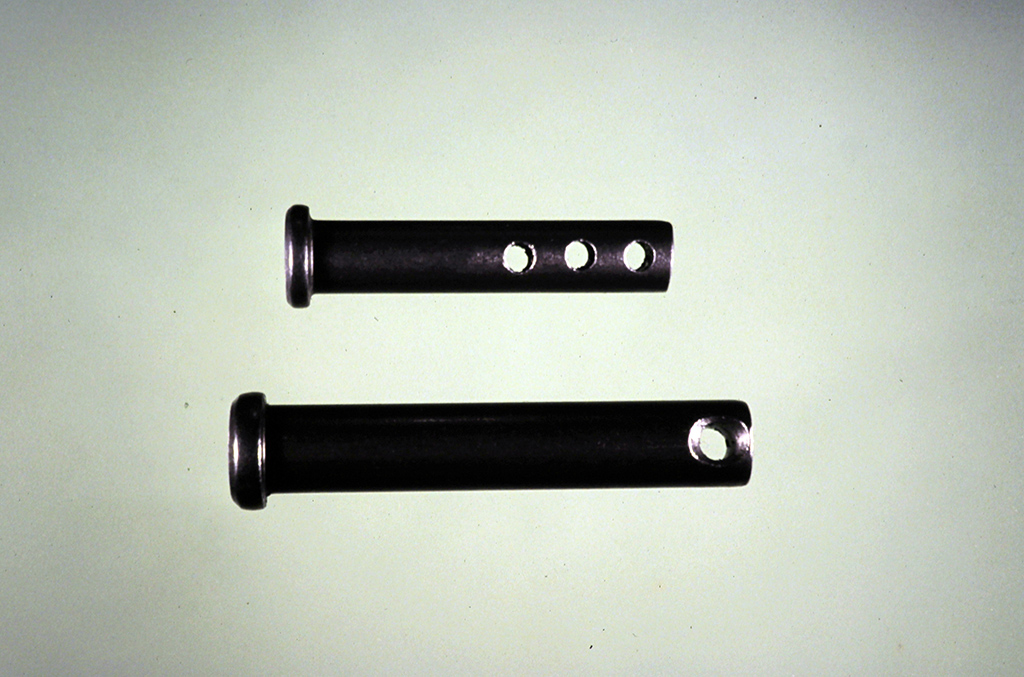

Clevis Pins

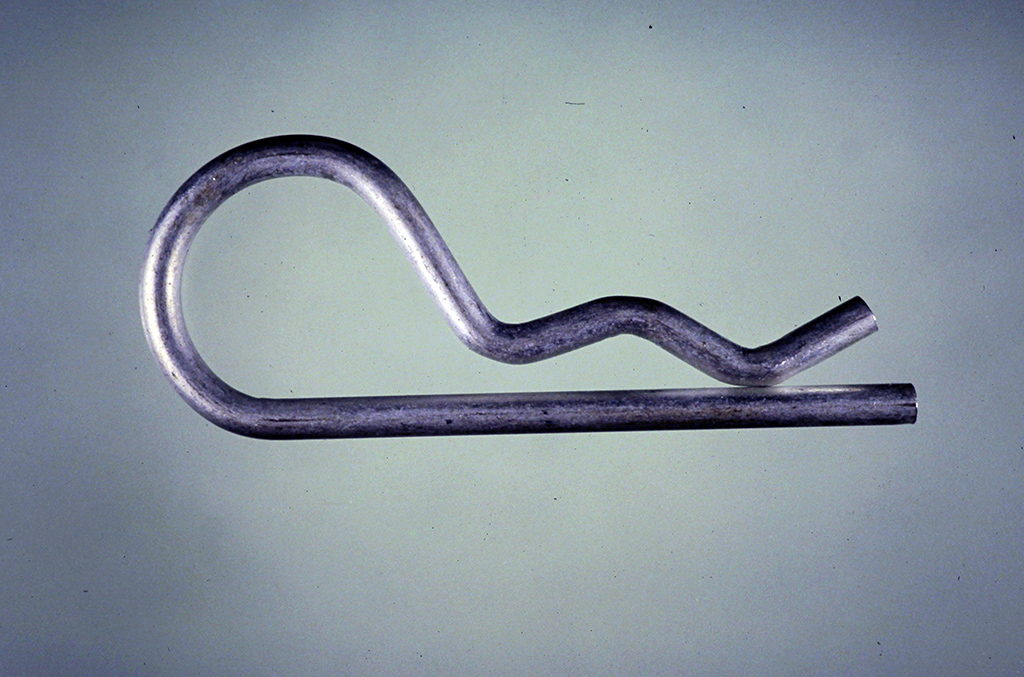

Hair Pin Clip

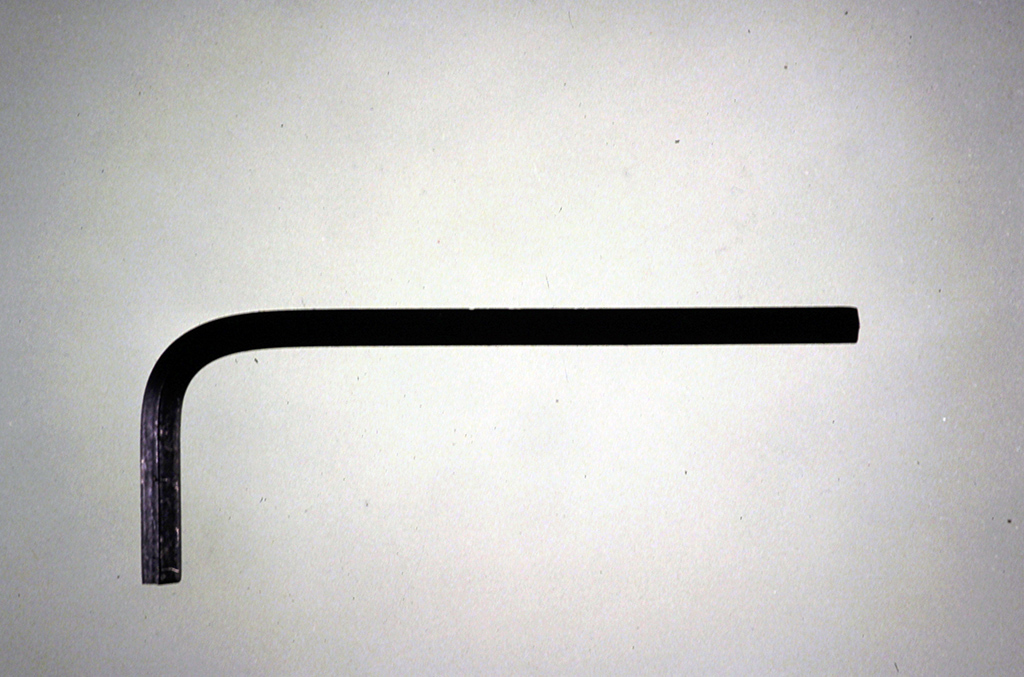

Hex Key Wrench

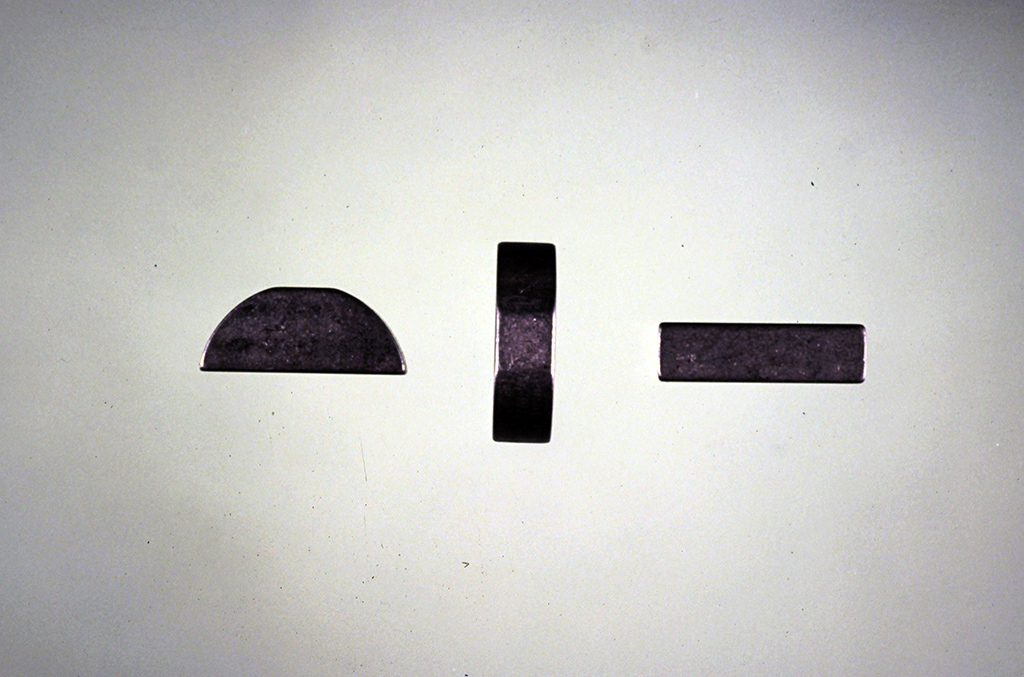

Woodruff Key

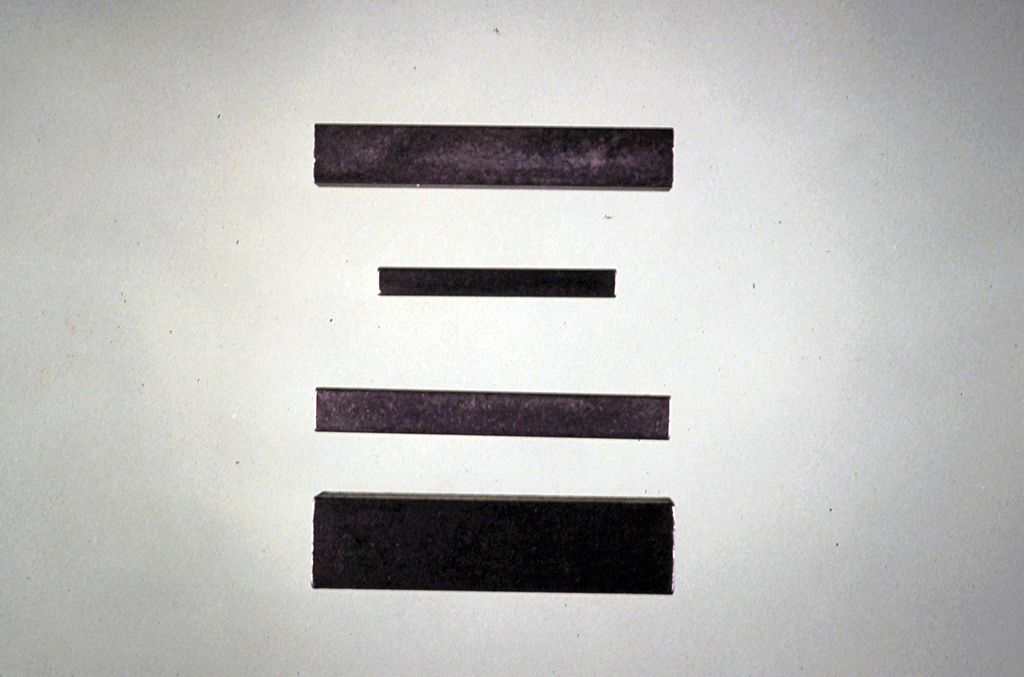

Square Machine Key

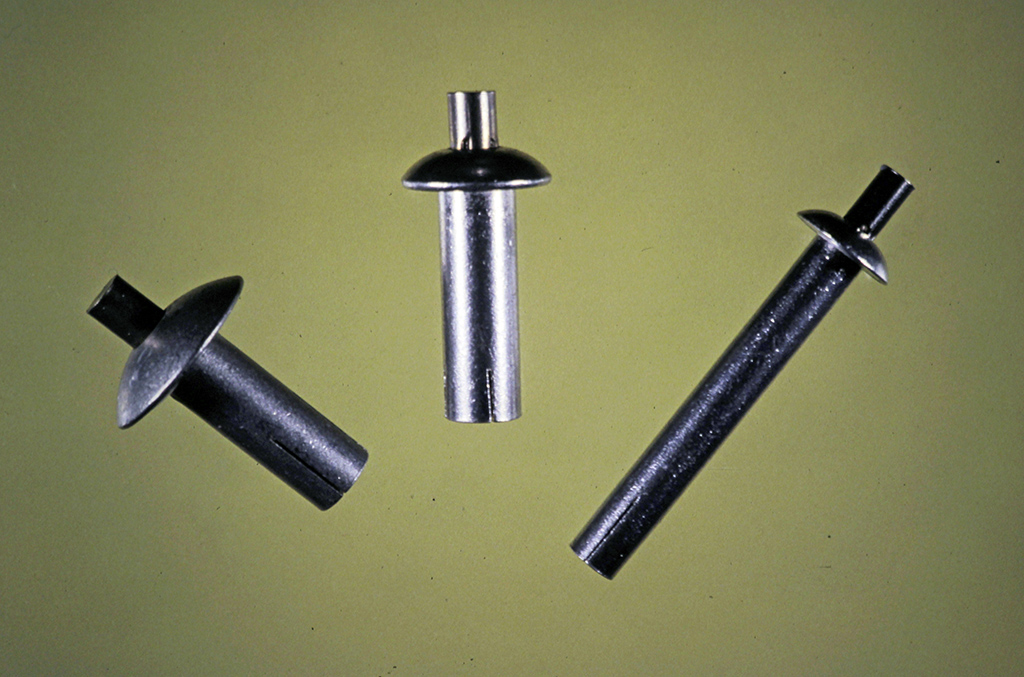

Drive Rivets

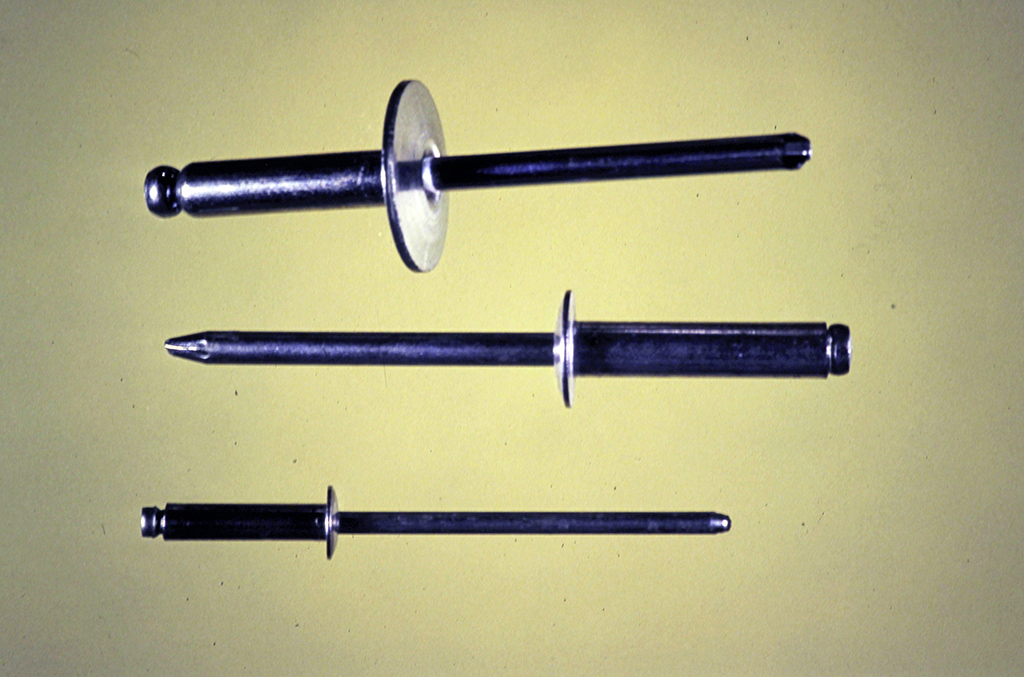

Blind Rivets

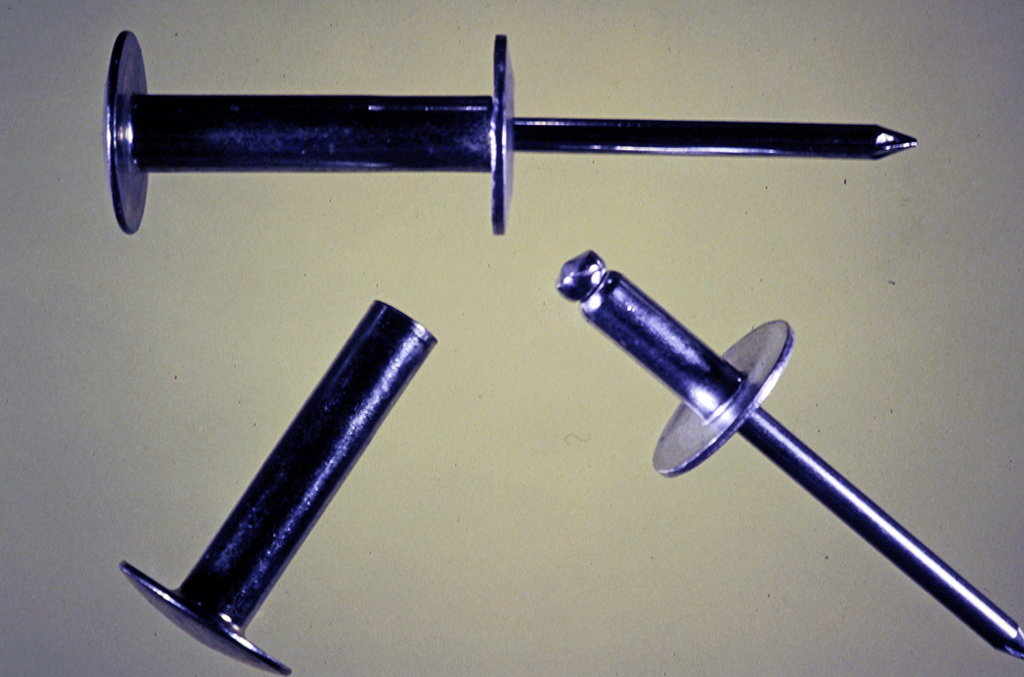

Blind Rivets

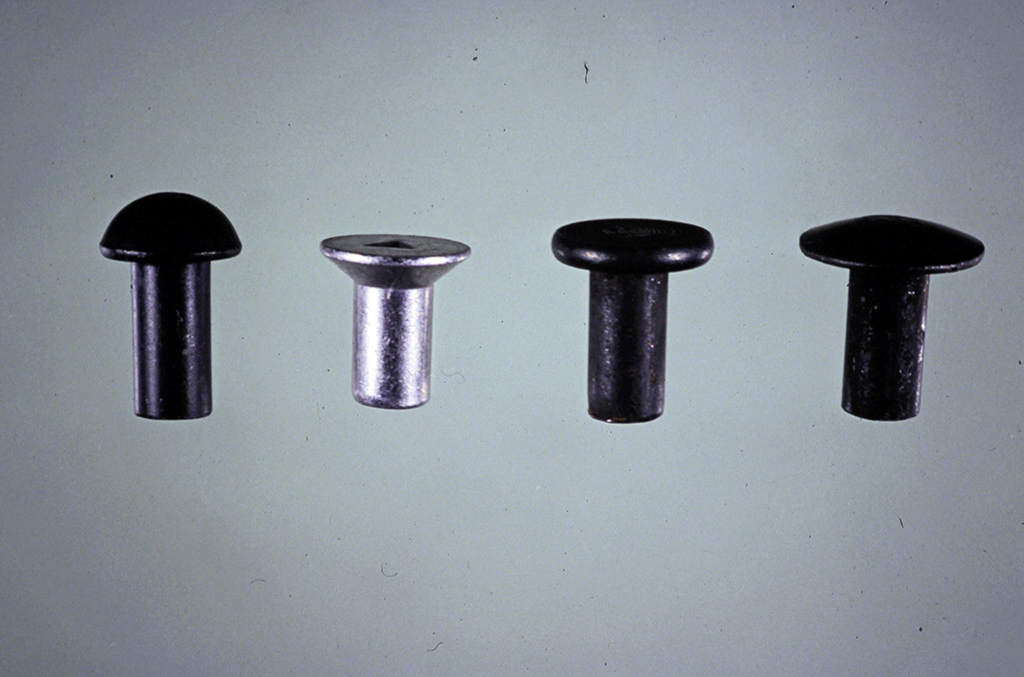

Solid Rivets

Semi-Tubular Rivets

Drop-In Anchor

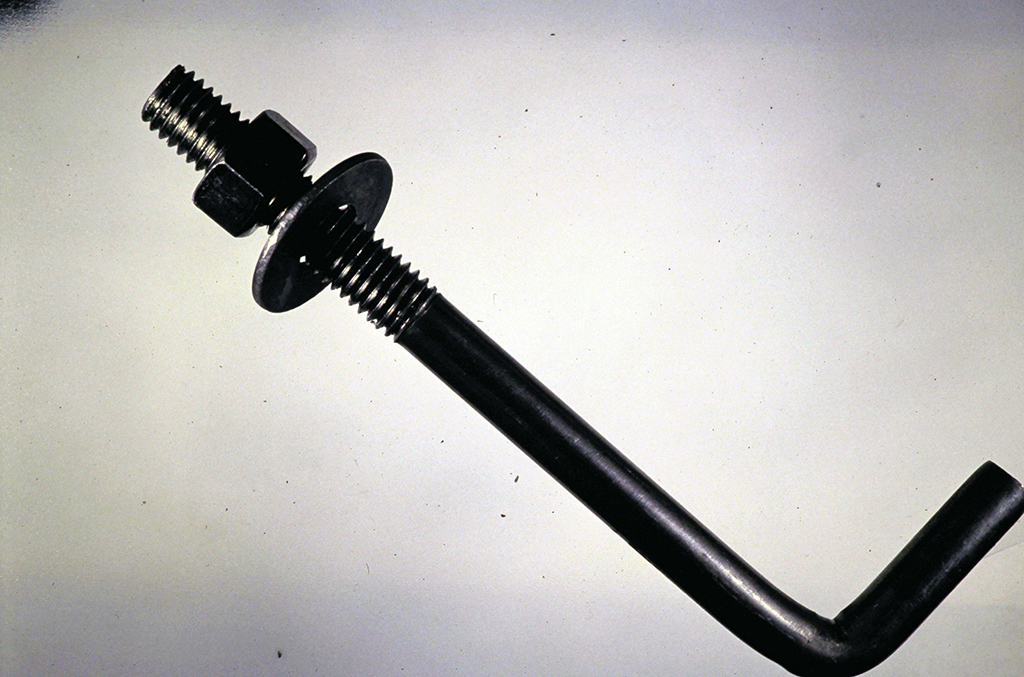

Anchor Bolt

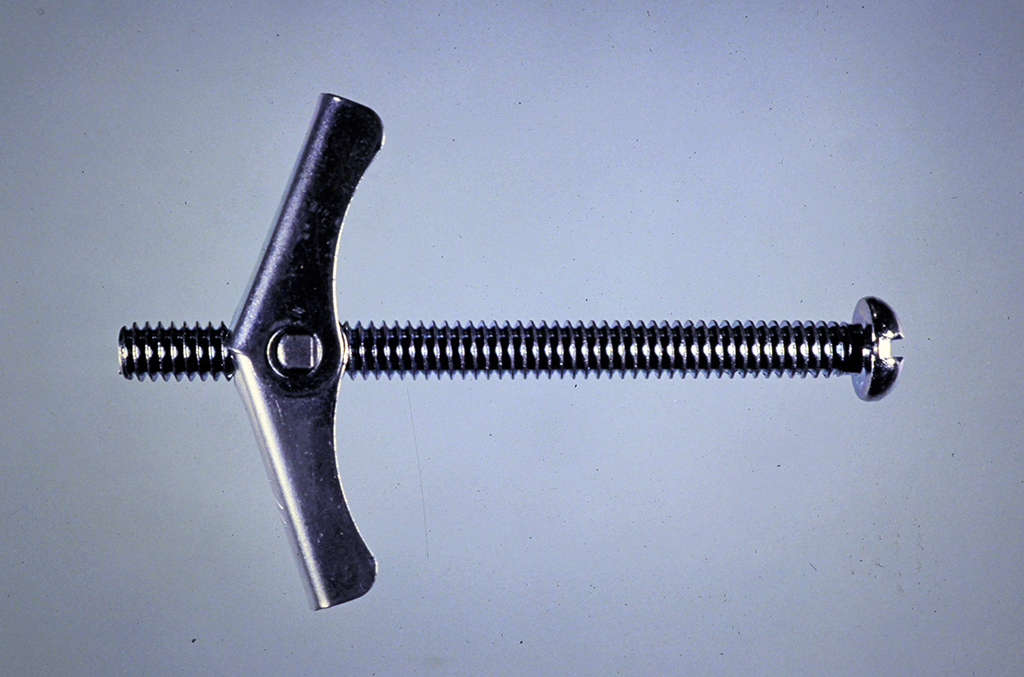

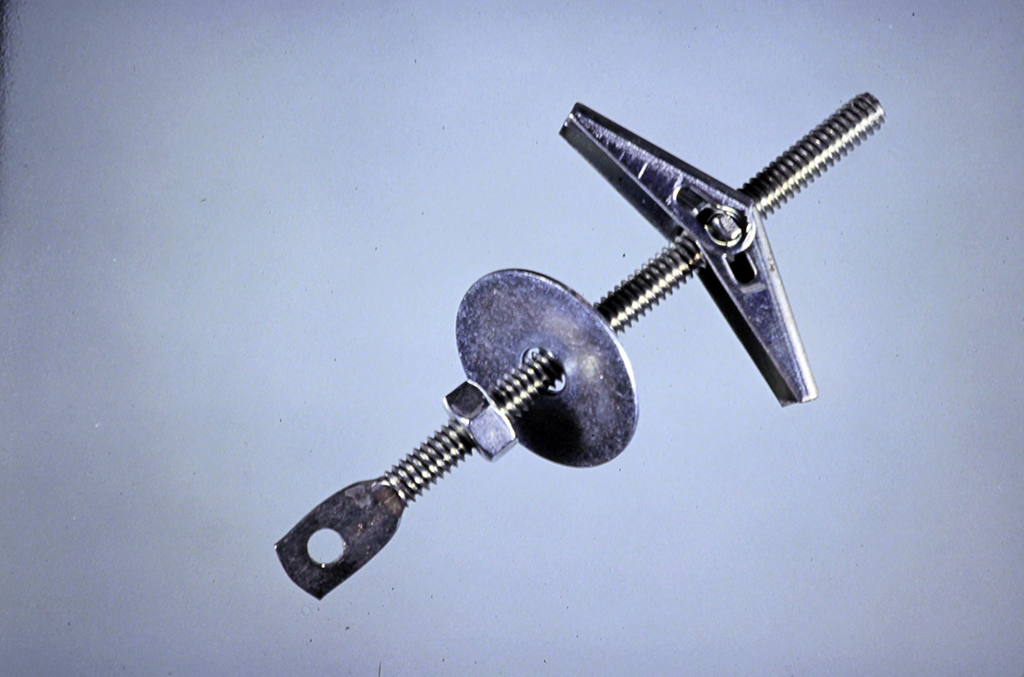

Toggle Bolt

Acoustical Toggle Bolt

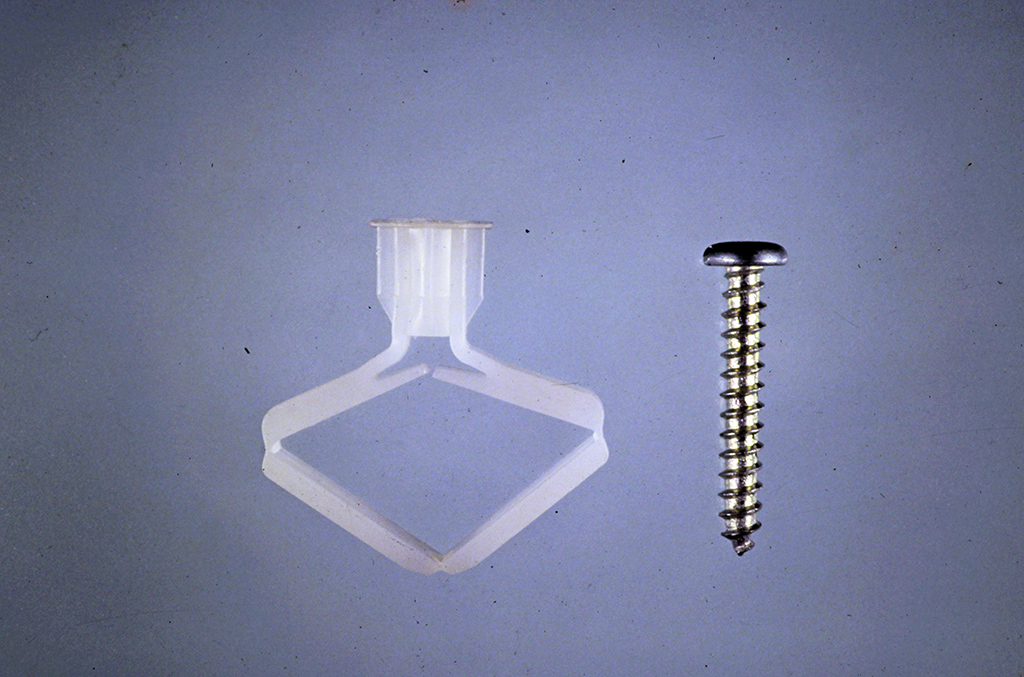

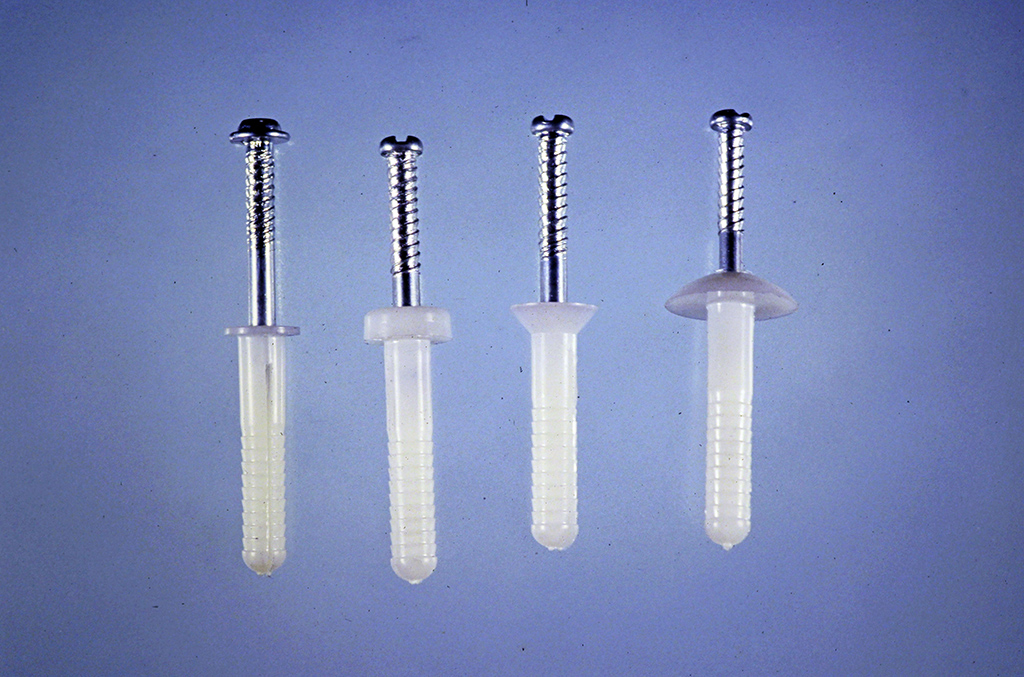

Plastic Hollow Wall Anchor

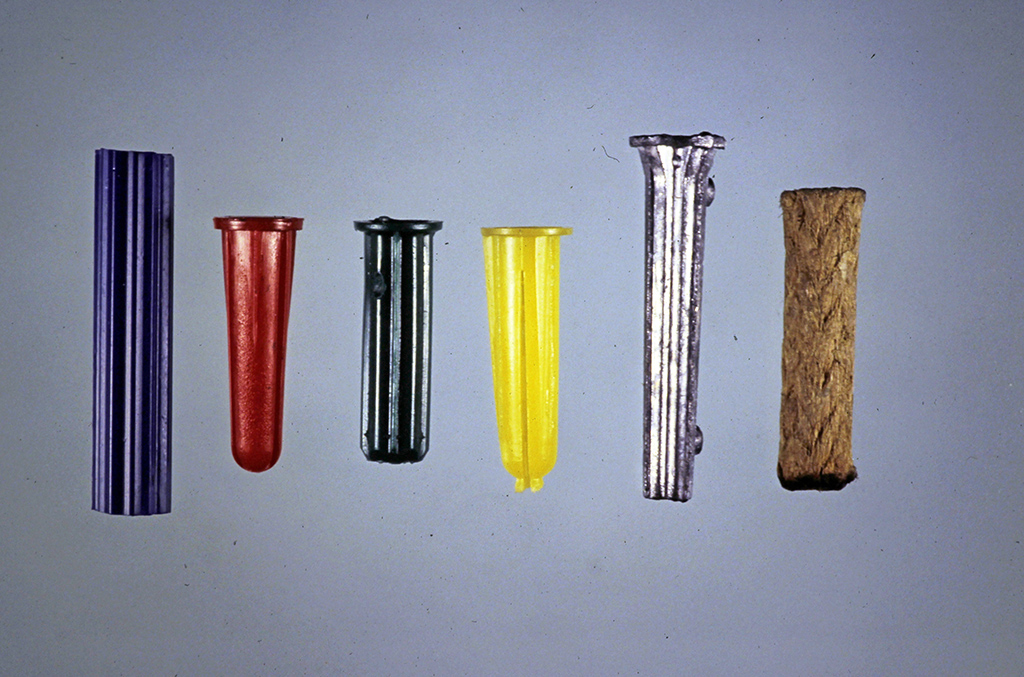

Plastic, Lead & Fiber Screw Anchors

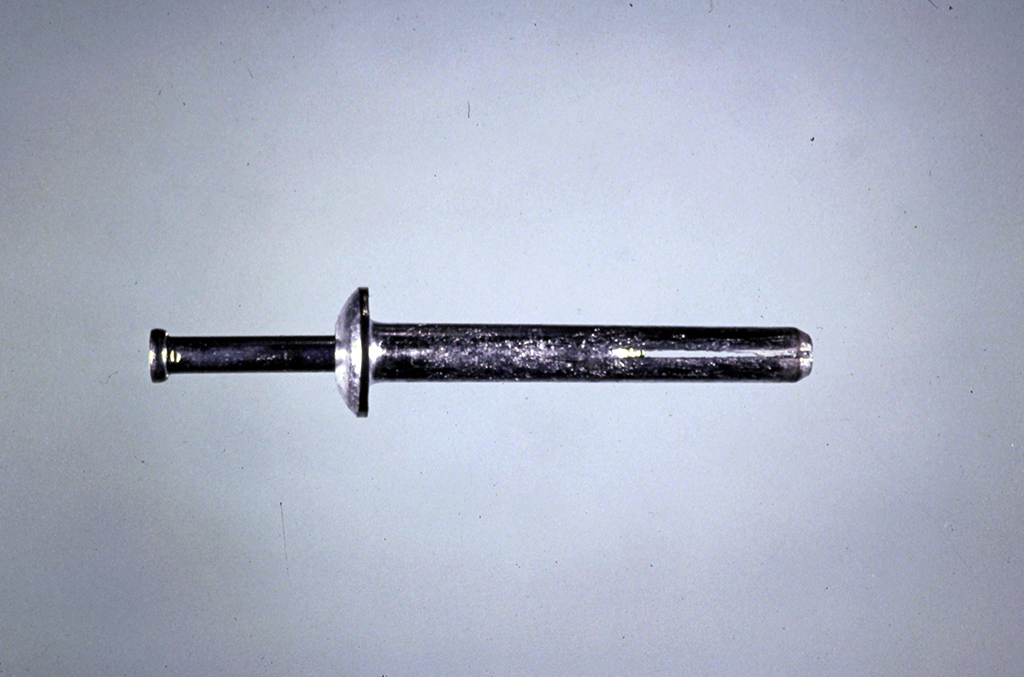

Drive Anchor

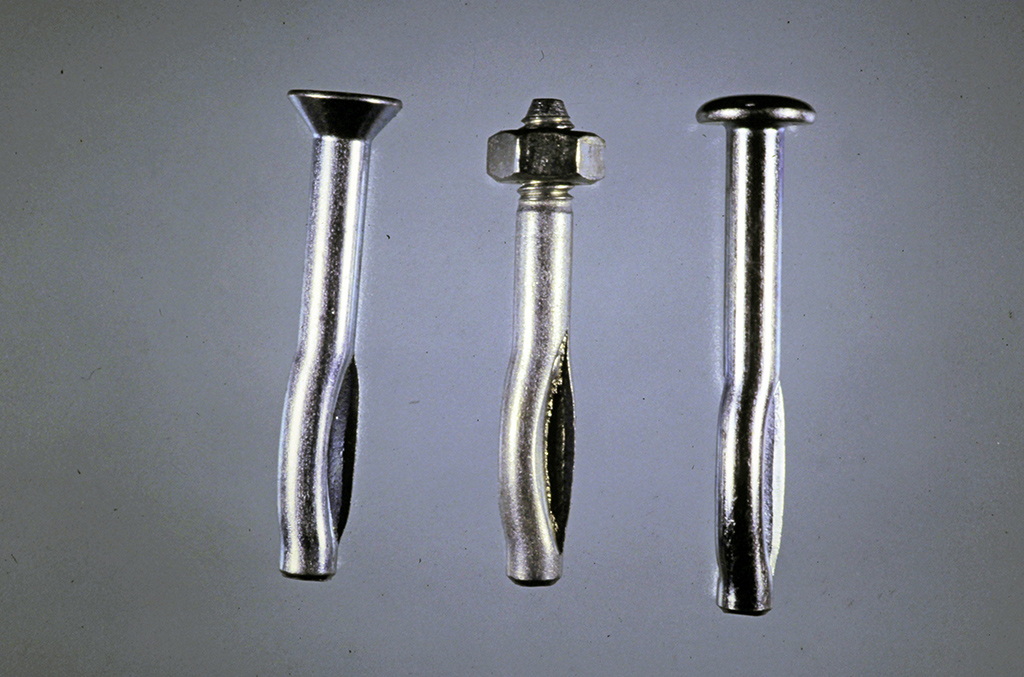

Split Pin Drive Anchors

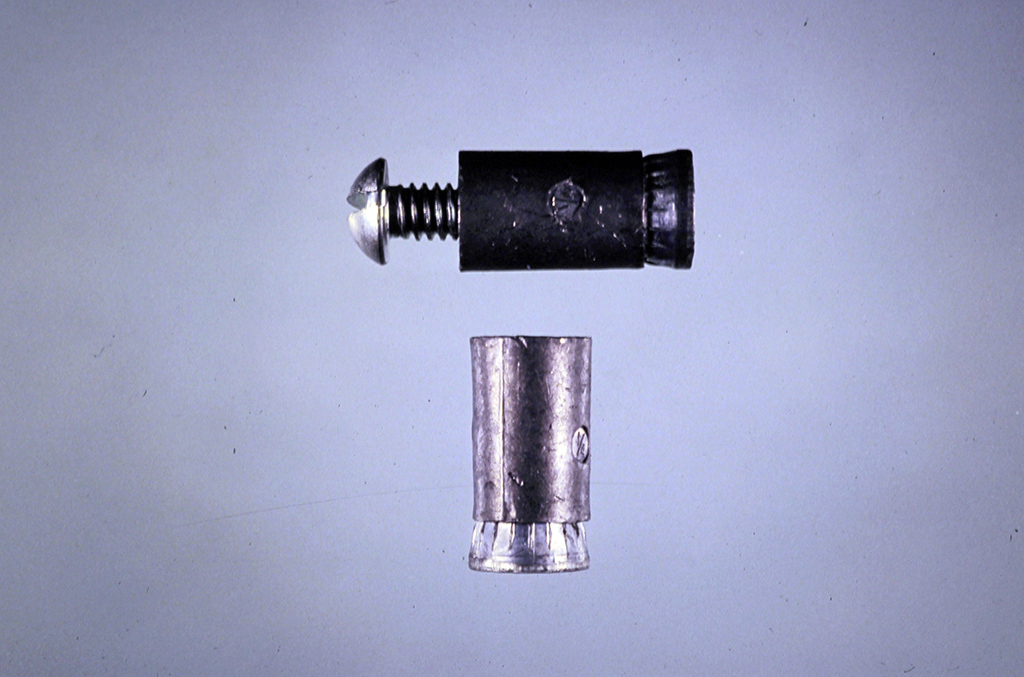

Machine Screw Anchors

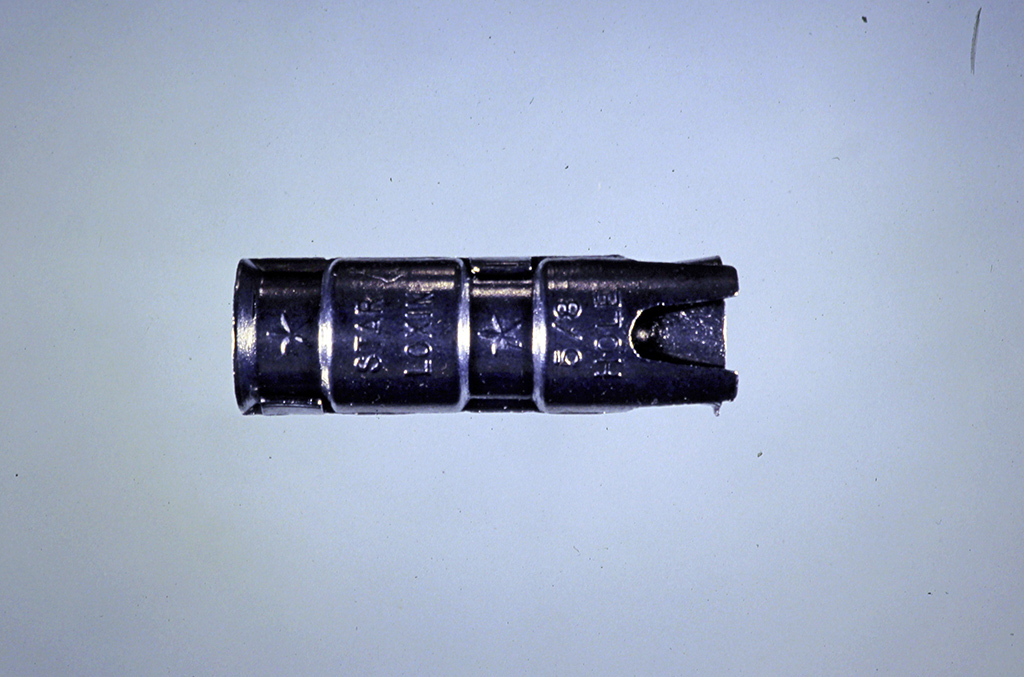

Machine Bolt Anchor

Lag Screw Anchor

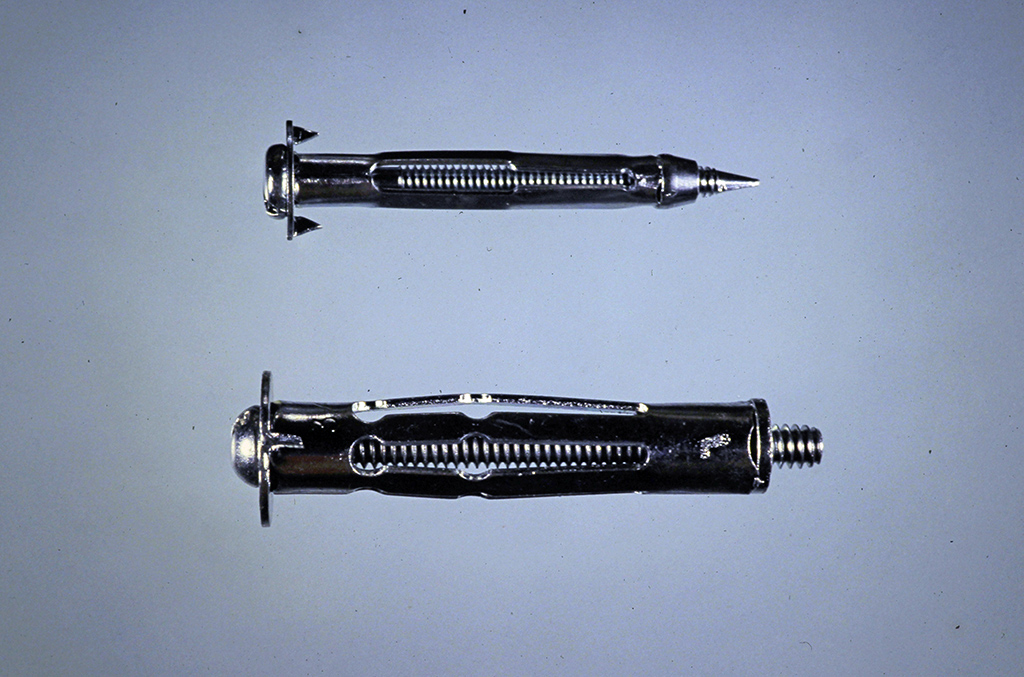

Molly Anchors - Hollow Wall Anchors

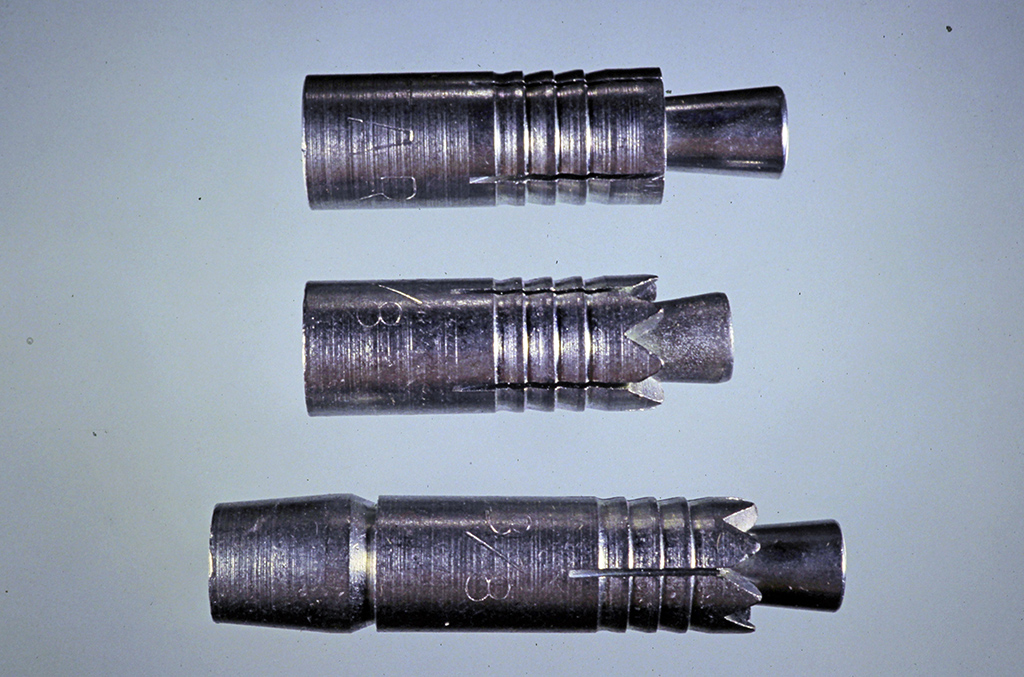

Self-Drilling Anchors

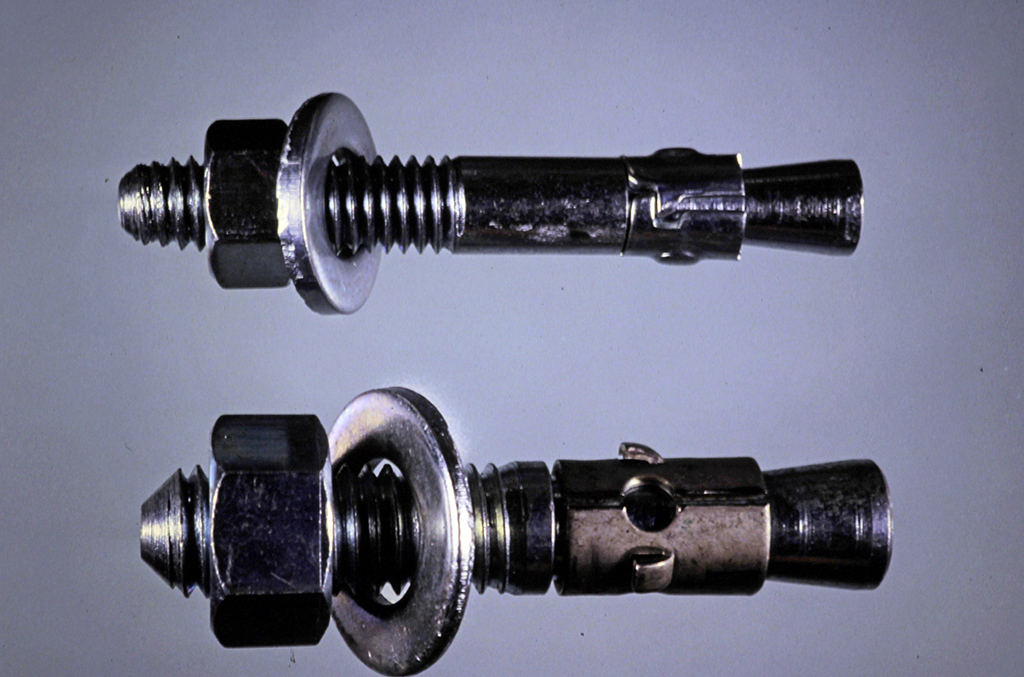

Wedge Anchors

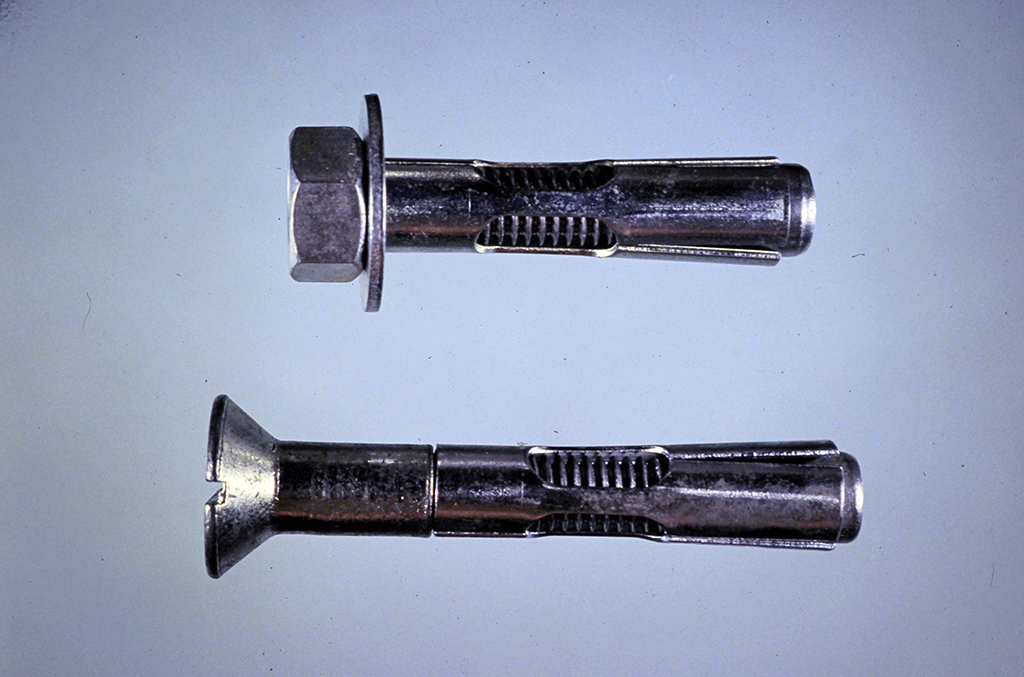

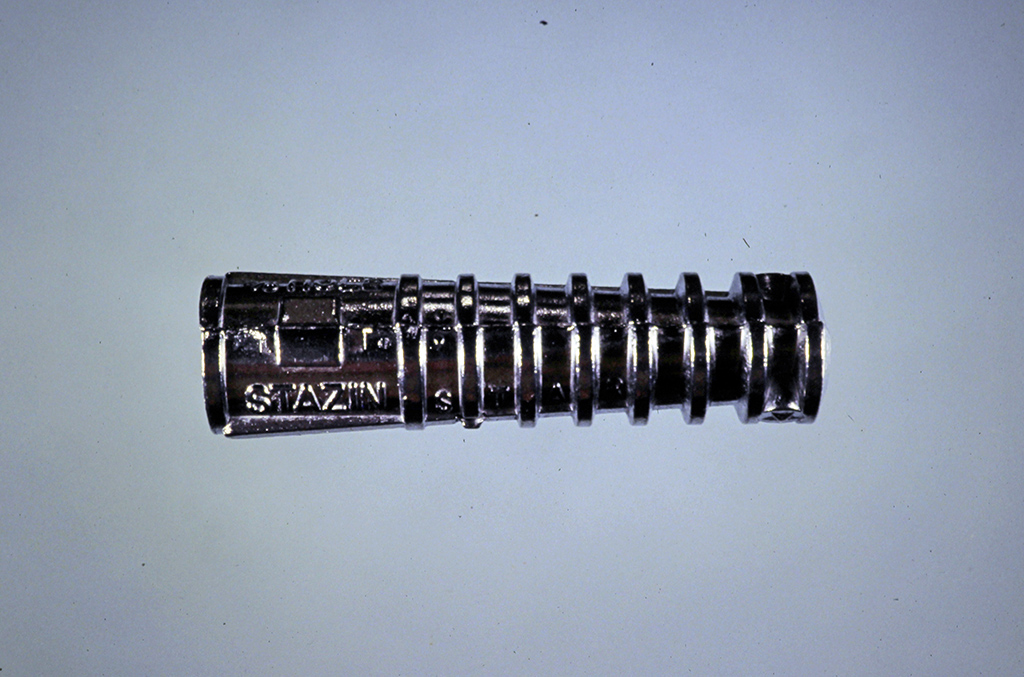

Sleeve Anchors

Nylon Drive Rivet Anchors

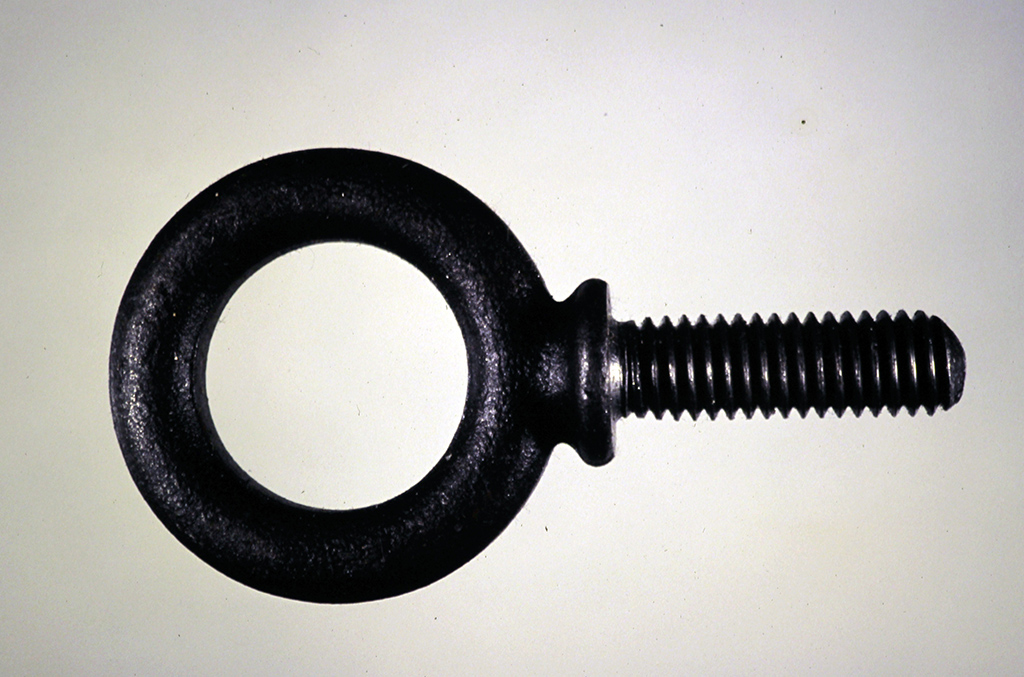

Drop Forged Shoulder Eye Bolt

Bent Wire Eye Bolt

Turnbuckle

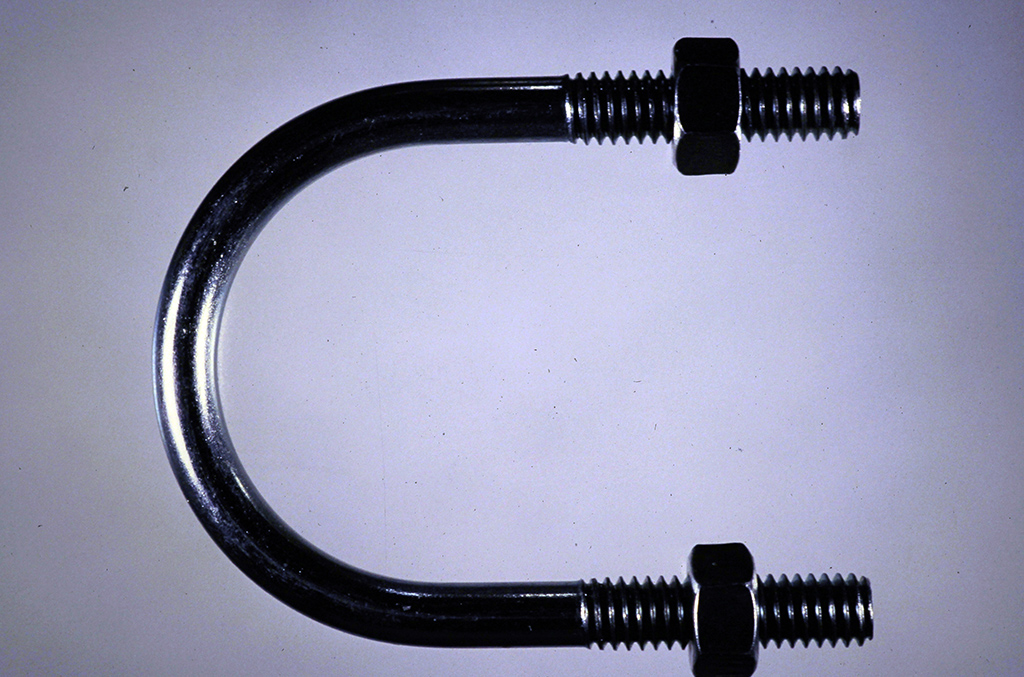

U-Bolt

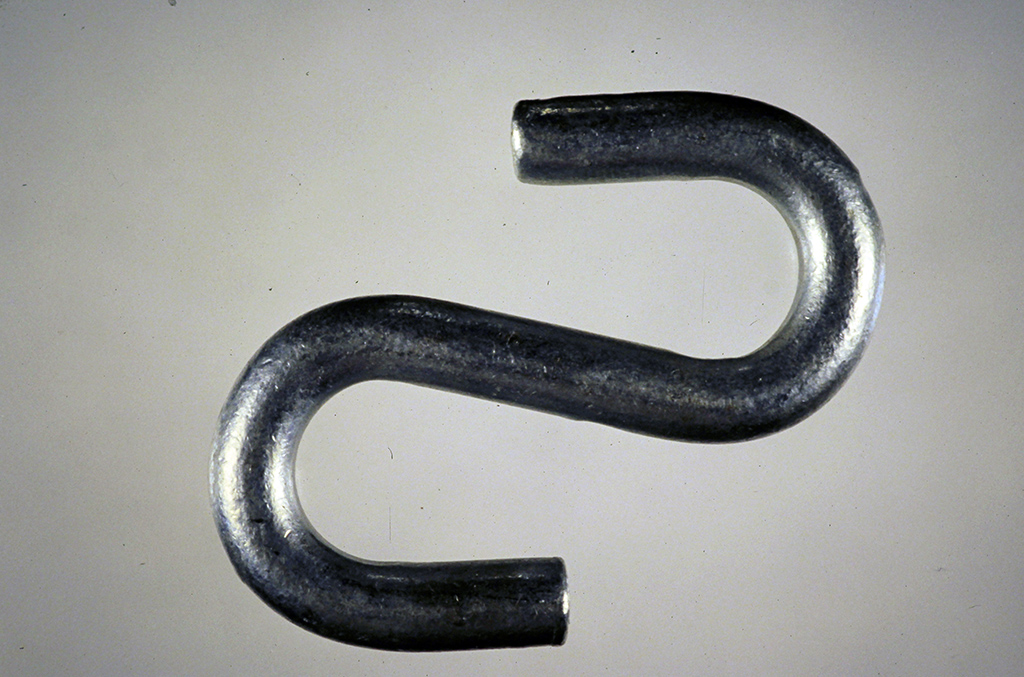

S Hook

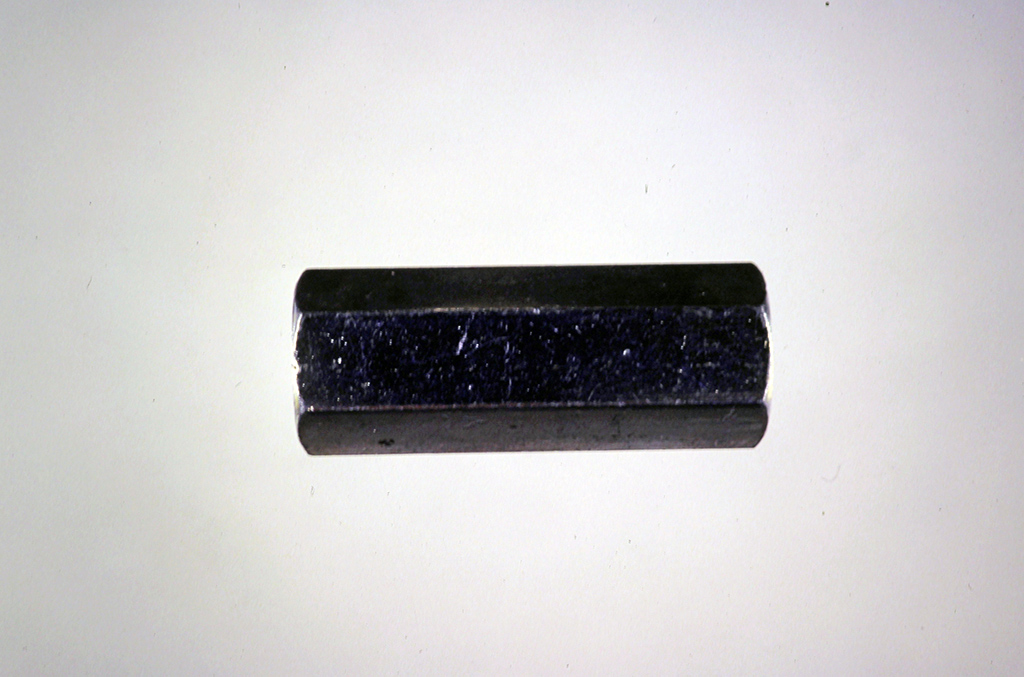

Coupling Nut

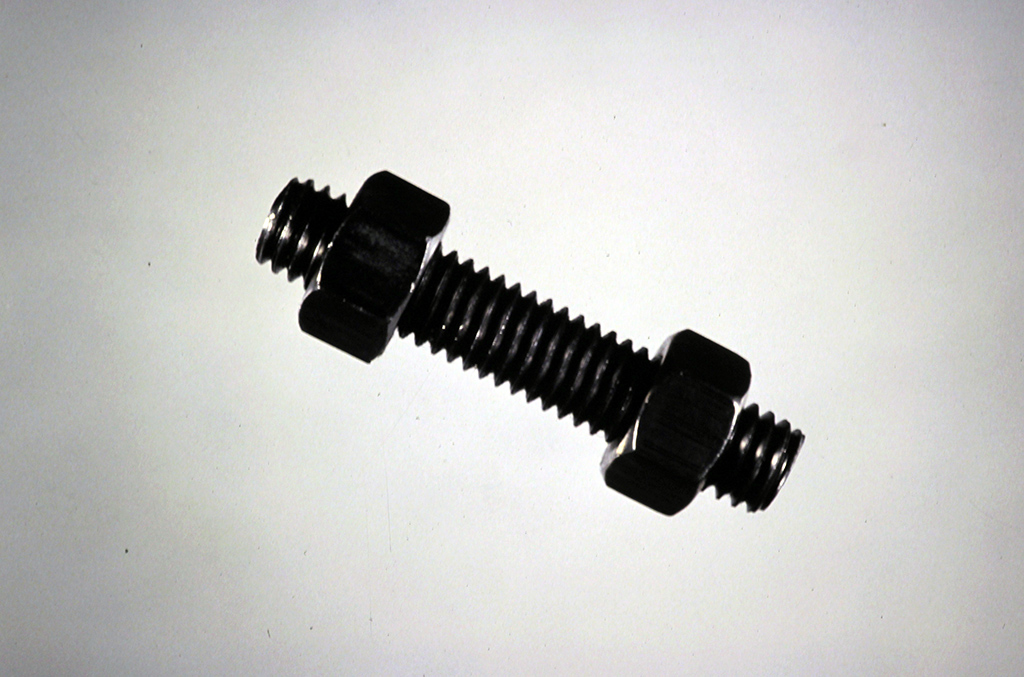

Full Thread Stud (Also represents All-Thread Rod in various foot lengths)

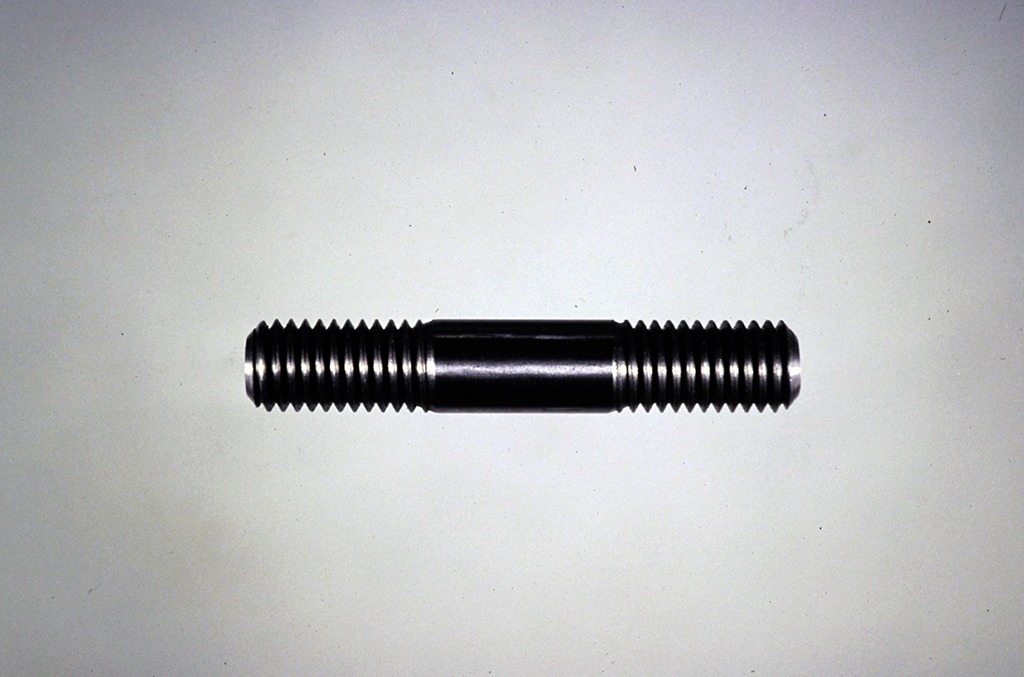

Double End Stud

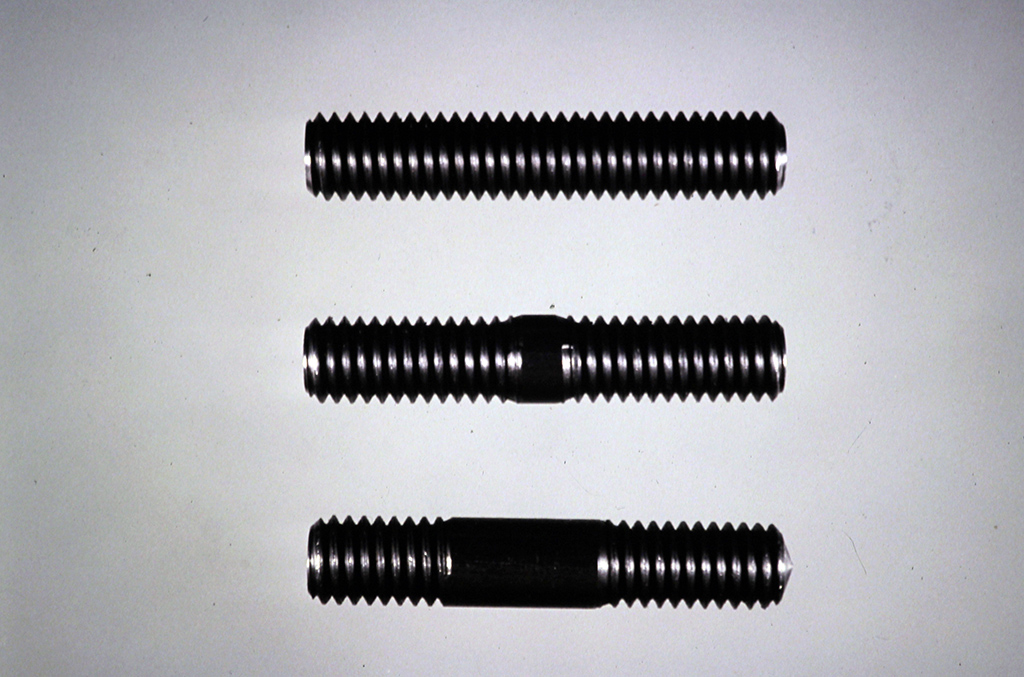

Various types of Studs, Full Thread, Double-End and a 'Special' Stud

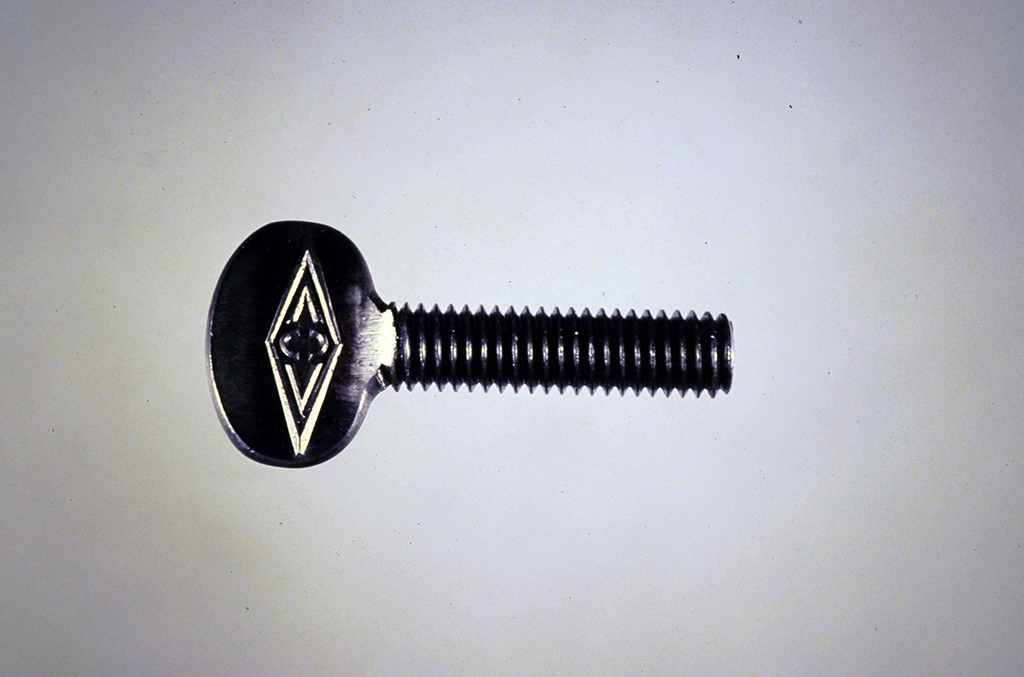

Thumb Screw

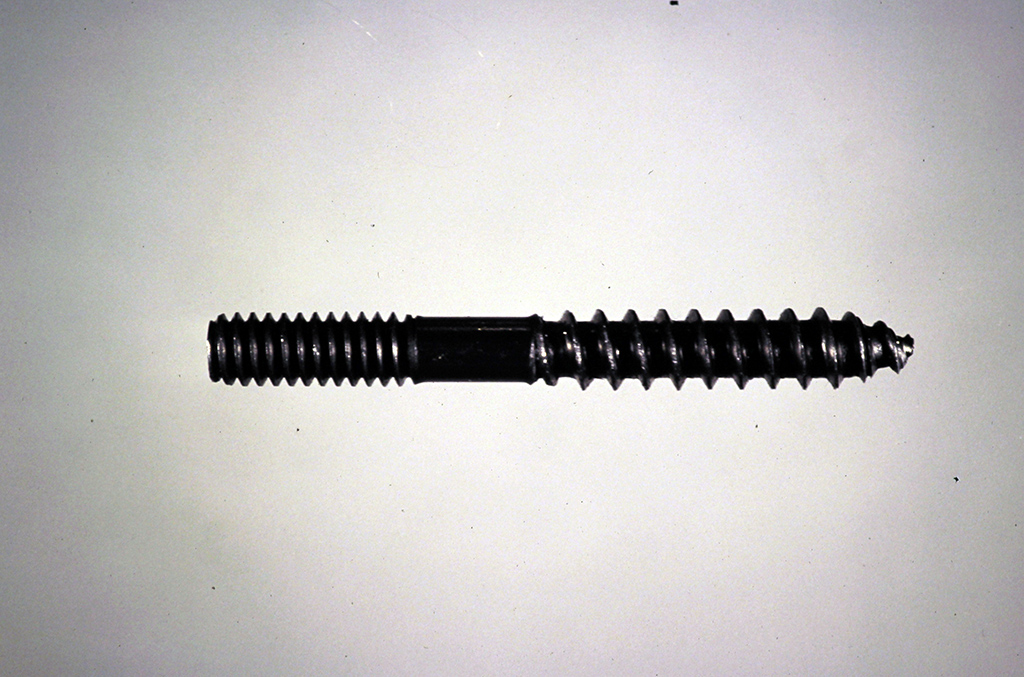

Hanger Bolt

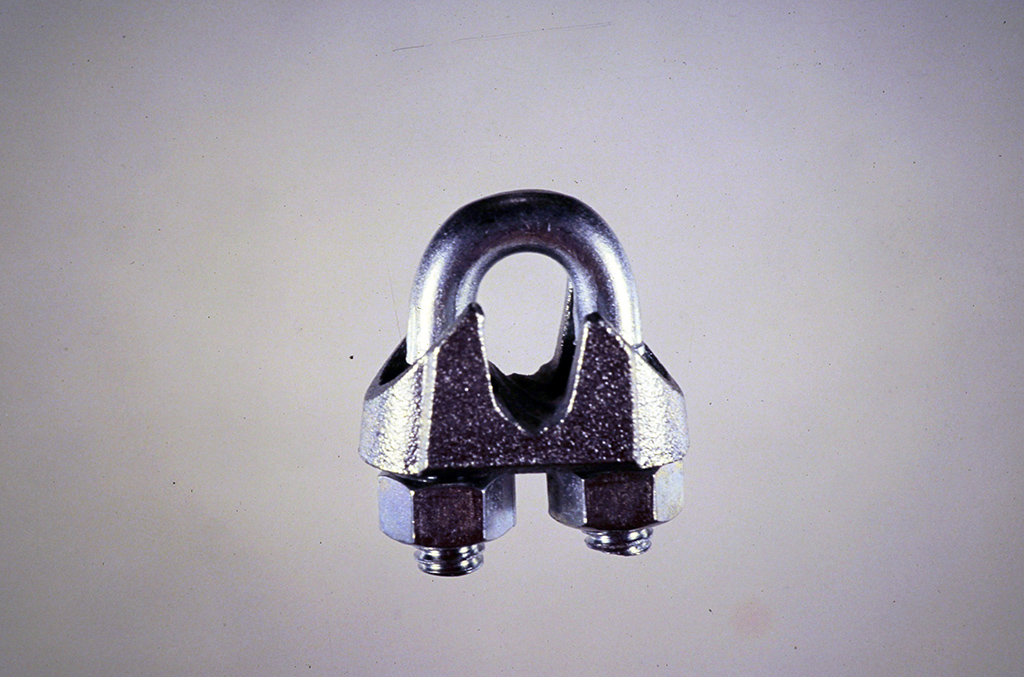

Wire Rope Clip

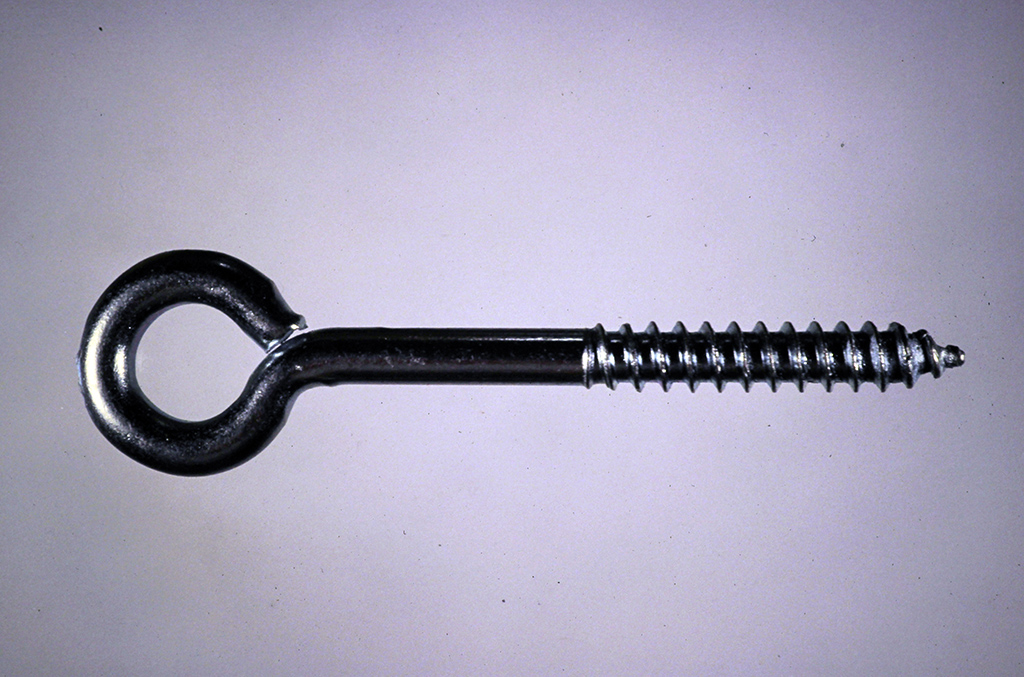

Bend Wire Eye Bolt with Lag Screw Thread

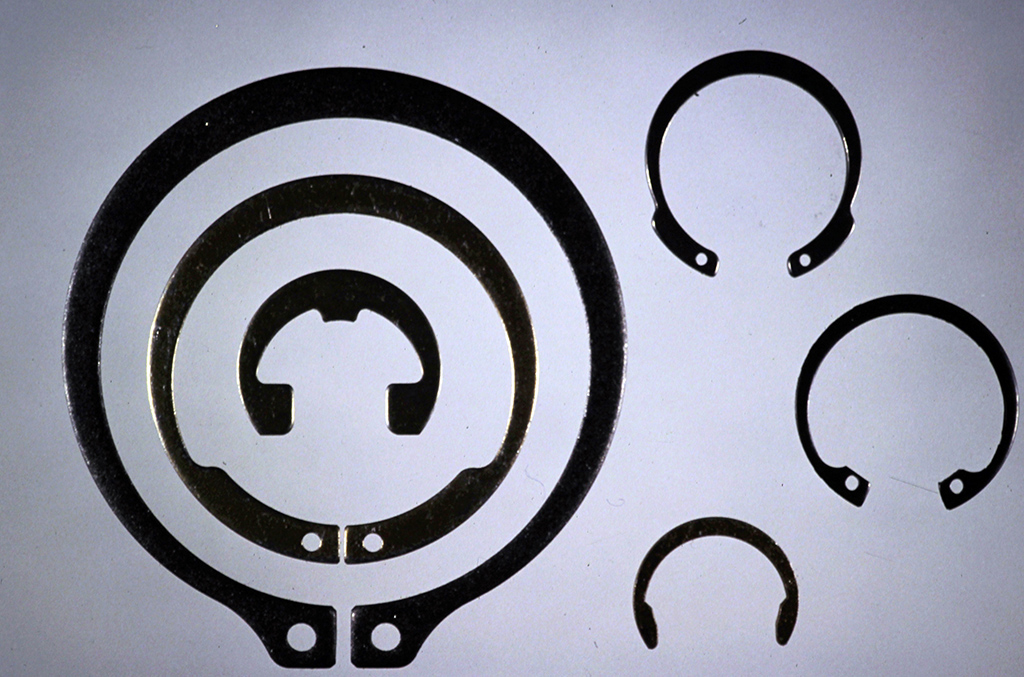

Retaining Rings

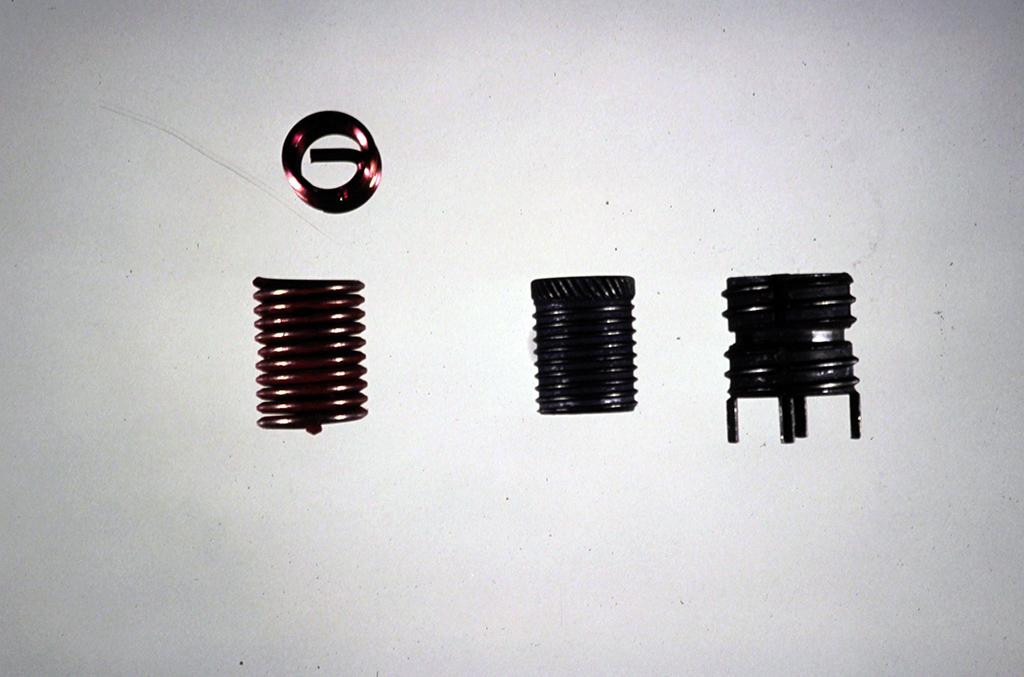

Wire Insert

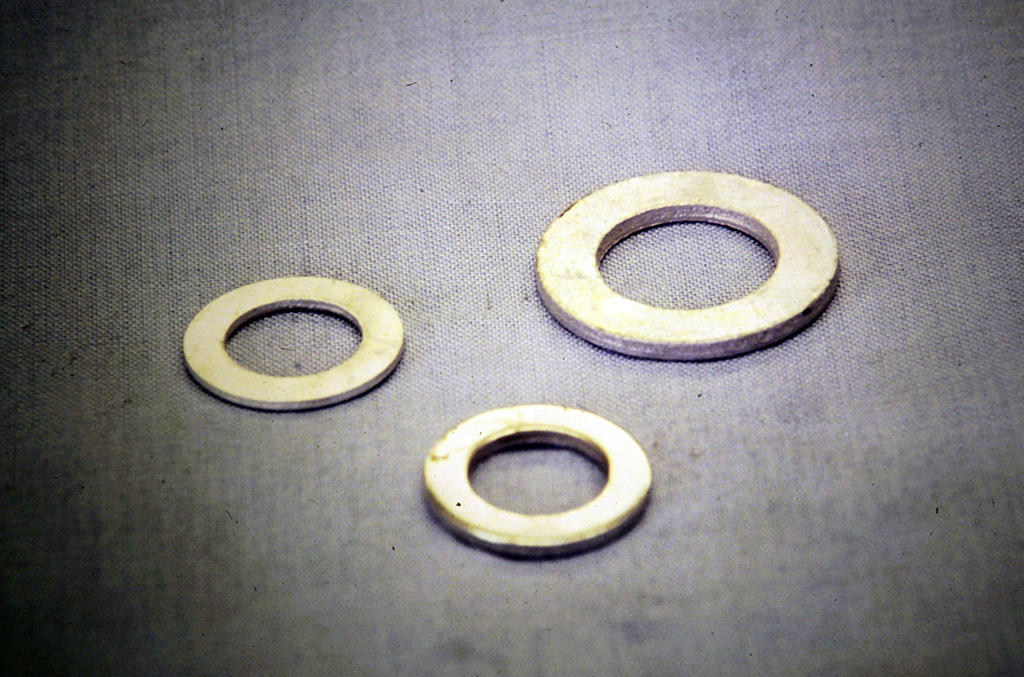

AN Washers as just an introduction to AN-MS-NAS Military Fasteners
